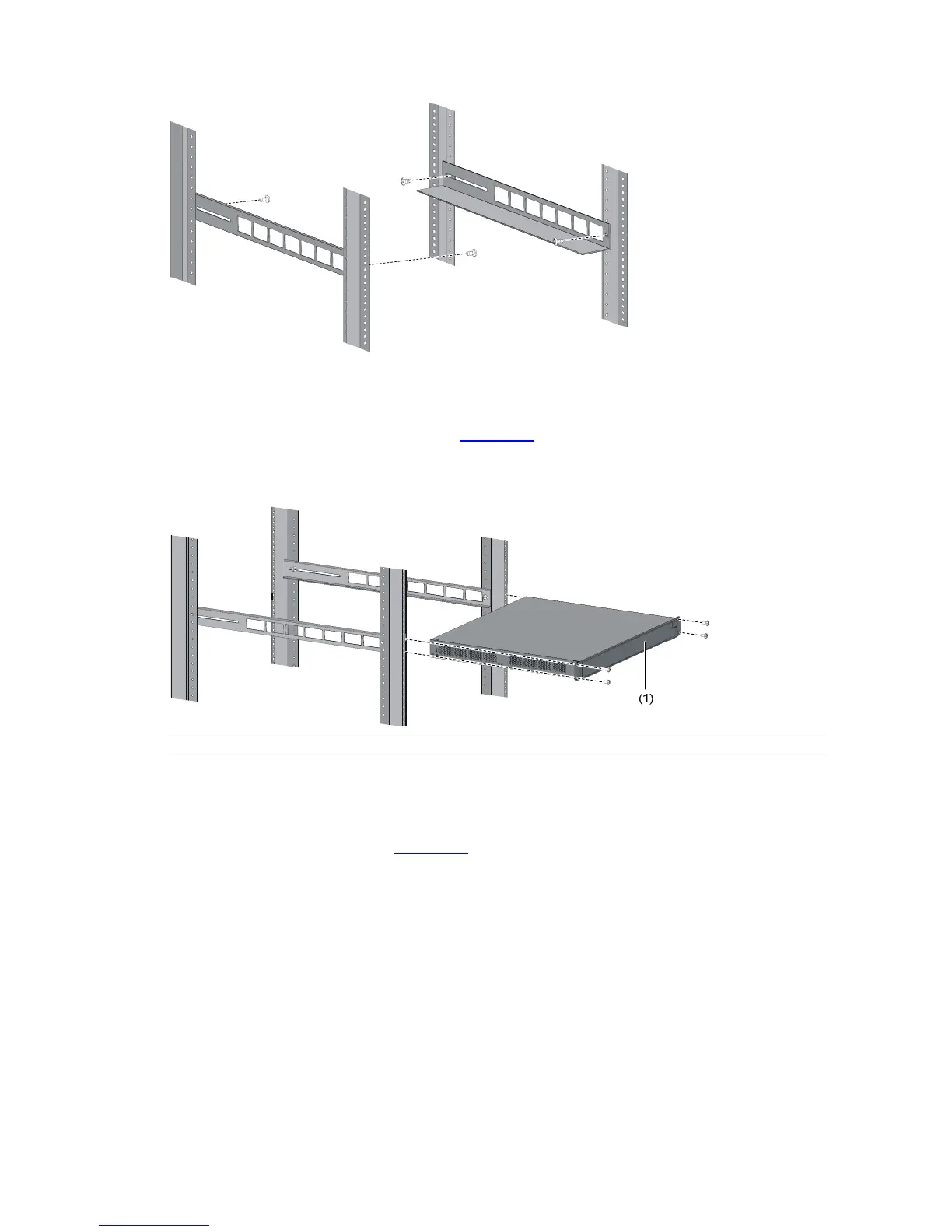

Figure 3-11 Install guide rails
4) Hold the two sides of the switch and slide it gently along the guide rails into the cabinet until it is
located in a proper position, as shown in
Figure 3-12. Ensure that the bottom side of the guide rails
and the switch are in close contact.
Figure 3-12 Install front mounting ears and guide rails
(1) Front panel
5) Fix the other end of front mounting ears to the front brackets of the cabinet with M6 screws and
captive nuts and ensure that the front mounting ears and guide rails have fixed the switch in the
cabinet securely, as shown in
Figure 3-13.
