3-13
Installation procedure
Follow these steps to complete magnet mounting:
1) As shown in
Figure 3-18, use a Phillips screwdriver to pass the countersunk head screw through
the round hole at the center of the permanent magnet, fasten it to a blind nut in the dent of the
switch bottom, and ensure that the permanent magnet and the switch are fastened reliably.
z Remove the cushion, if any, from the dent before installation.
z To ensure the firmness of installation, be sure to use four permanent magnets to secure each
S3100 switch.
2) Attach the magnet-mounted device to the specified location. Take care not to get your fingers stuck
between because the magnetism is very huge.

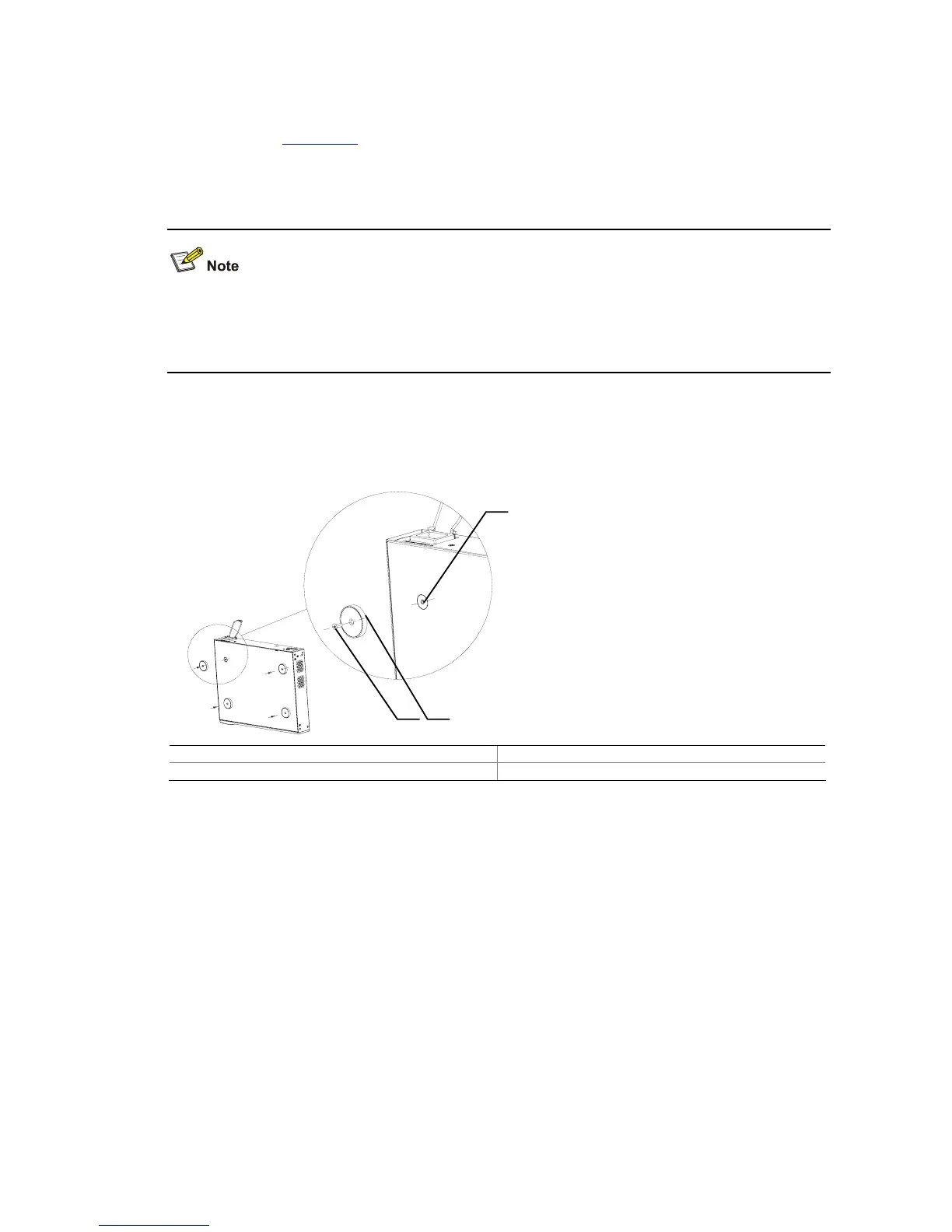

Figure 3-18 Magnet mounting
(1)
(2)(3)
(1) Blind nut in the dent of the switch bottom (2) Permanent magnet
(3) M3*6 countersunk head screw
