H3C S3100V2 Series User Manual

4
S3100V2-26TP-PWR-EI
Front panel

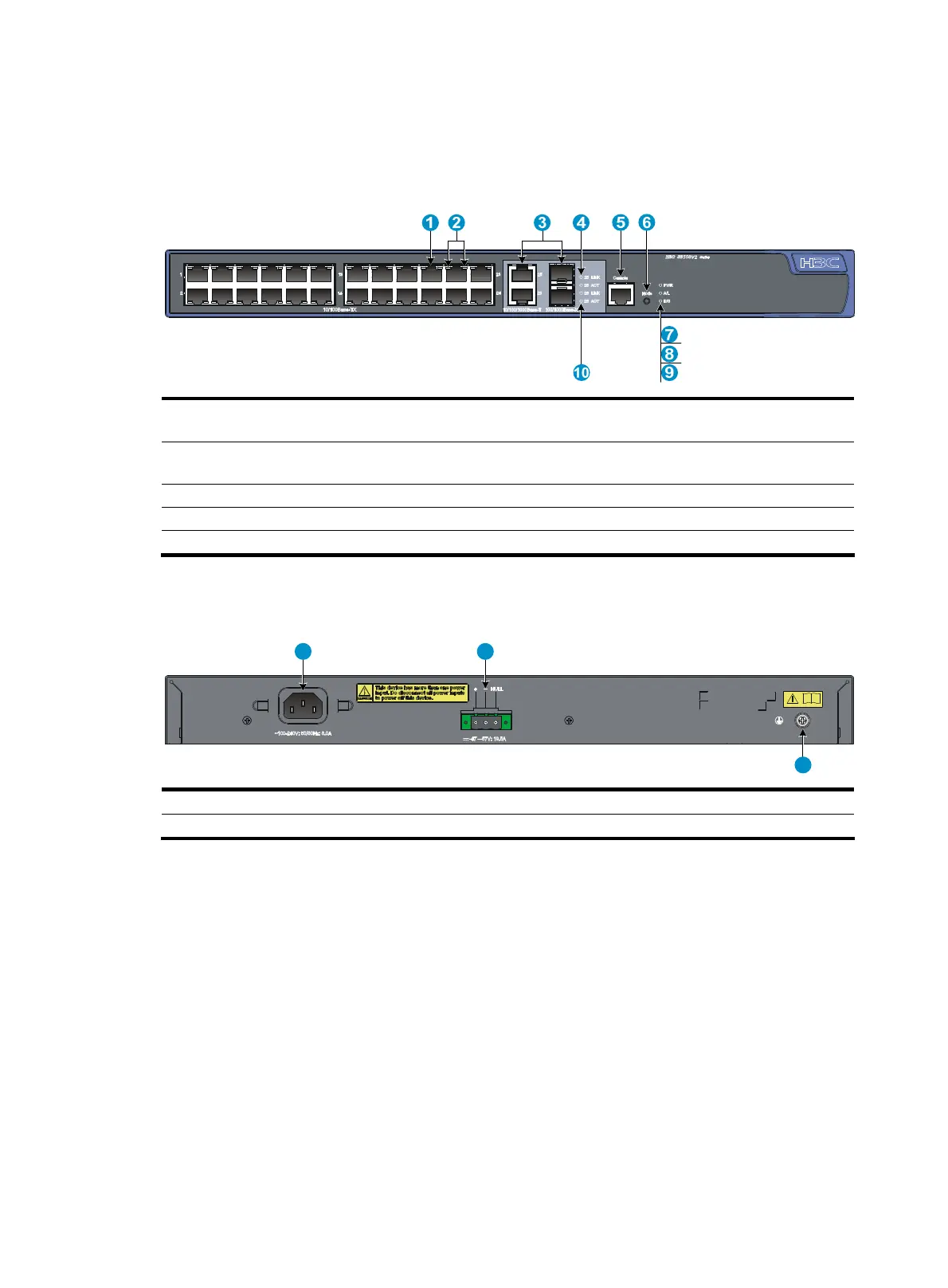

Figure 7 S3100V2-26TP-PWR-EI front panel
(1) 10/100Base-TX Ethernet port (2) 10/100Base-TX Ethernet port LEDs (left: yellow,
right: green)
(3) Combo interface (10/100/1000Base-T Ethernet
port on the left, 100/1000Base-X SFP port on the right)
(4) LINK LED for a combo interface
(5) Console port (6) Port LED mode switching (Mode) button
(7) Power (PWR) LED (8) Port mode (A/L) LED
(9) Port mode (D/S) LED (10) ACT LED for a combo interface
Rear panel
Figure 8 S3100V2-26TP-PWR-EI rear panel
1
2
3
(1) AC-input power receptacle (2) DC-input terminal block
(3) Grounding screw

H3C S3100V2 Series Specifications

General

Series	S3100V2
Category	Switch
Switch Type	Managed
Port Speed	10/100/1000 Mbps
MAC Address Table	16K
Operating Humidity	10% to 90% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
Jumbo Frame	9K bytes
Weight	3.5 kg
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Power Supply	AC 100-240V, 50/60Hz
Ports	8/16/24/48 ports
VLANs	4K
Dimensions (W x D x H)	440 x 260 x 44 mm (24-port model)
