Installing an SFP transceiver module

NOTE:

This section only briefly describes the installation and operation

uidelines for an SFP transceiver module.

For more information, see the

H3C Pluggable SFP/SFP+/XFP Transceiver Modules Installation Guide

Follow these steps to install an SFP transceiver module:

Step1 Wear an ESD-preventive wrist strap and make sure it makes good skin contact and is well grounded.

Step2 Unpack the SFP transceiver module. Do not touch the golden finger of the module.

Step3 Pivot the clasp of the transceiver module up so that it catches a knob on the top of the module.

Step4 Squeezing both sides of the module, gently push the module into the slot until it has firm contact with the

slot (you can feel that the top and bottom spring tabs catch in the slot), as shown in Figure 56.

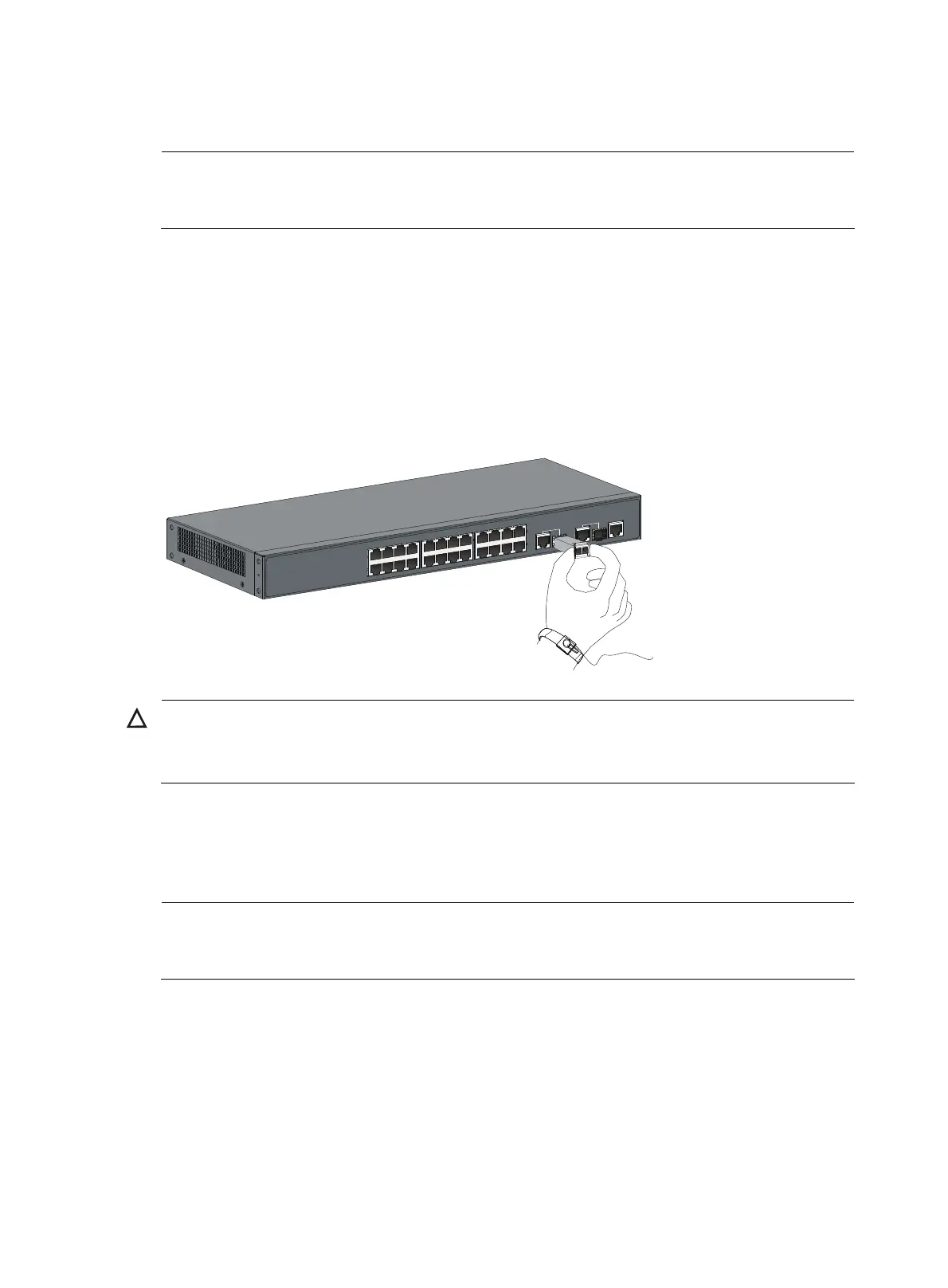

Figure 56 Install an SFP

transceiver module

CAUTION:

• Do not remove the dust plug on the SFP transceiver module before installing it.

• Remove the fibers, if any, from the SFP transceiver module before installing it.

Connecting an optical fiber connector to an SFP transceiver

module

NOTE:

For more information about optical fibers and fiber connectors, see the

H3C Low End Series Ethernet

Switches Pluggable Modules Manual

The SFP transceiver modules of the S3100V2 Switch Series use LC connectors, as shown in Figure 57.
