H3C S3100V2 Series User Manual

2
Rear panel

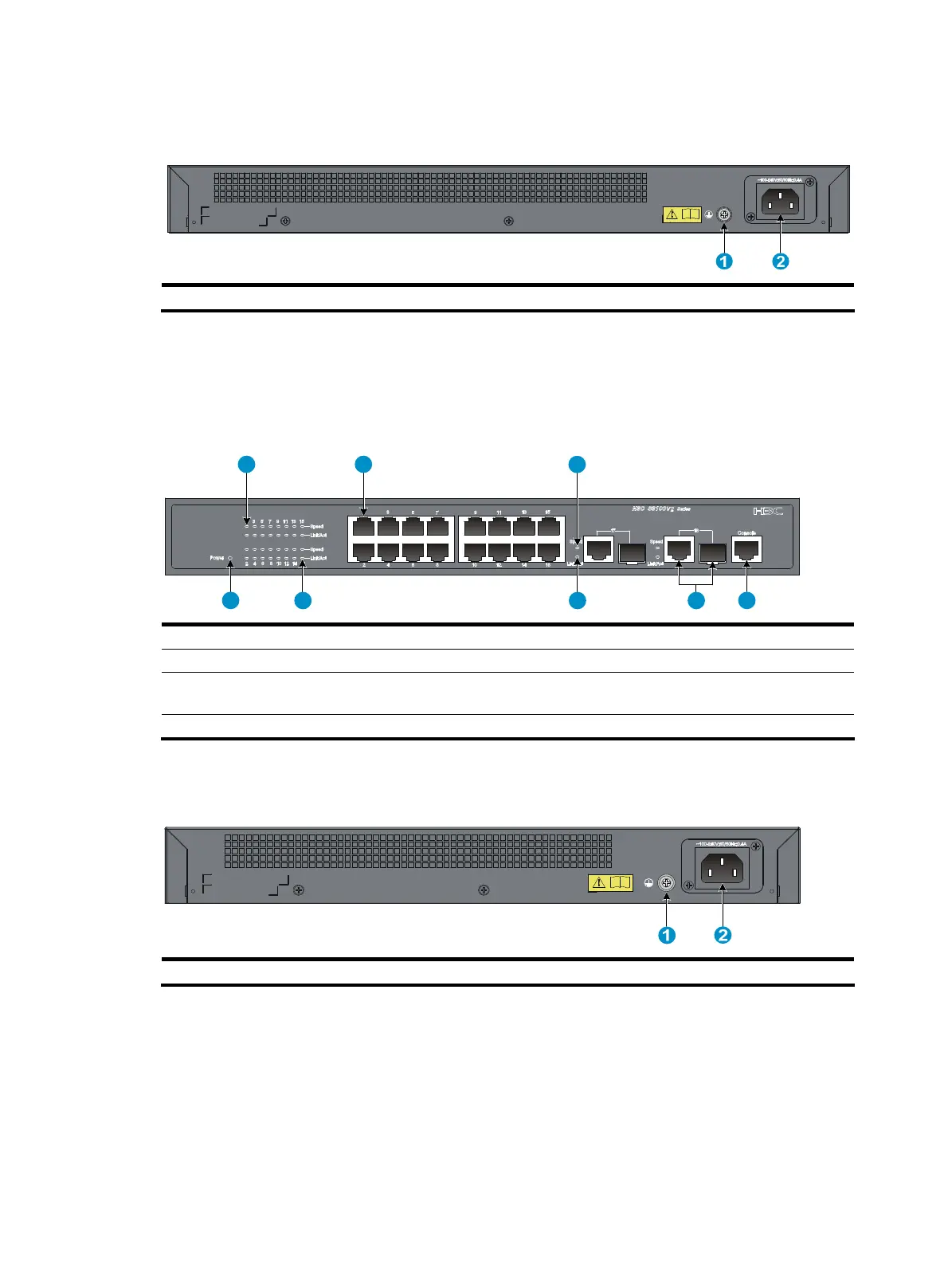

Figure 2 S3100V2-26TP-SI/S3100V2-26TP-EI rear panel
(1) Grounding screw (2) AC-input power receptacle
S3100V2-16TP-SI/S3100V2-16TP-EI
Front panel
Figure 3 S3100V2-16TP-SI/S3100V2-16TP-EI front panel
1
2
3
4
567
8
(1) Speed LED for a 10/100Base-TX Ethernet port (2) 10/100Base-TX Ethernet ports
(3) Speed LED for a combo interface (4) Console port
(5) Combo interface (10/100/1000Base-T Ethernet port
on the left, 100/1000Base-X SFP port on the right)
(6) Link/Act LED for a combo interface
(7) Link/Act LED for a 10/100Base-TX Ethernet port (8) Power LED
Rear panel
Figure 4 S3100V2-16TP-SI/S3100V2-16TP-EI rear panel
(1) Grounding screw (2) AC-input power receptacle

H3C S3100V2 Series Specifications

General

Series	S3100V2
Category	Switch
Switch Type	Managed
Port Speed	10/100/1000 Mbps
MAC Address Table	16K
Operating Humidity	10% to 90% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
Jumbo Frame	9K bytes
Weight	3.5 kg
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Power Supply	AC 100-240V, 50/60Hz
Ports	8/16/24/48 ports
VLANs	4K
Dimensions (W x D x H)	440 x 260 x 44 mm (24-port model)
