69

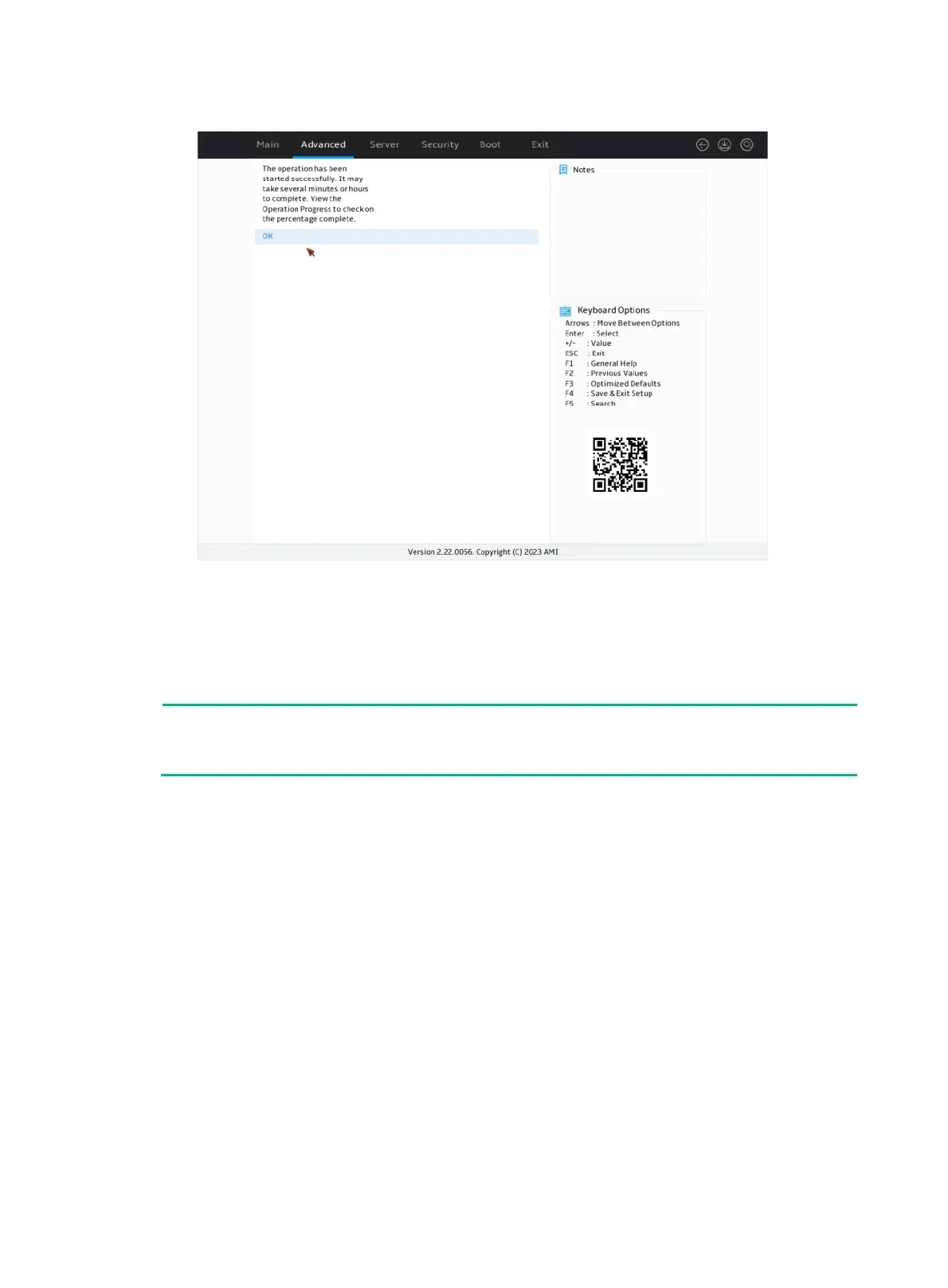

Figure 124 Completing the operation
Expanding a RAID array
This task allows you to expand the RAID array capacity by setting the percentage of available
logical drive capacity for availability purposes.
LSI 9540&9560 controller supports migration and scale-up in UEFI mode or the operating
system only when the RAID level is 0, 1, 5, or 6.
To expand a RAID array:
1. On the storage controller configuration screen as shown in Figure 125, select Virtual Drive
Management and press Enter.
