73
LSI 9540&9560 controller supports migration and scale-up in UEFI mode or the operating
system only when the RAID level is 0, 1, 5, or 6.
To migrate the RAID level:
1. On the storage controller configuration screen as shown in Figure 131, select Virtual Drive
Management and press Enter.

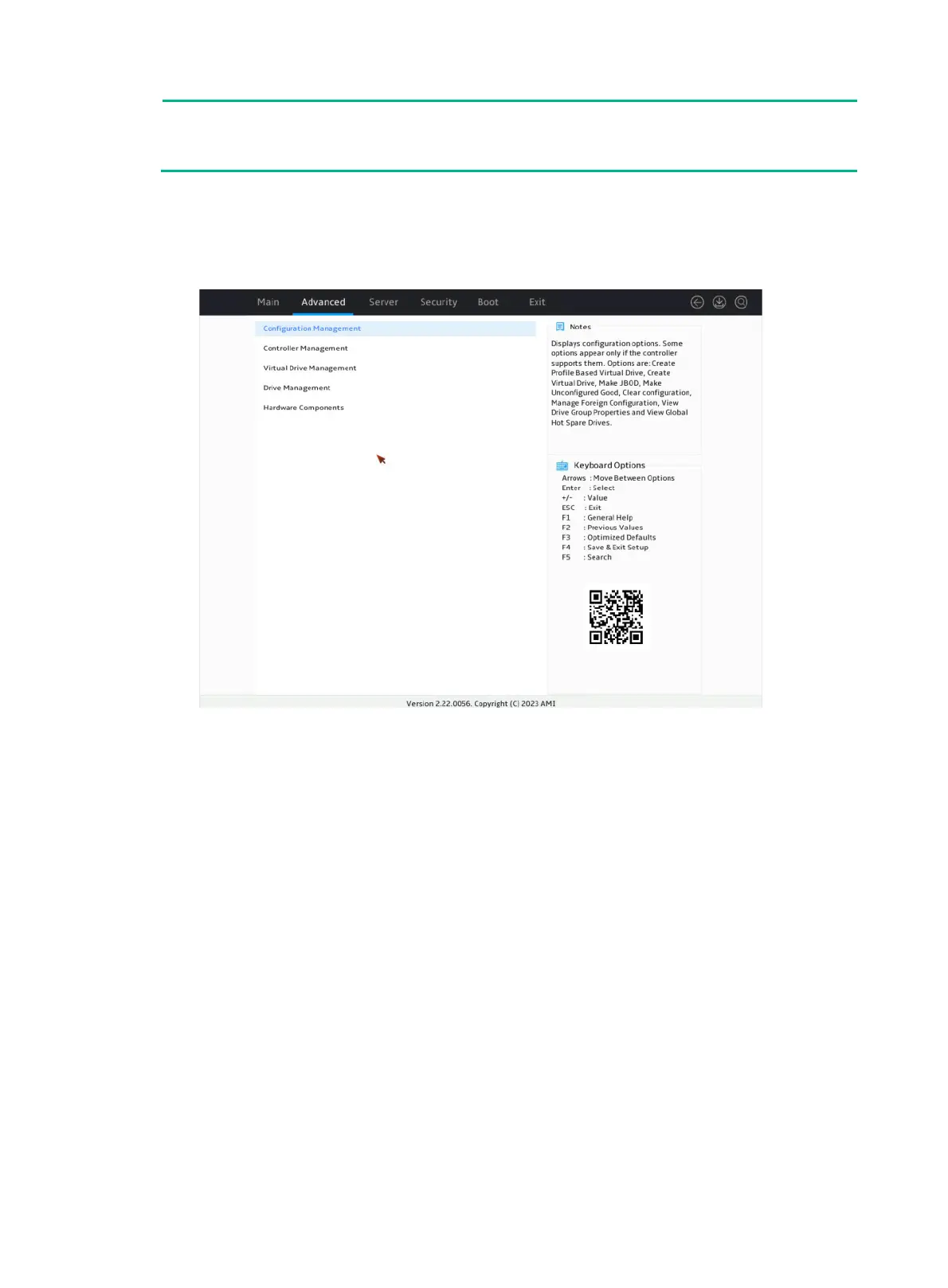

Figure 131 Storage controller configuration screen
2. On the screen as shown in Figure 132, select the target drive and press Enter.
To Next Page
