H3C UniServer R4300 G6 - Page 342

111

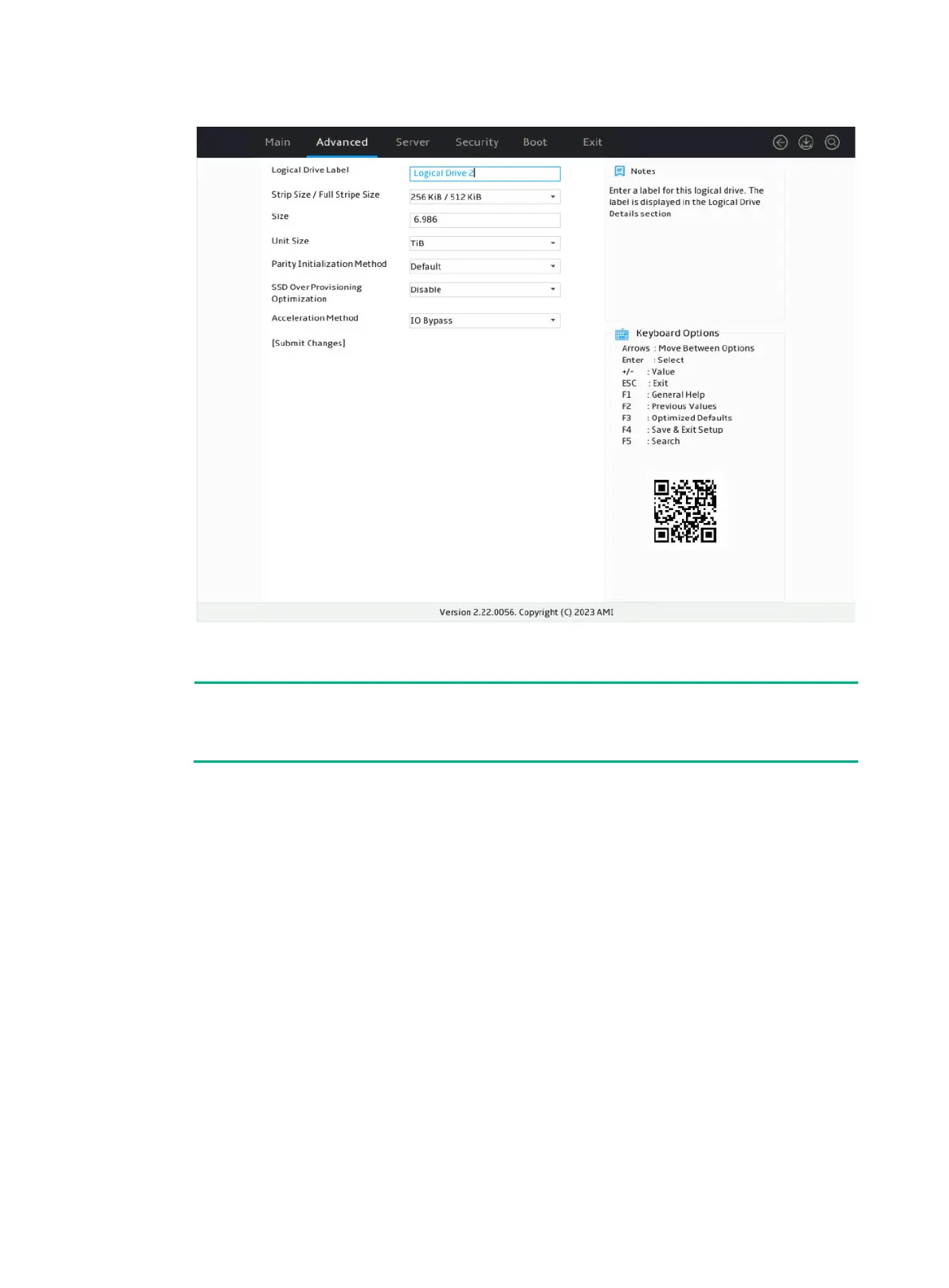

Figure 160 Configuring the related parameters
6. On the screen as shown in Figure 161, select IO Bypass and complete other RAID settings.
NOTE:
•
This feature is only available when you selecting SSDs to build a RAID.
• If you set Logical Drive Label to aacraid, IO Bypass is not supported.
