Configuring RAID arrays in legacy mode
This section describes how to configure RAID arrays through a RAID-MARVELL-M.2 storage
controller in legacy mode. For more information about how to access the BIOS setup utility and set
the boot mode to legacy, see the BIOS user guide for the server.
The BIOS screens might vary by BIOS version and the screens used in this section are for
illustration only.
Controller configuration tasks at a glance
To configure controller settings in legacy mode, perform the following tasks:
Accessing the storage controller configuration screen.
Configuring RAID
Viewing physical drive information
Viewing logical drive information
Accessing the storage controller configuration screen
1. During server POST as shown in Figure 24, press Ctrl+M.
For how to navigate screens and modify settings, see the operation instructions at the bottom
of the screen.

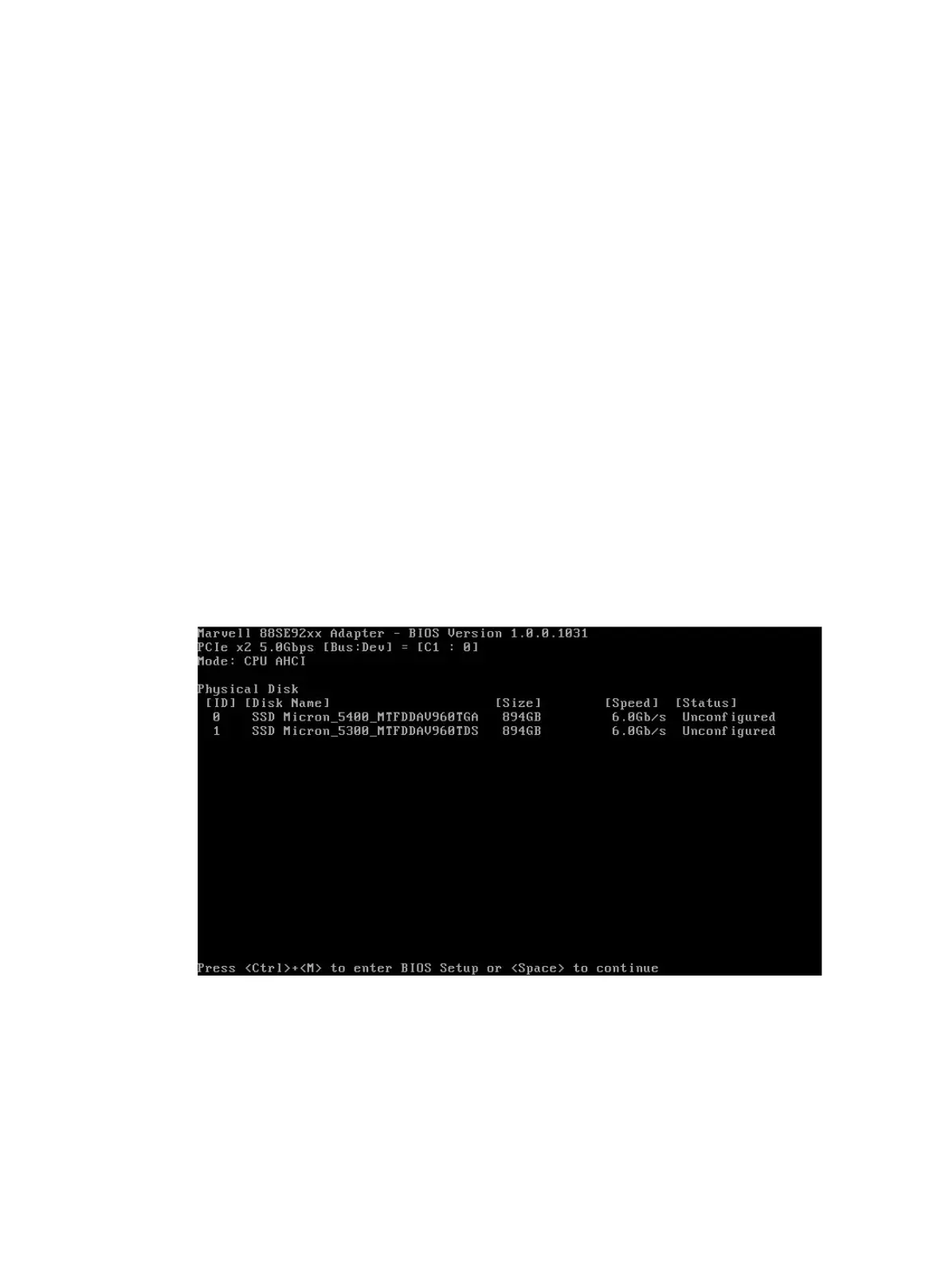

Figure 24 Pressing Ctrl+M
The storage controller configuration screen opens as shown in Figure 25.
