18

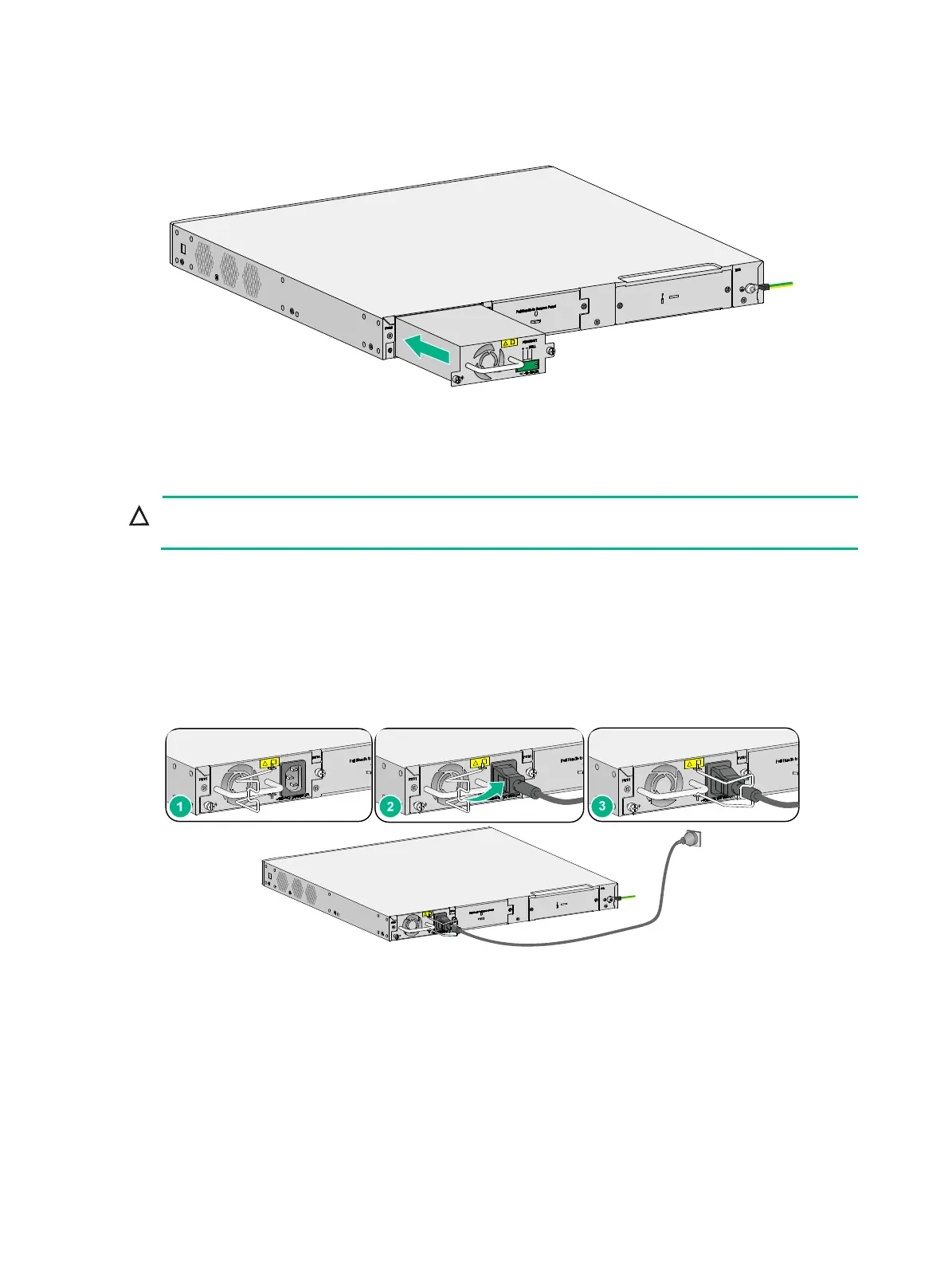

Figure 15 Installing a DC power module (WX3540H)
Connecting an AC power cord
CAUTION:
Before powering on the device, connect the grounding cable of the device.
To connect an AC power cord:
1. Pivot the bail latch leftwards.
2. Connect one end of the AC power cord to the AC-input power receptacle on the device.
3. Pivot the bail latch rightwards to secure the power cord.
4. Connect the other end of the AC power cord to the AC power source.
Figure 16 Connecting an AC power cord (WX3540H)
Connecting a DC power cord
1. Use a flat-blade screwdriver to remove the protection cover from the DC power module.
2. Correctly insert the DC plug into the DC power receptacle.
3. Use a flat-blade screwdriver to fasten the screws on the DC plug.
4. Connect the other end of the DC power cord to the DC power source.
