H3C WX3500H Series Installation Guide

32
WX3540H

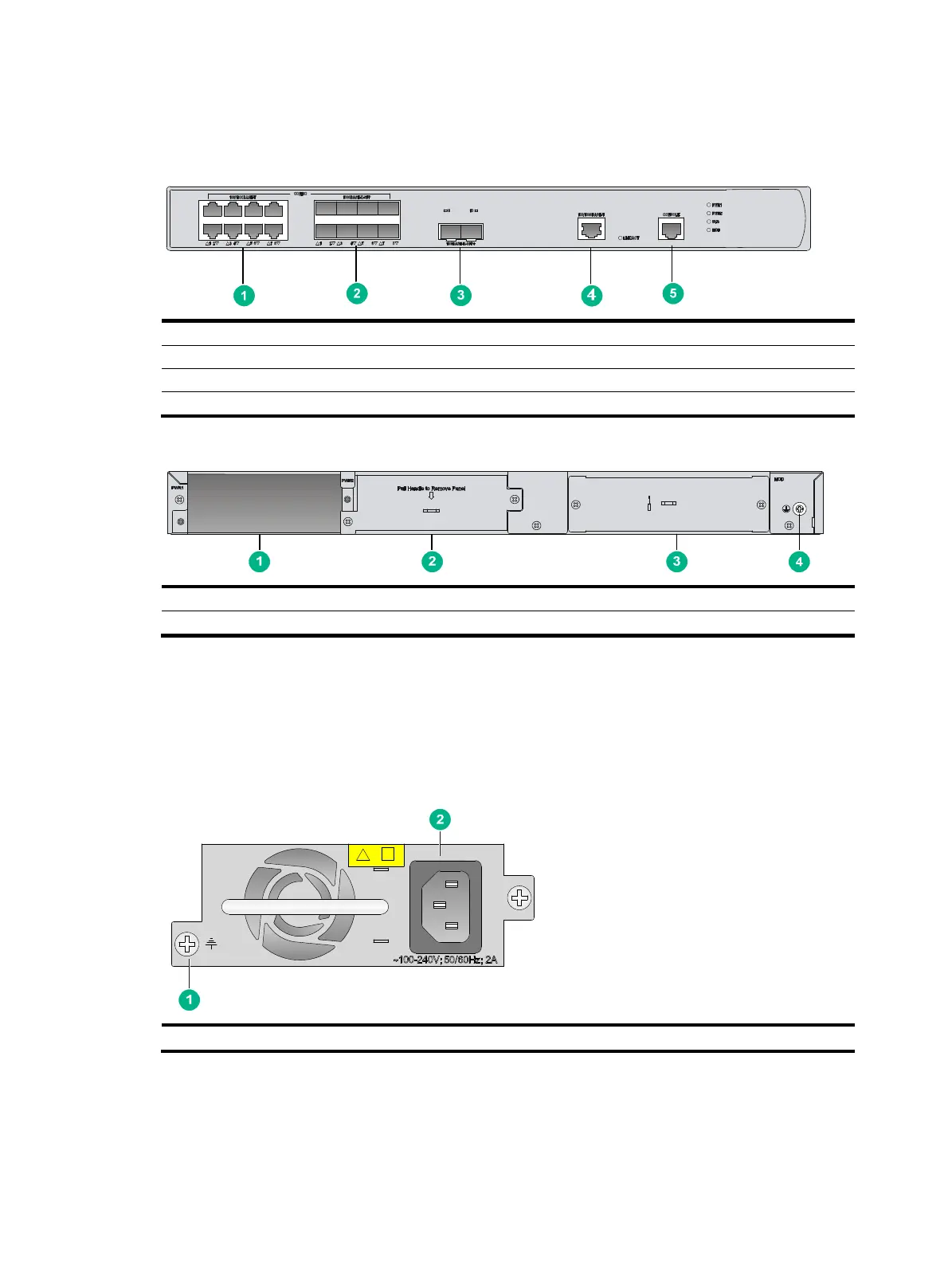

Figure 24 Front panel
(1) 100/1000BASE-T autosensing Ethernet copper ports 1 through 8 (combo interfaces)
(2) 100BASE-FX/1000BASE-X SFP ports 1 through 8 (combo interfaces)
(3) 10GBASE-R SFP+ ports 9 and 10 (4) 100/1000BASE-T management Ethernet port
(5) Console port
Figure 25 Rear panel
(1) Power module slot 1 (PWR1) (2) Power module slot 2 (PWR2)
(3) Expansion slot (4) Grounding screw
Power module views
AC power module
Figure 26 AC power module
(1) Captive screw (2) Power receptacle
