10
1. Place the device upside down. Clean the recessed areas on the chassis bottom.
2. Attach the four rubber feet to the recessed areas on the chassis bottom.
3. Place the device on the workbench with the upside up. Make sure the four rubber feet stand
firmly on the workbench.

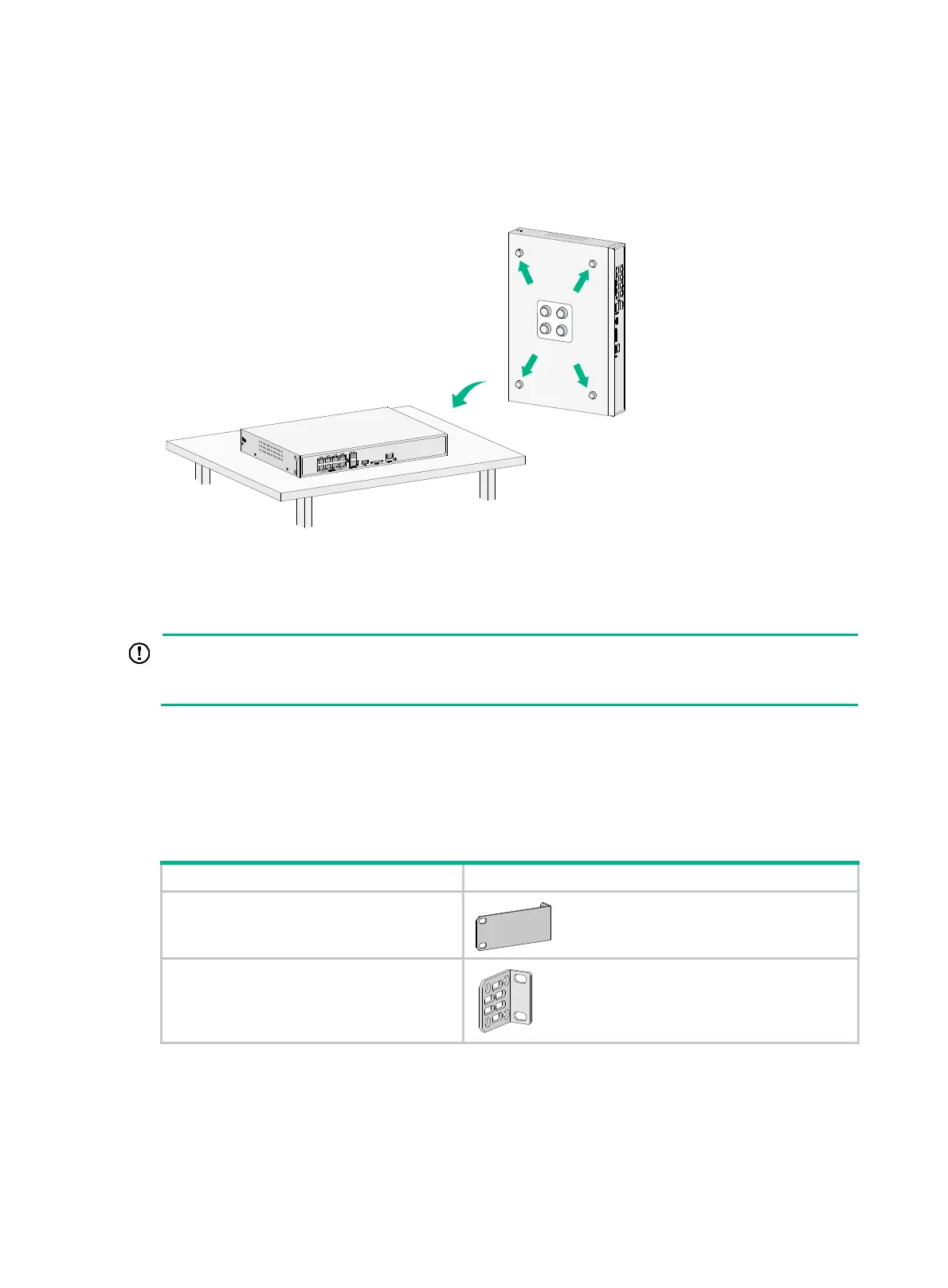

Figure 5 Mounting the device on a workbench (WX3508H)
Installing the device in a 19-inch rack
IMPORTANT:
Keep a minimum distance of 1 U (44.45 mm, or 1.75 in) between devices in a rack for good heat
dissipation.
Mounting brackets
The available mounting brackets vary by device model. Table 6 describes the mounting brackets
available for the access controllers.
Table 6 Mounting brackets available for the access controllers
Device model Mounting bracket
WX3508H
WX3510H
WX3520H
WX3540H
Mounting the device in a rack
1. Attach cage nuts to the front rack posts:
a. Wear the ESD wrist strap and make sure the rack is sturdy and is reliably grounded.
