H3C WX3500H Series Installation Guide

31

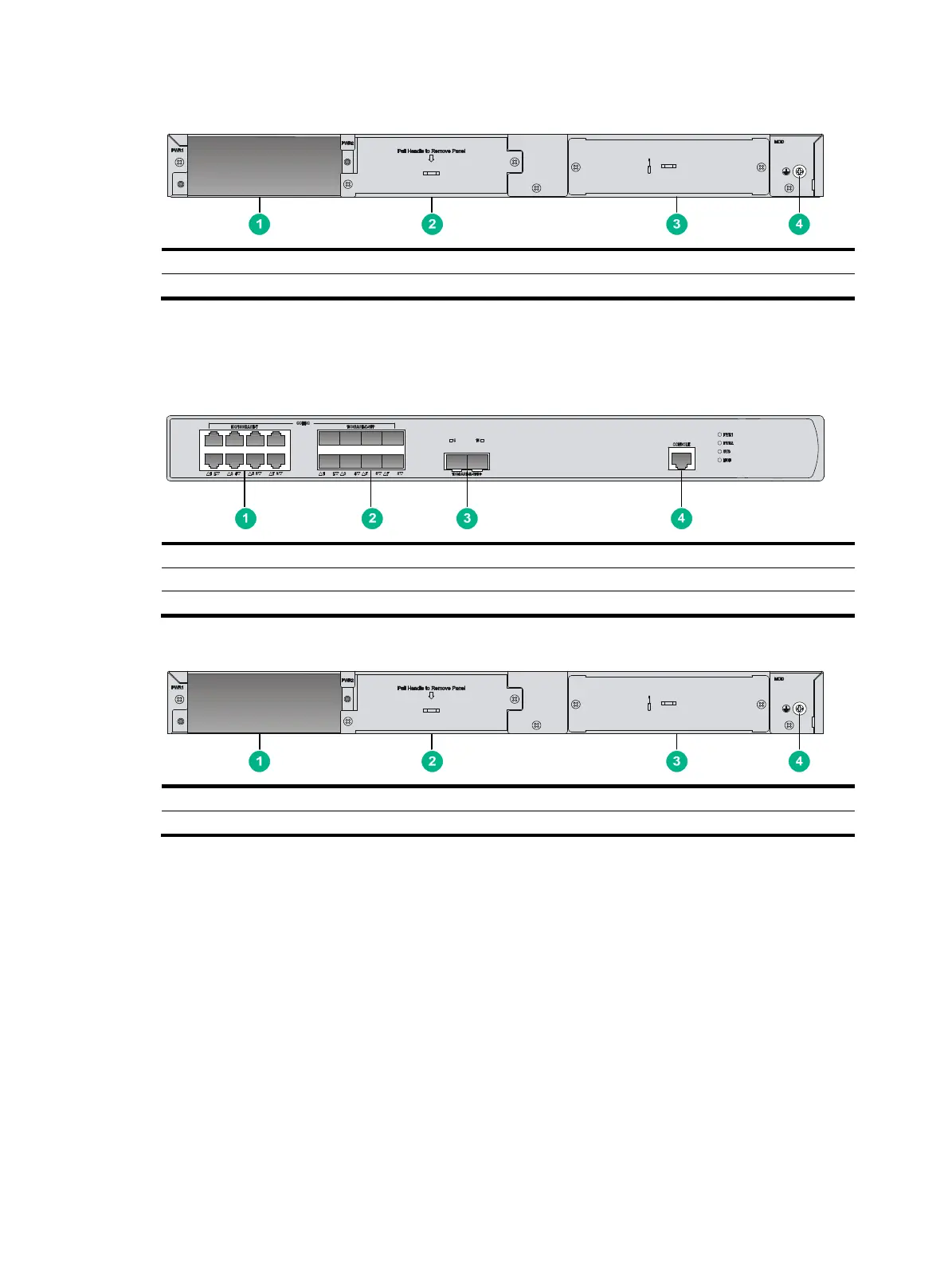

Figure 21 Rear panel
(1) Power module slot 1 (PWR1) (2) Power module slot 2 (PWR2)
(3) Expansion slot (4) Grounding screw
WX3520H
Figure 22 Front panel
(1) 100/1000BASE-T autosensing Ethernet copper ports 1 through 8 (combo interfaces)
(2) 100BASE-FX/1000BASE-X SFP ports 1 through 8 (combo interfaces)
(3) 10GBASE-R SFP+ ports 9 and 10 (4) Console port
Figure 23 Rear panel
(1) Power module slot 1 (PWR1) (2) Power module slot 2 (PWR2)
(3) Expansion slot (4) Grounding screw
