H3C WX3500H Series Installation Guide

43

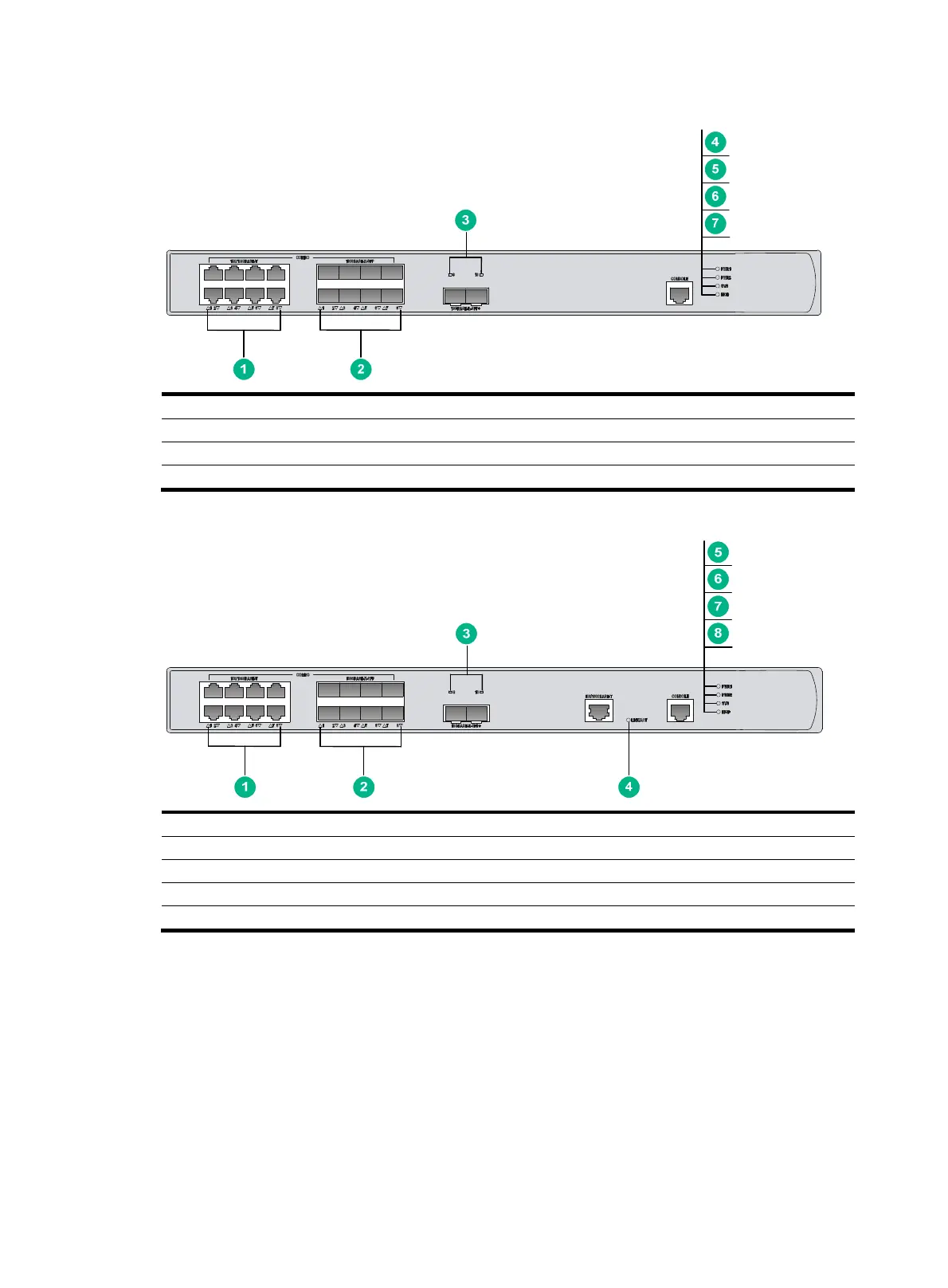

Figure 33 WX3520H LEDs
(1) 100/1000BASE-T autosensing Ethernet copper port status LEDs
(2) 100BASE-FX/1000BASE-X SFP port status LEDs (3) 10GBASE-R SFP+ port status LEDs
(4) Power module 1 status LED (PWR1) (5) Power module 2 status LED (PWR2)
(6) System status LED (SYS) (7) Expansion card status LED (MOD)
Figure 34 WX3540H LEDs
(1) 100/1000BASE-T autosensing Ethernet copper port status LEDs
(2) 100BASE-FX/1000BASE-X SFP port status LEDs (3) 10GBASE-R SFP+ port status LEDs
(4) 100/1000BASE-T out-of-band management Ethernet port status LED (LINK/ACT)
(5) Power module 1 status LED (PWR1) (6) Power module 2 status LED (PWR2)
(7) System status LED (SYS) (8) Expansion card status LED (MOD)
