5.2.1 Analyzer Dimensions and Mounting
The BioTector TOC analyzer enclosure is a dual compartment Fiberglass Reinforced Polyester (FRP)
cabinet. This enclosure facilitates easy access to all components and thus eases the service and
maintenance procedures. Figure 7 and table 5 below gives the dimensions of various BioTector enclosures.

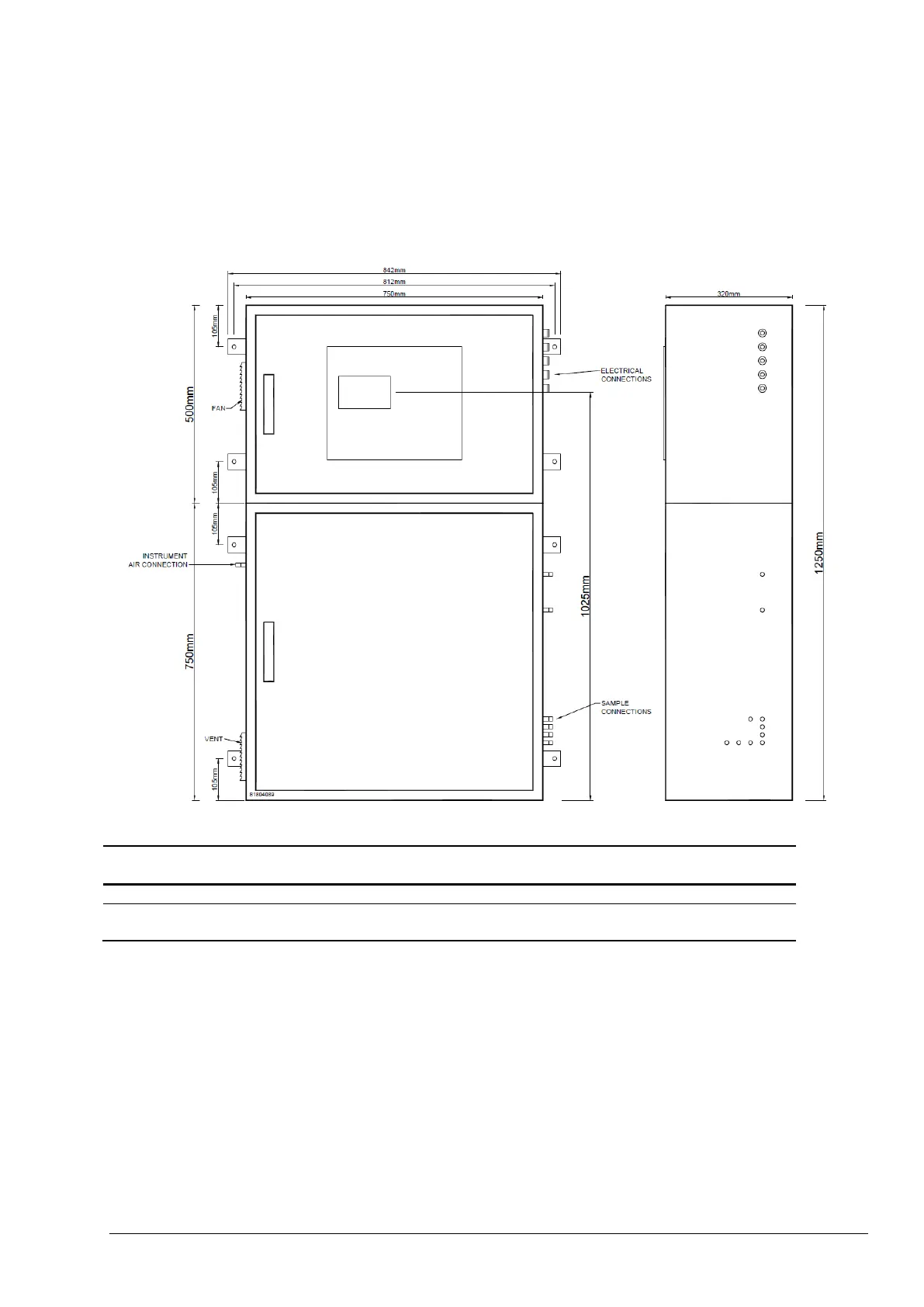

Figure 7 BioTector Dimensions
Table 5 Various BioTector Dimensions
Height
Width
Height
(LCD Screen)
Depth
BioTector TOC Analyzer
1250mm
750mm
1025mm
320mm
BioTector TOC Analyzer with
extended lower enclosure
1500mm
750mm
1275mm
320mm
