54400_maintain.fm Scheduled Maintenance

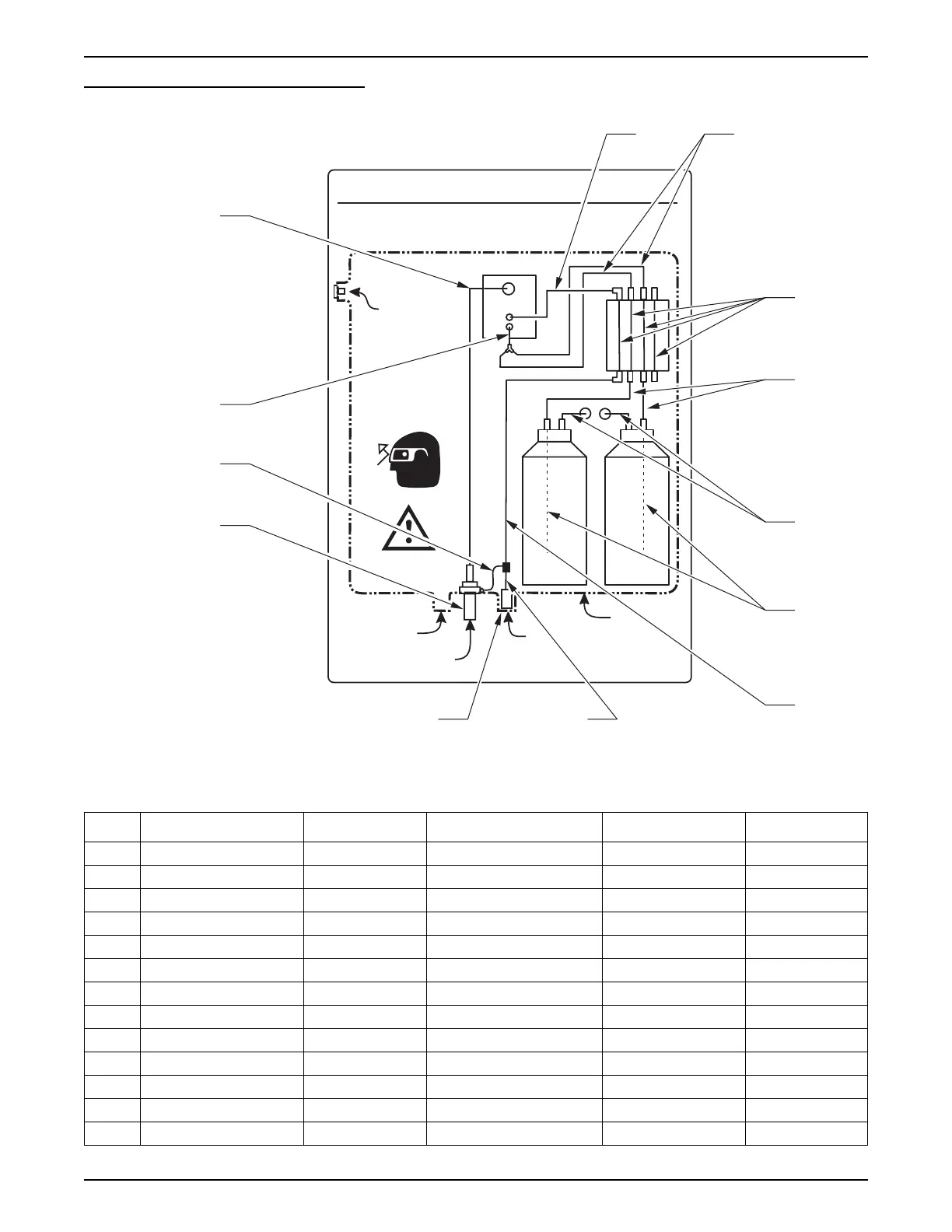

Figure 19 Plumbing Diagram
Table 3 Replacement Tubing Lengths for Figure 19
Item Description Length (Qty) From... To... Catalog Number
11/8"
ID, 1/4" OD 4.5 inches (1) Pump Body Out Colorimeter 43293-00
21/32"
ID, 3/32" OD 7.0 inches (2) Pump Body Out Y-Fitting 44253-00
31/16"
ID, 3/32" OD 2.0 inches (4) Pump Body In Pump Body Out 42717-00
4 0.062
ID, 0.125" OD 6.0 inches (2) Reagent Bottle Cap Pump Body In 42076-00
50.062"
ID, 0.125" OD 6.0 inches (2) Reagent Bottle Cap Reagent Vent Fitting 42076-00
61/32"
ID, 3/32" OD 7.0 inches (2) Reagent Bottle Bottom Reagent Bottle Cap 45524-00
71/8"
ID, 1/4" OD 7.0 inches (1) Sample Bypass Tee Pump Body In 43293-00
81/8"
ID, 1/4" OD 1.5 inches Sample Bypass Tee Sample Inlet Fitting 43293-00
91/4"
OD x 0.04 W, Black varies (1) Sample Conditioning Out Case Fitting 30616-00
10 1/2"
ID varies (1) Instrument Drain Customer Drain (not supplied)
11 1/32"
ID, 3/32" OD 3 inches Sample Bypass Tee Drain fitting 44253-00
12 1/32"
ID, 3/32" OD 1.0 inch (1) Y-Fitting Colorimeter 44253-00
13 0.500” ID, 11/16” OD 12 inches Colorimeter Drain Fitting 54108-00
SAMPLE IN
5 PSIG MAX
1/4IN. O.D. TUBE
AIR PURGE
.01CFM AT
20 PSIG MAX
¼ IN. O.D. TUBE
