22
Installation
3.3.2 Wall mounting
3.3.3 Pipe mounting
Attach the U bracket provided to
the wall with two screws (not
provided).
Tilt the instrument slightly
backwards to align the bracket
pins and the insertion slots, and
slide the instrument onto the
bracket as shown.
Insert the 2 locking screws with
washers through the side slots.
Adjust instrument angle for better
screen vision, and lock both side
screws.

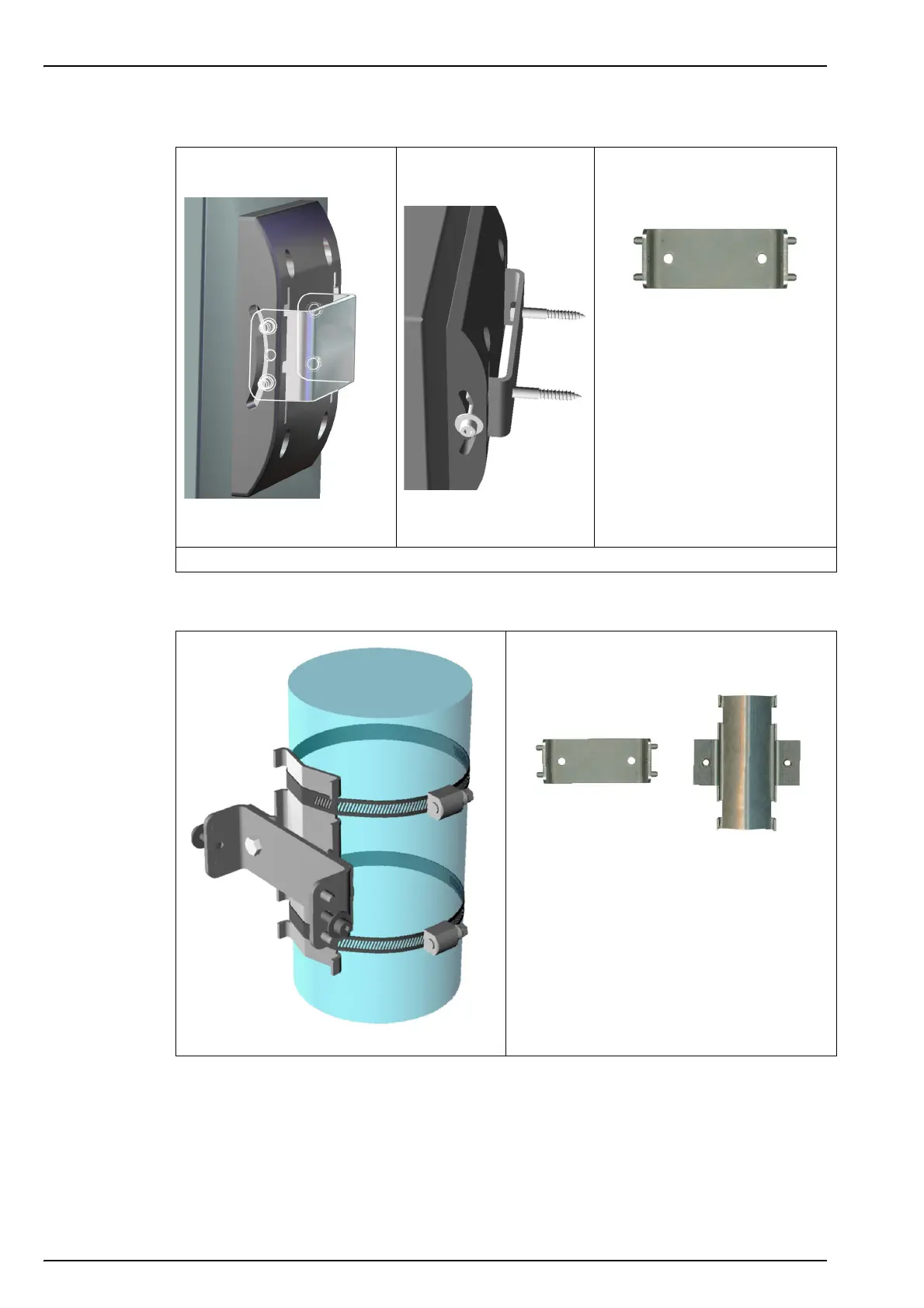

Figure 2 Wall mount bracket
Figure 3 Pipe mount diagram
Assemble the pipe mount bracket to the
U-bracket, using the two screws provided
Attach this assembly to the pipe using two
clamps (not provided) as shown on the left
The rest of the procedure is similar to the wall
mount version, pictured above.
Slide the instrument onto the bracket.
Insert the 2 locking screws with washers
through the side slots.
Adjust the instrument angle for better screen
vision, and lock both side screws.
