42
User Interface

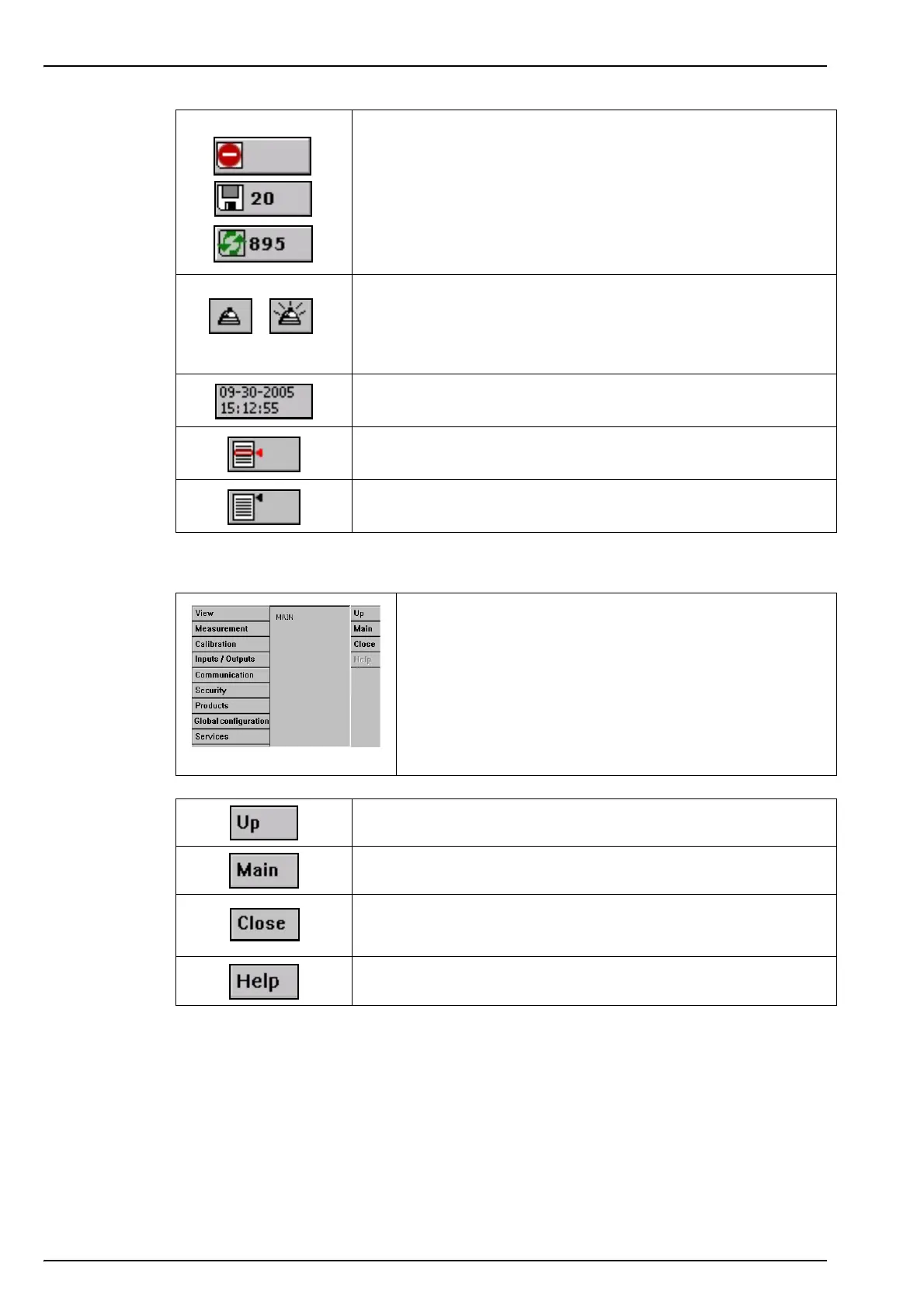

4.2.2 Menu navigation
Short cut to the data storage window. Number shows the number of
measurement currently stored in volatile memory.
• No storage
• Store once: When the buffer is full (10,000 positions), the
recording of measurement stops.
• Rolling buffer: When the buffer is full, the latest measurement set
replaces the oldest one (first-in, first-out)
normal - snooze
In the event of an alarm, the “snooze” button stops the instrument
buzzer and returns all the relays in the instrument to their normal
state during the "snooze time". The icon indicates if the alarms is on
“snooze” or not. This "snooze" is configurable. Refer to Configure
snooze on page 66.
Current date and time. This is also a shortcut to the date and time
setting window.
Call the contextual menu. This menu is in the header bar and its
content is related to the view displayed.
Opens the main menu page for easy navigation through all available
menus.
Figure 26 Main menu window
Pressing the “menu” button in the header bar calls the main
menu. The display is made of three columns:
• The left column is the menus, or submenus (greyed out
options are not available)
• The center column shows a tree view of actual position
inside the menu structure
• The right column has the generic controls detailed below.
Return to previous menu (one step back)
Jump directly to main menu
Close the menu and go back to measurement view display. If the
menu button is pressed again, the menu returns to its previous state
(tree structure is saved)
Help topics concerning current menu
