Appendix C
Page 79
8837apdx_drawings.fm Engineering Drawings

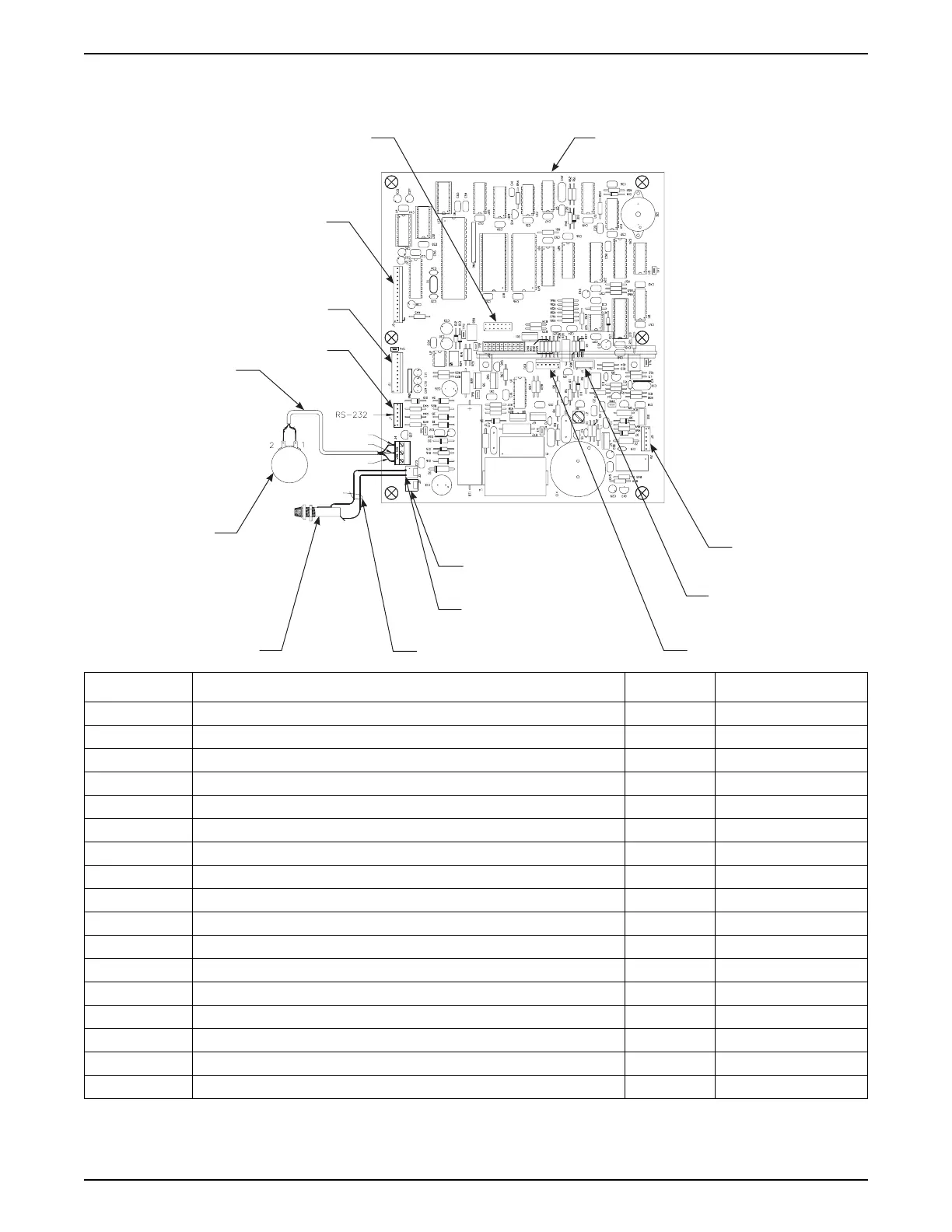

Sigma 900 All Weather Refrigerated Sampler Assembly (11 of 15)
Item Description QTY Cat. No.
1 PCB Assembly 1 8903
2LCD — —
3Keypad — —
4 Thermal — —
5RS232 — —
6 Motor Cable Assembly 1 8859
7 Gearbox Assembly 1 8910
8 O-ring 1 3319
9 5 amp Slo-blo Fuse 1 8753
10 Fuse Holder 1 3320
11 O-ring 1 3321
12 Fuse Holder Cable Assembly 1 3146
13 Pin 2 — —
14 Power — —
15 Auxiliary — —
16 Fluid Sensor — —
17 Distributor — —
BK CLR
BK
SHLD
CLR
1
2
3
4
5
6
8–11 12
13
14
15
16
17
7
