Hach SIGMA 900 - Appendix C Engineering Drawings - Assembly 15; Sampler Assembly Diagram (15 of 15)

Appendix C
Page 83
8837apdx_drawings.fm Engineering Drawings

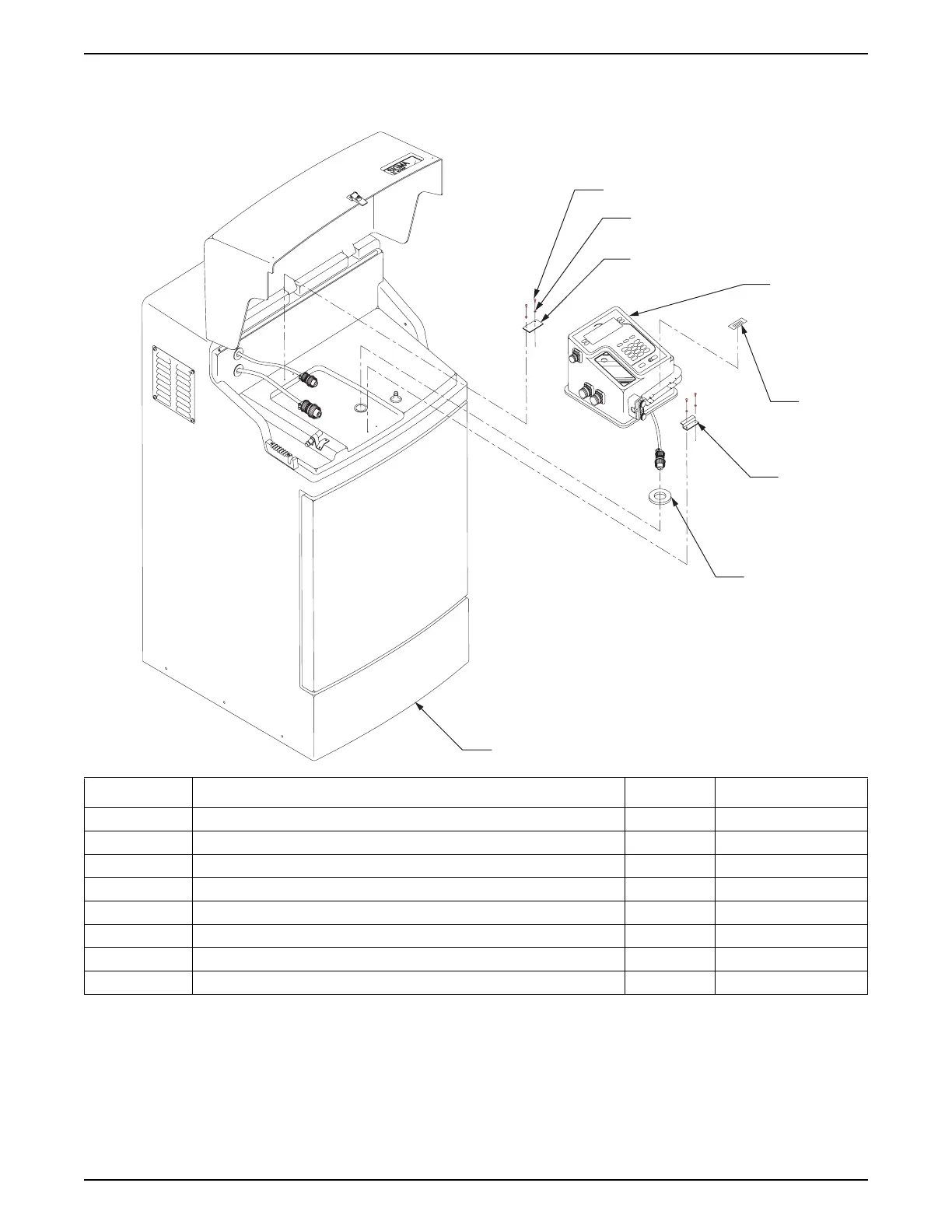

Sigma 900 All Weather Refrigerated Sampler Assembly (15 of 15)
Item Description QTY Cat. No.
1 Screw 4 SE 402
2 Washer 4 SE 401
3 Rear Controller Mount Bracket 1 8738
4 Controller 1 8900
5 Pump Tube Insert Label 1 8894
6 Controller Front Bracket 1 8836
7 Gasket 1 8937
8 Refrigerator — —
1
2
3
4
5
6
7
8
