18/64 CMp | Technical data
Bosch Rexroth AB, RE 15409 Version 08.2022,
6 Technical data
6.1 SLMU

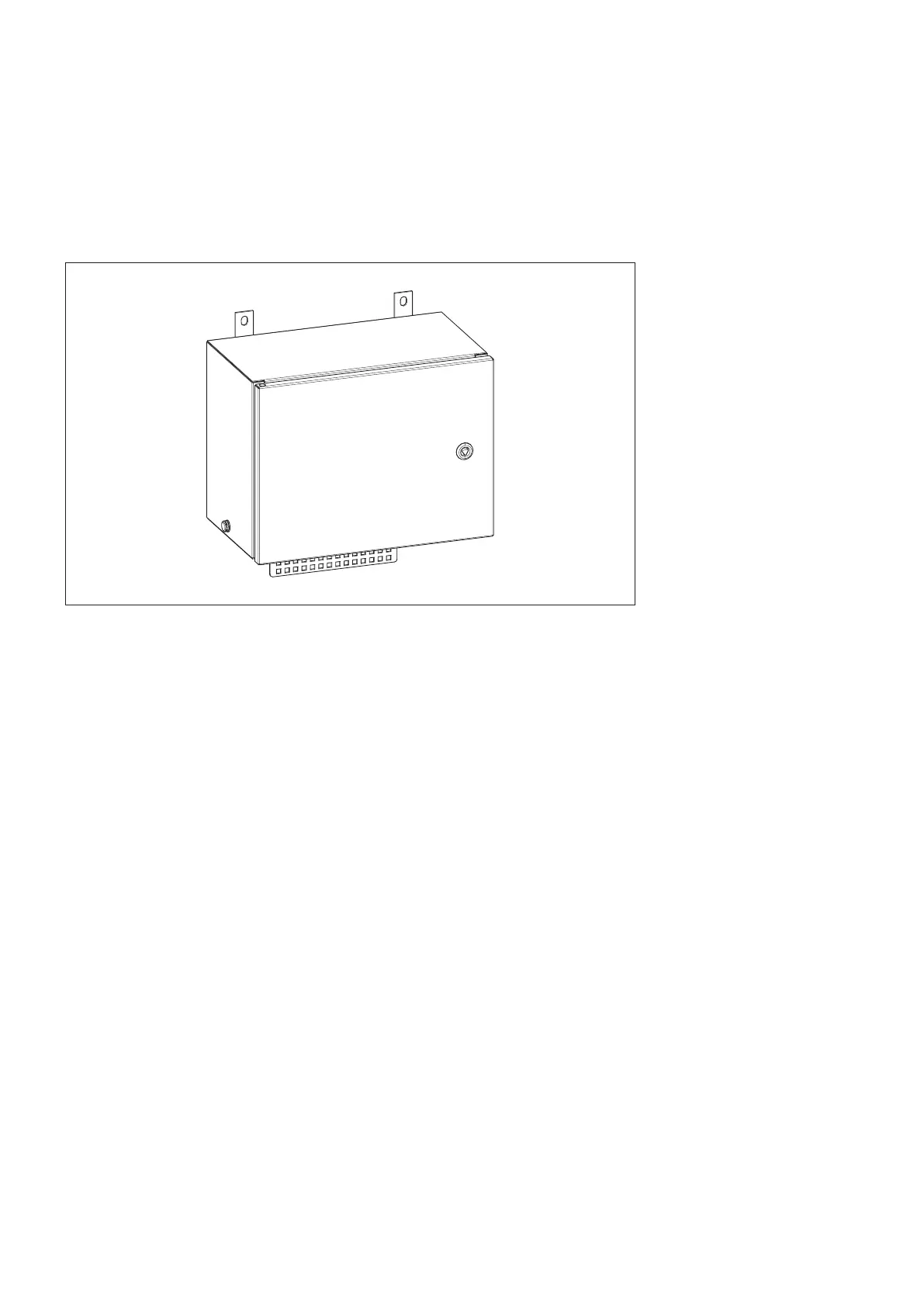

Fig. 5: S-Link Monitoring Unit
Function
The S-Link Monitoring Unit is used to acquire signals from the Spider 2 and/or
directly from sensors.
The box is made of stainless steel and the content of the box depends on the
monitoring needs and is described in the technical order specication.
The main components in the box are :
• CCM module that is a small Linux computer
• MMM module that is an interface for external sensors
• GPRS router that transmits data via the mobile network
For electrical installation see the order specic drawings.
