RE 15409, Version 08.2022, Bosch Rexroth AB
Installation | CMp 45/64
7.3 Installation of sensors
7.3.1 Temp sensor
7.3.1.1 CA
The sensor for CA shall be mounted in connection D1, D2 or D3, see Fig. 45. Select
a free connection at the lower part of the motor. The sensor should be of type 13.

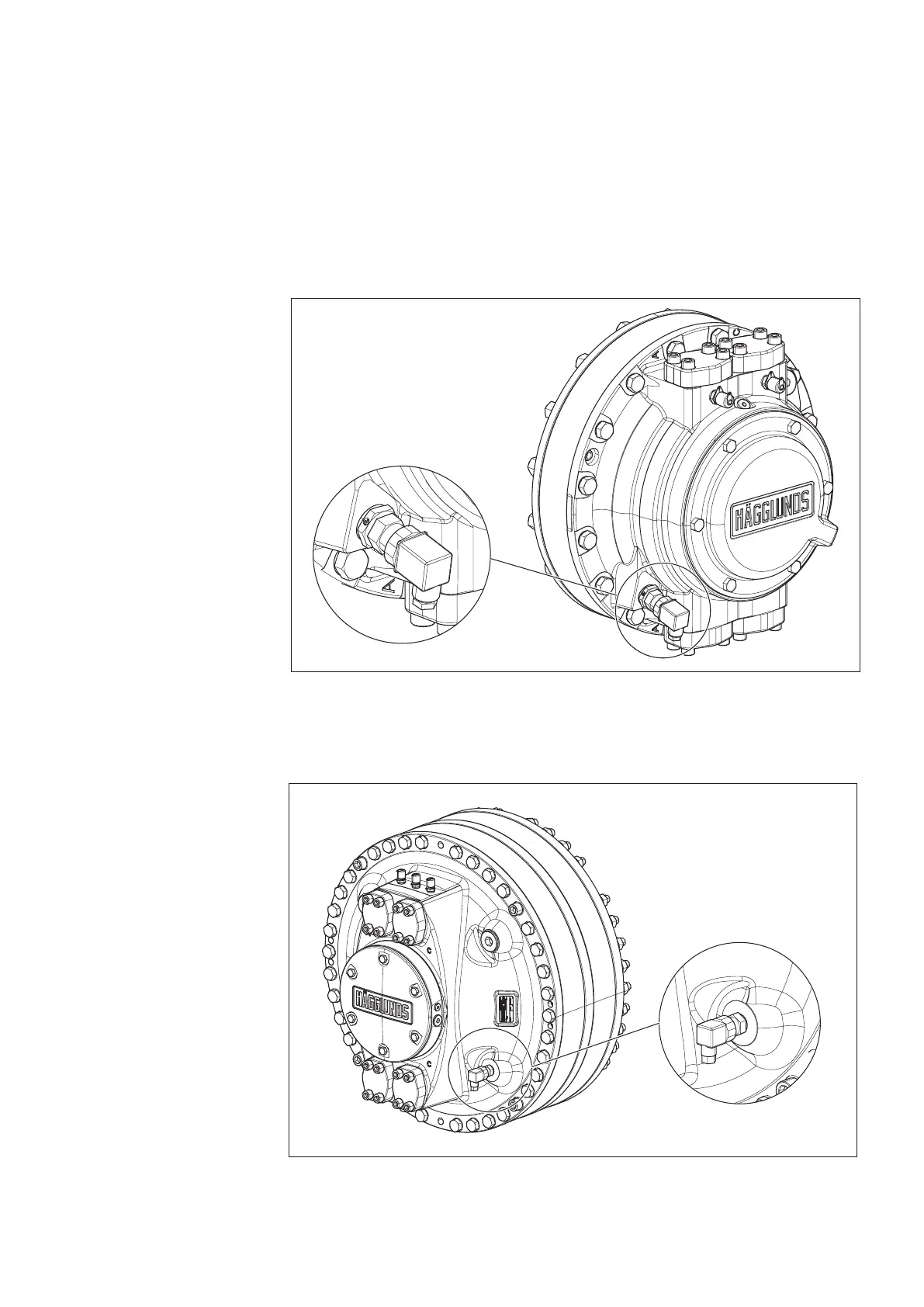

Fig. 45: Sensor mounting on CA
Fig. 46: Sensor mounting on CB
7.3.1.2 CB, CBp, CBm
The sensor for CB can be mounted in connection T3, see Fig. 46. The sensor should
be of type 12. CBp and CBm has drain temperature sensor mounted as standard.
DD00078690
DD00078694
