36/64 CMp | Installation
Bosch Rexroth AB, RE 15409 Version 08.2022,
7 Installation
7.1 Unpacking
CAUTION
Danger from falling parts during unpacking!
Risk of injury and damage on components!
f Place the packaging on a at and solid surface.
f Only open the packaging from the top.
f Remove the packaging from the S-Link Monitoring Unit.
f Check the S-Link Monitoring Unit for transport damage and completeness.
f Dispose of the packaging according to the environmental regulations of
your country.
7.2 Mounting the S-Link Monitoring Unit
Depending on each order, different mounting alternatives may have been chosen.
Please consider your placement of the S- Link box before mounting, to allow good
cabling between the control unit and the S-Link Monitoring Unit.

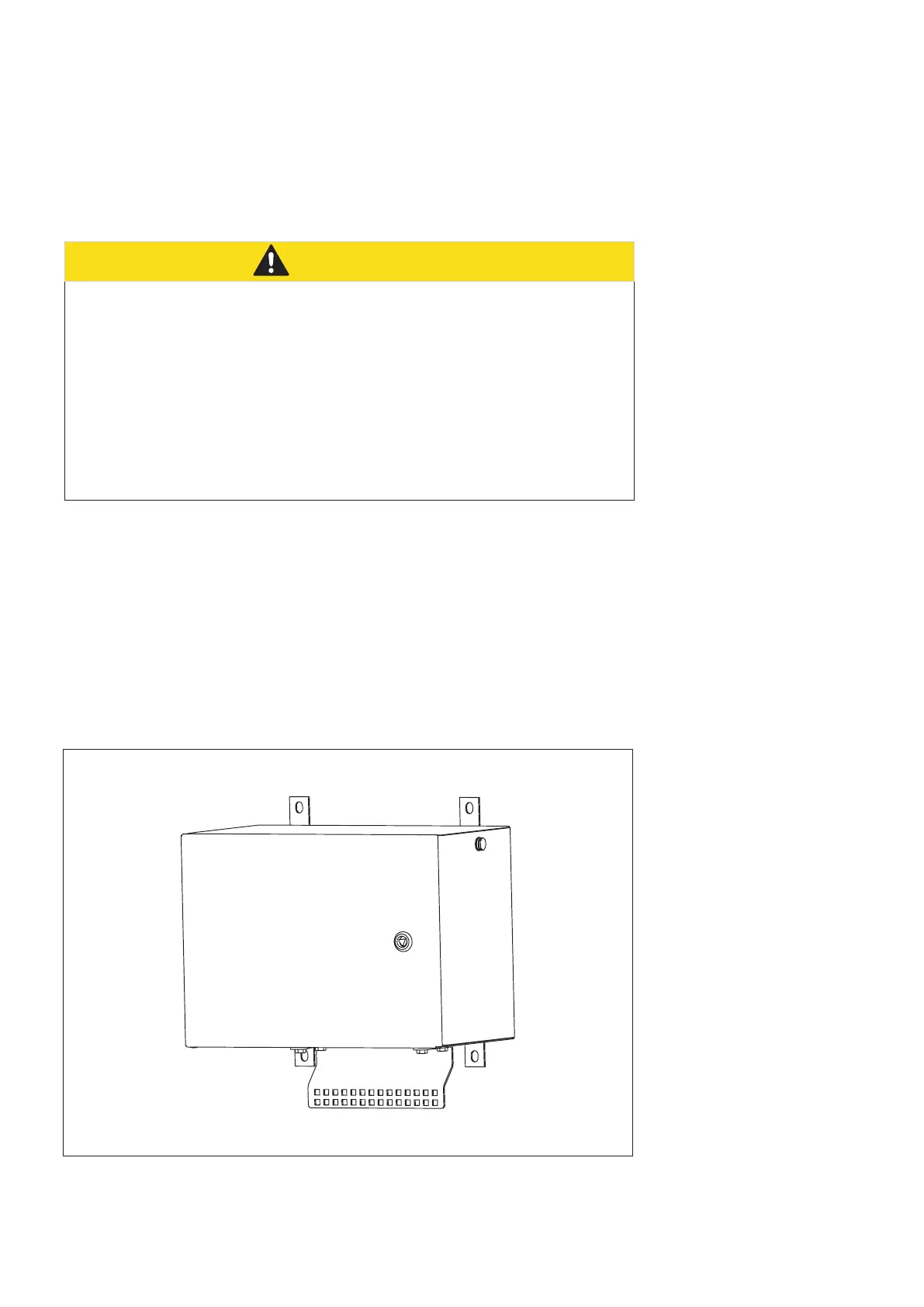

7.2.1 Mountingonwall,type00
No mounting material is delivered together with the S-Link Monitoring Unit
1. Drill holes according
to measurements. See
dimensions on Fig.
13: Drill dimensions
type 00, 01 page 24
Attach with suitable
screws.(Not supplied)
DD00078684
