Installation | CMp 37/64

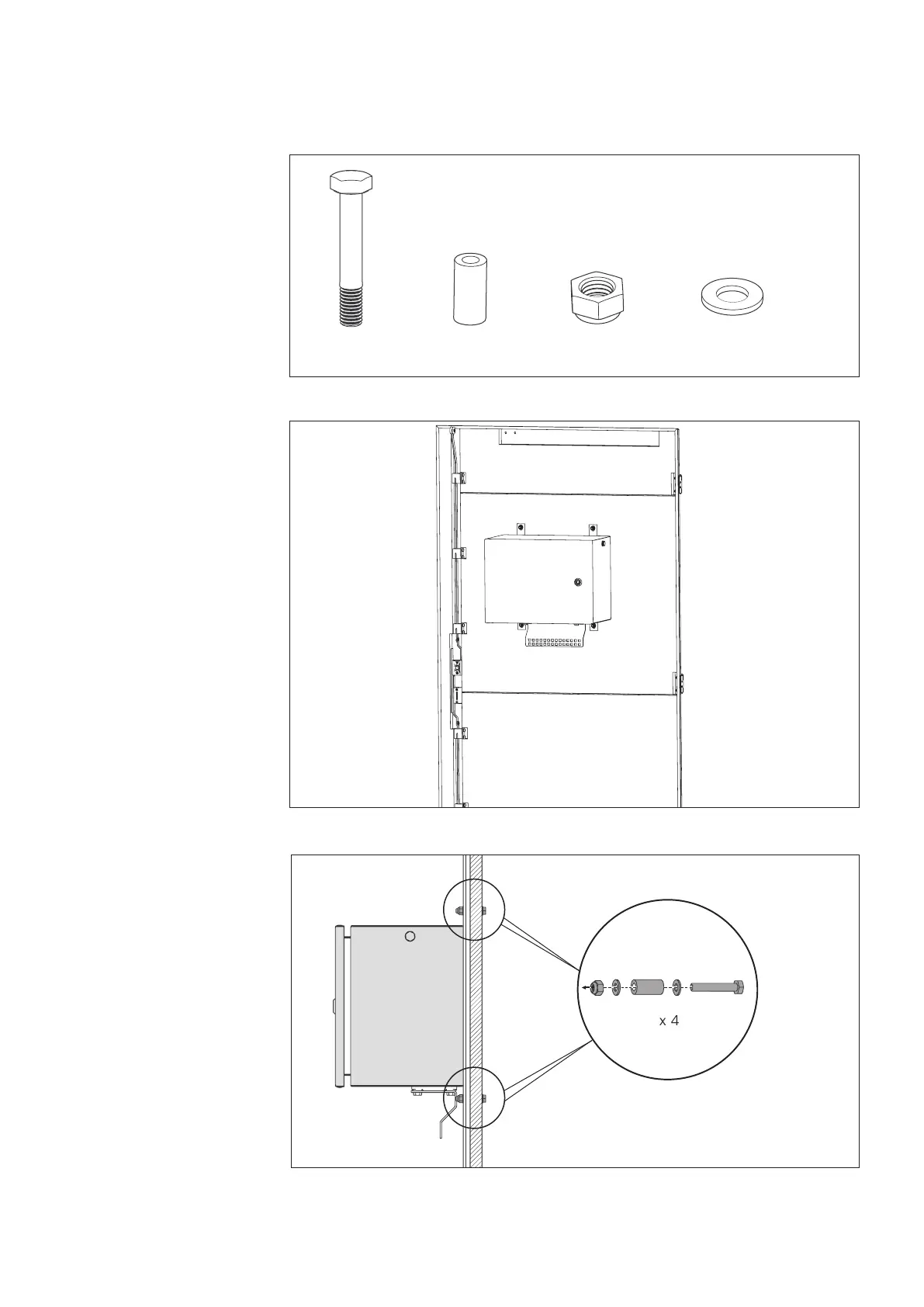

Fig. 34: List of screws, nuts and washers
x 4
X 4
X 4
X 4
X 8
Washer M8
Hexagon nut M8
Spacer tube
Hexagon screw
M8X50
Fig. 35: General picture of mounting on panel.
1. Drill holes according
to H2, W2.in Fig. 13:
Drill dimensions type
00, 01 page 24
2. Mount the box to the
wall with Hexagon
screw M8X 50
7.2.2 Mountingonpanel,type01
DD00078074
DD00078685
DD00078686
