24/64 CMp | Technical data
Bosch Rexroth AB, RE 15409 Version 08.2022,
6.2 SLMP
6.2.1 Mountingkittype00
Function
This mounting kit is used to mount the S-Link Monitoring Unit to a wall close to the
drive unit. Holes in the wall needs to be drilled prior to installation.
No mounting parts is supplied in the kit except the brackets on the S-Link
Monitoring Unit.
6.2.2 Mountingkittype01
Function
This mounting kit is used to mount the S-Link Monitoring Unit to a panel on a drive
unit. Holes in the panel needs to be drilled prior to installation. See Fig. 13
ENCLOSURE BRACKET PANEL
PANEL INSULATION
1
2
3
4
Pos Description Qty
1 Screw-M8X50-A4-80 4
2 Washer 8
3 Spacer 4
4 Nut-M8-A4-80 4

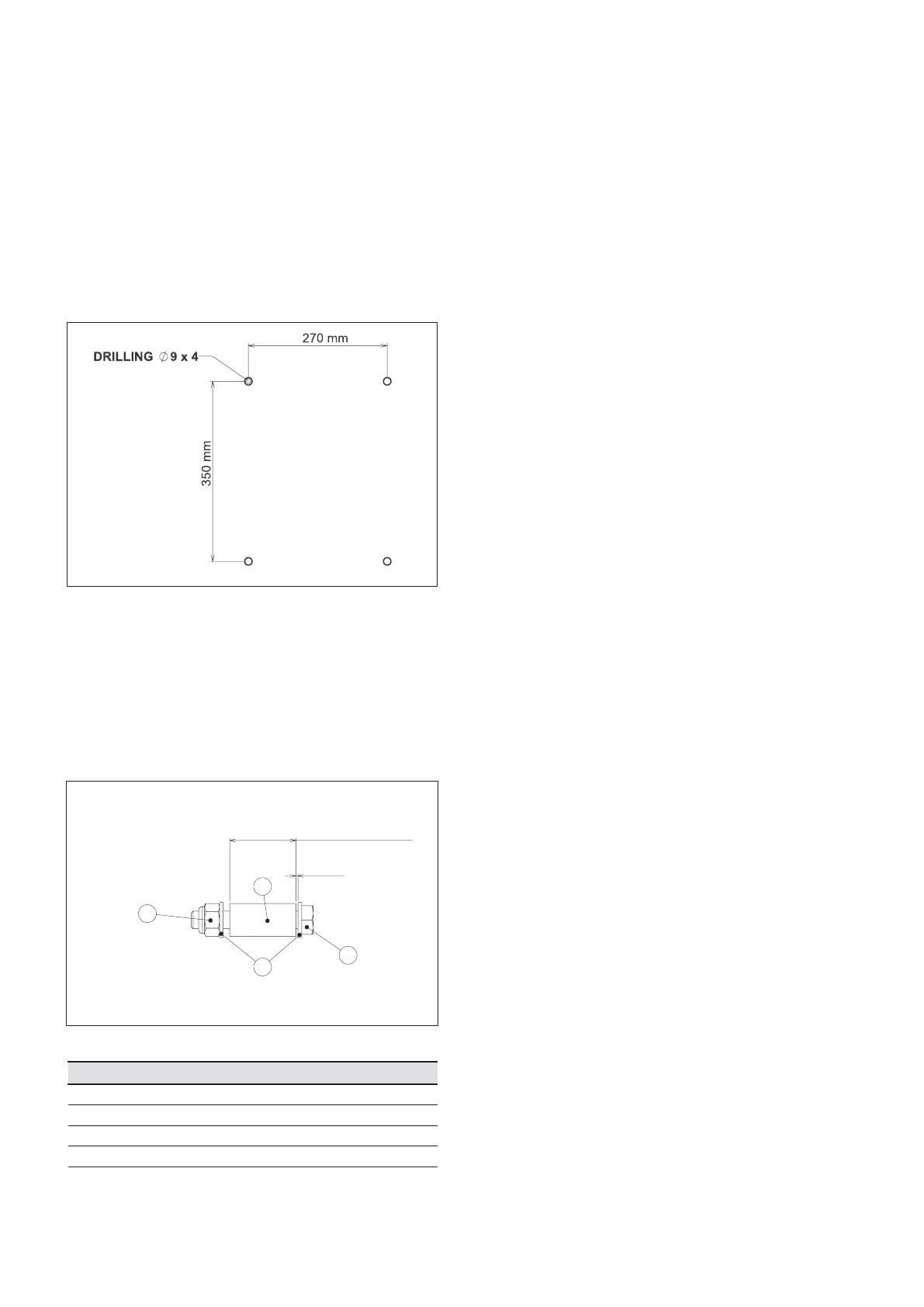

Fig. 13: Drill dimensions type 00, 01
Fig. 14: Components type 01
DD00078627
DD00078629
