Technical data | CMp 25/64
6.2.3 Mountingkittype02,03,04
Function
The mounting kit type 02 is used to mount the S-Link Monitoring Unit to a
PEX 1XX / 2XX, kit type 03 is used to a PEX 3XX / 6XX / 8XX / 10XX and type 04 to
a PEX 7XX / 12XX

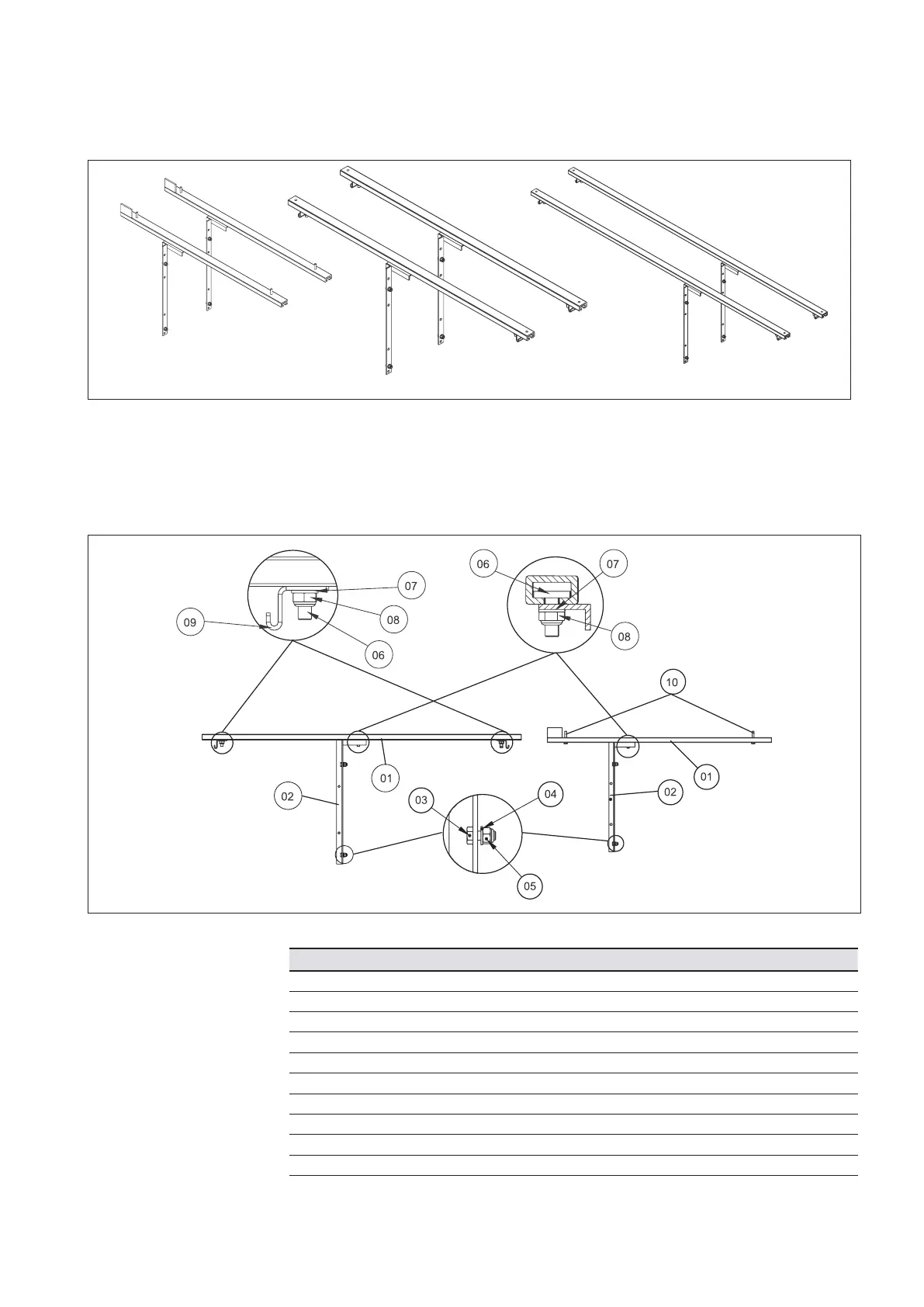

Fig. 15: Mounting kit type 02, 03, 04
Fig. 16: Components mounting kit type 02, 03, 04
Pos Description Qty
01 Bracket L=985 mm type 02, L=1835 mm type 03, 04 2
02 Bracket 2
03 Screw-M8X20-A4-80 4
04 Whasher 4
05 Nut-M8-A4-80 4
06 Screw-M10X30 25X25 2
07 Whasher 2
08 Nut-M10-A4-80 2
09 Bracket 4
10 Screw-M8X50-A4-80 4
DD00078633
DD00078635, DD00078630, DD00078637
Type 02 Type 03 Type 04
