26/64 CMp | Technical data

Bosch Rexroth AB, RE 15409 Version 08.2022,

6.2.4 Mountingkittype05

Function

This mounting kit is used to mount the S-Link Monitoring Unit to a DUe drive unit.

Pos Description Qty

01 Screw-M10X30 25X25 4

02 Washer 4

03 Nut-M10-A4-80 4

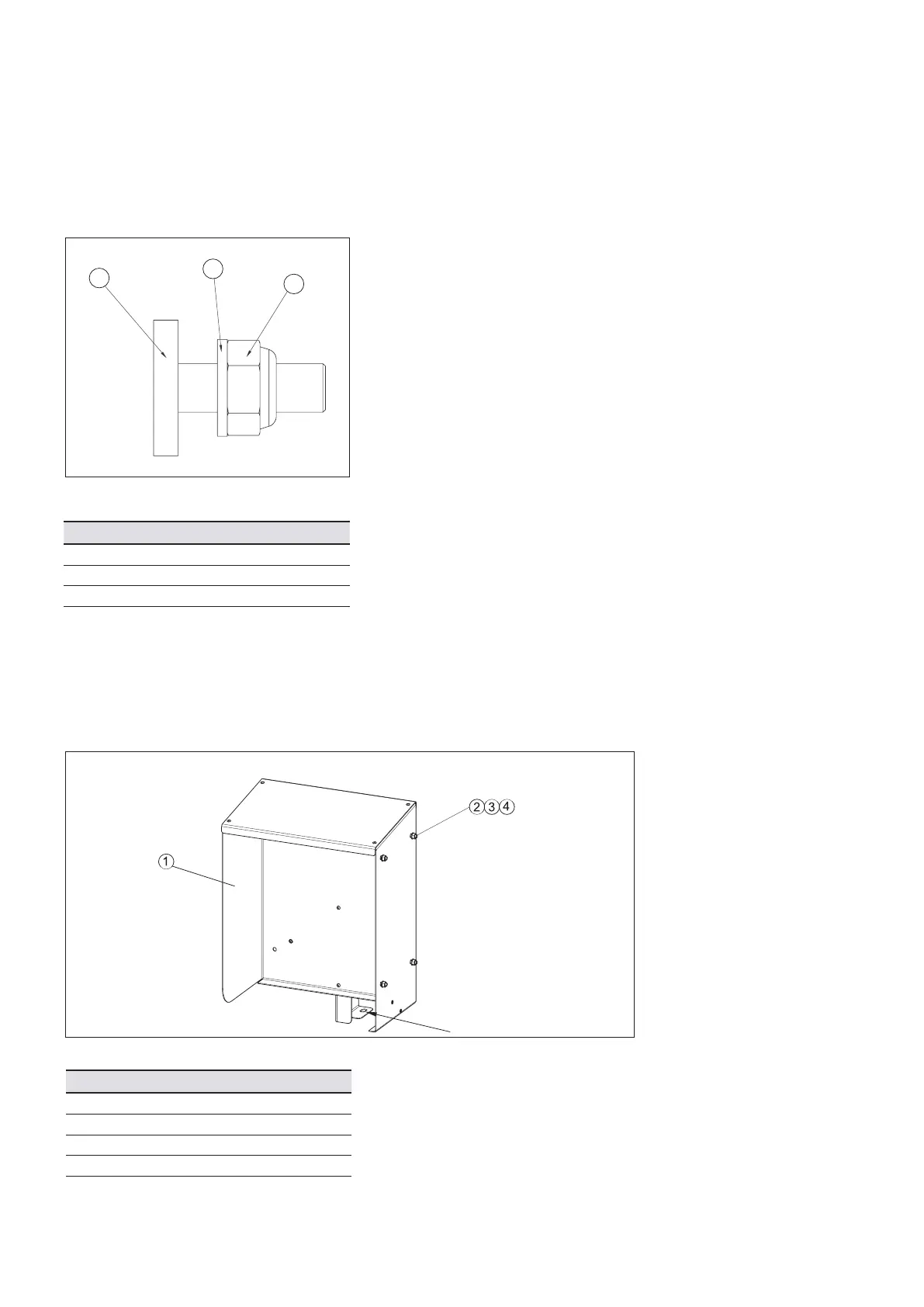

Fig. 17: Components type 05

DD00078642

6.2.5 Mountingkittype06

Function

This mounting kit is used to mount the S-Link Monitoring Unit to a DUc drive unit.

Fig. 18: Components type 06

Pos Description Qty

01 Cover 1

02 Screw-M8X20-8.8 4

03 Washer 8

04 Nut-M8-8 4

Excisting screw

from DUc

42576
