46/64 CMp | Installation
Bosch Rexroth AB, RE 15409 Version 08.2022,
Drain connections
Note!
Adapters for use here
are not included in delivery!

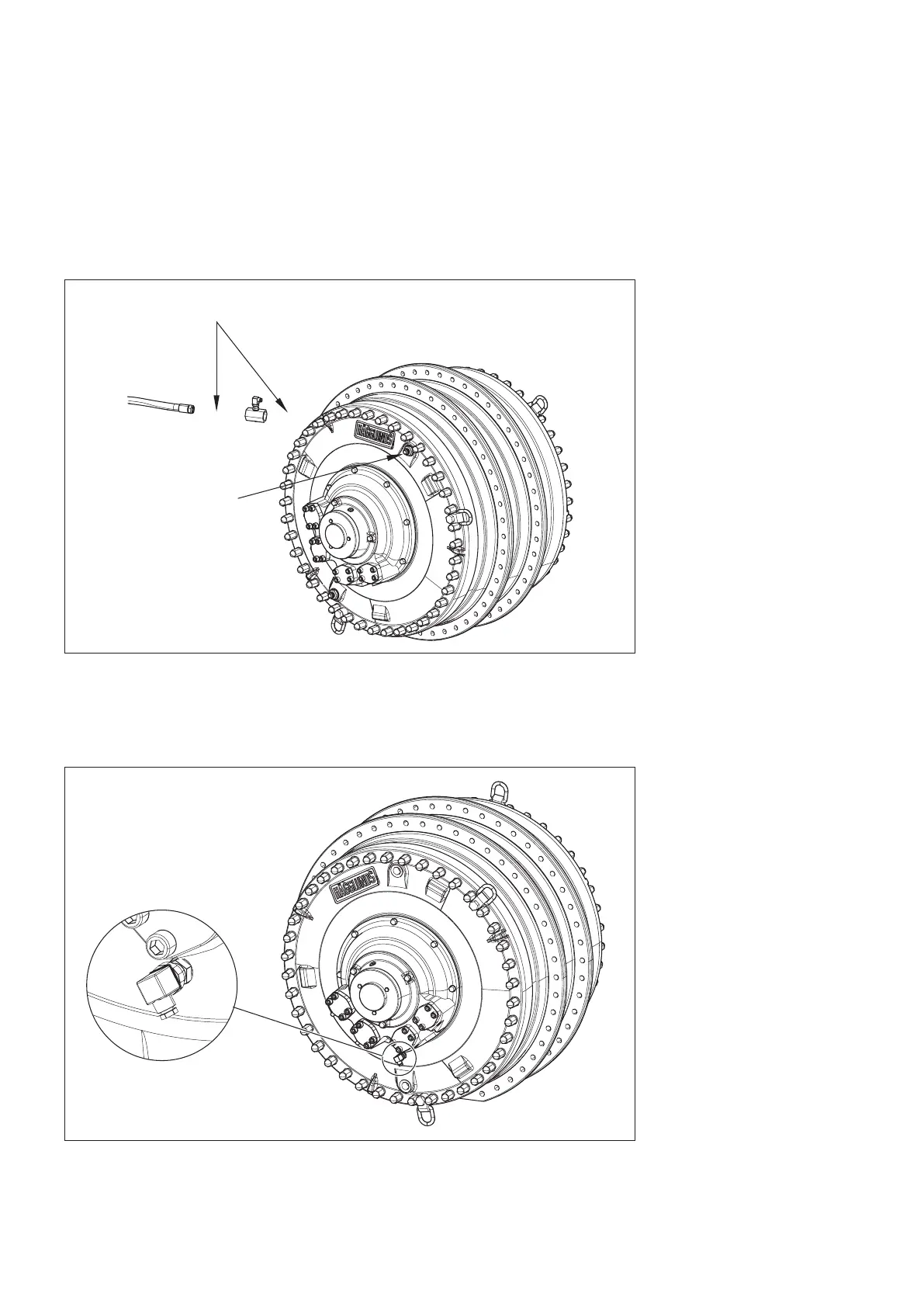

Fig. 47: Sensor mounting on MA 141 to MA 800
Fig. 48: Sensor mounting on MA 1150 to MA 4000
7.3.1.3 MA
Sizes from MA 141 to MB 800
No connection is available to mount the sensor directly to the motor housing. The
sensor needs to be mounted in an adapter tube connected to the drain line output
of the motor, see Fig. 47. One of SESP 50 – 53 should be suitable to use. Observe
that the connections between adapter tube and motor/hose not is included in the
delivery. The sensor needs to be mounted as close as possible to the motor..
Sizes from MB 1150 to MB 4000
The temperature sensor is mounted at port T, see Fig. 48. The sensor should be of
type 11.
DD00078697
DD00078698
