RE 15409, Version 08.2022, Bosch Rexroth AB
Installation | CMp 47/64
Drain connection
Note!
Adapters for use here
are not included in delivery!

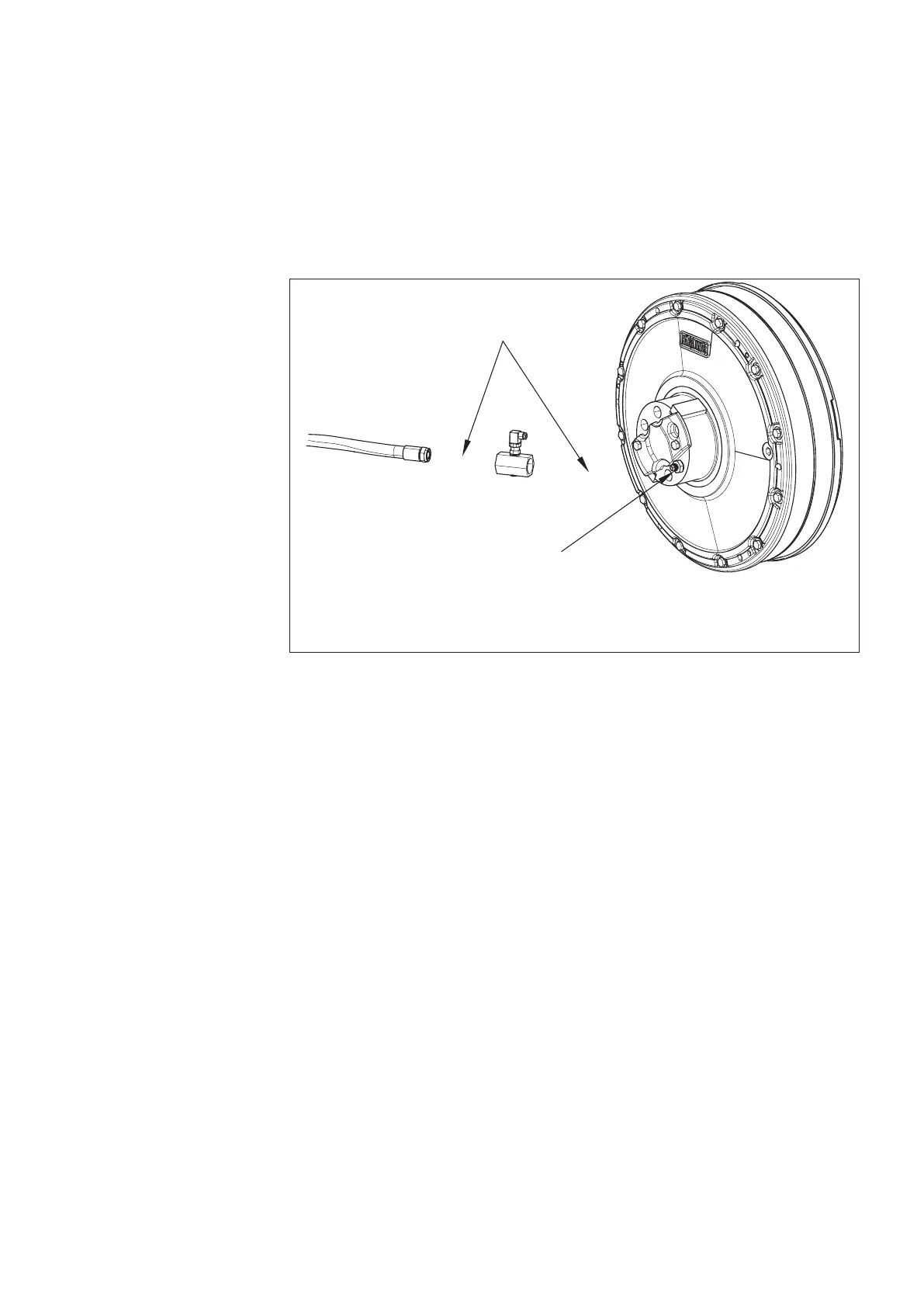

Fig. 49: Sensor mounting on VI
7.3.1.4 VI
The sensor needs to be mounted in an adapter tube connected to the drain line
output of the motor, see Fig. 49. One of SESP 50 – 52 should be suitable to
use. Observe that the connections between adapter tube and motor/hose not is
included in the delivery. The sensor needs to be mounted as close as possible to
the motor.
DD00078699
