48/64 CMp | Installation
Bosch Rexroth AB, RE 15409 Version 08.2022,
Note!
Adapters for use here
are not included in delivery!
Drain connection

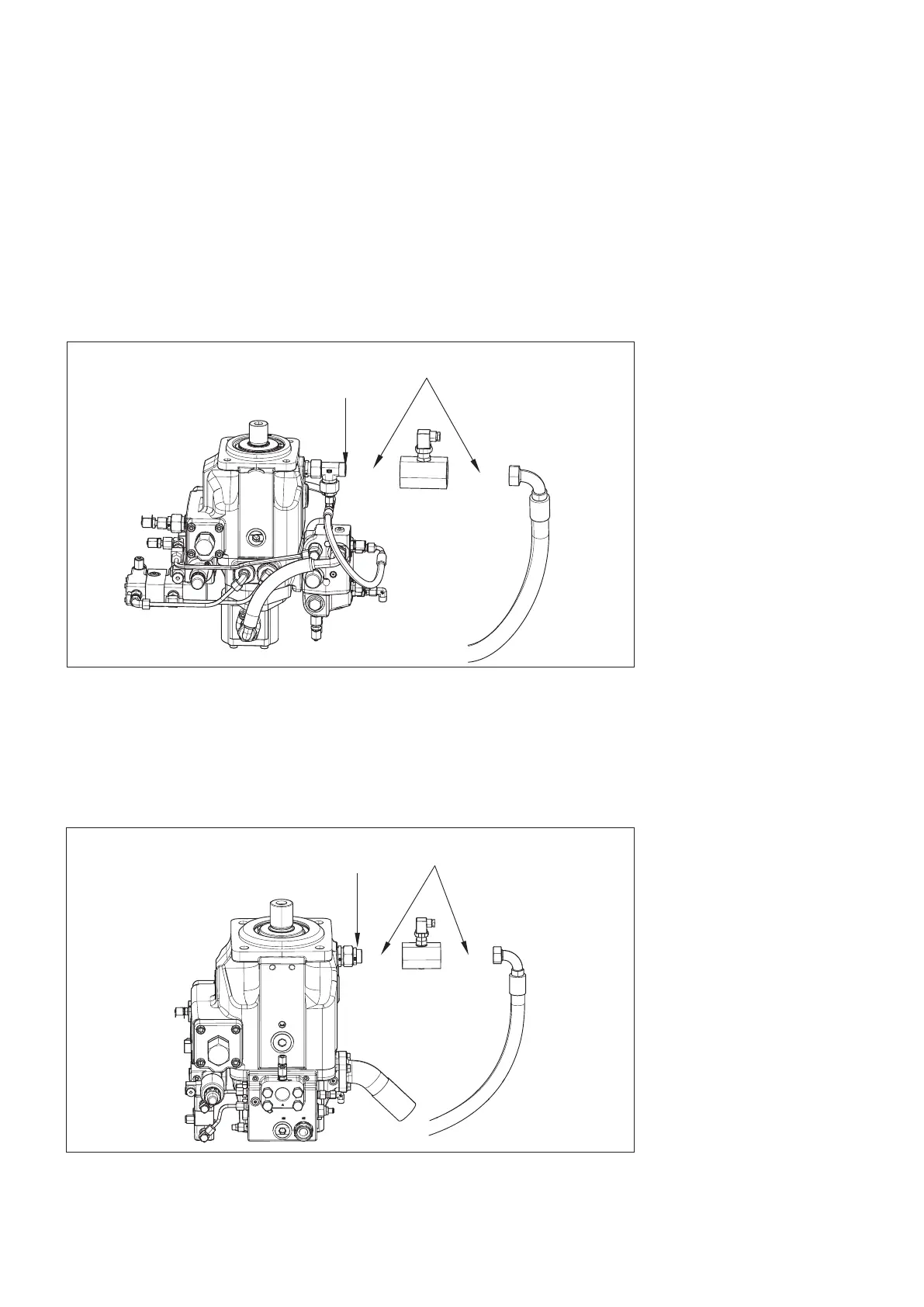

Fig. 50: Sensor mounting on SP pumps, SP 40 to SP 180
7.3.1.5 SP pumps
Observe that the gures show only one alternative to mount the sensors and
adapters. Other alternatives must be considered depending on the installation
SPpumps,SP40toSP180
The sensor needs to be mounted in a SESP 50 adapter tube connected to the drain
line output of the pump. Observe that the connections between adapter tube and
pump/hose not is included in the delivery. The sensor needs to be mounted as
close as possible to the pump.
DD00078700
Note!
Adapters for use here
are not included in delivery!
Drain connection
SPpumps,SP250toSP750
The sensor needs to be mounted in a SESP 50 or 52 adapter tube connected to the
drain line output of the pump, see Fig. 51. Observe that the connections between
adapter tube and pump/hose not is included in the delivery. The sensor needs to
be mounted as close as possible to the pump.
Fig. 51: Sensor mounting on SP pumps, SP 250 to P 750
DD00078701
