RE 15409, Version 08.2022, Bosch Rexroth AB
Installation | CMp 49/64

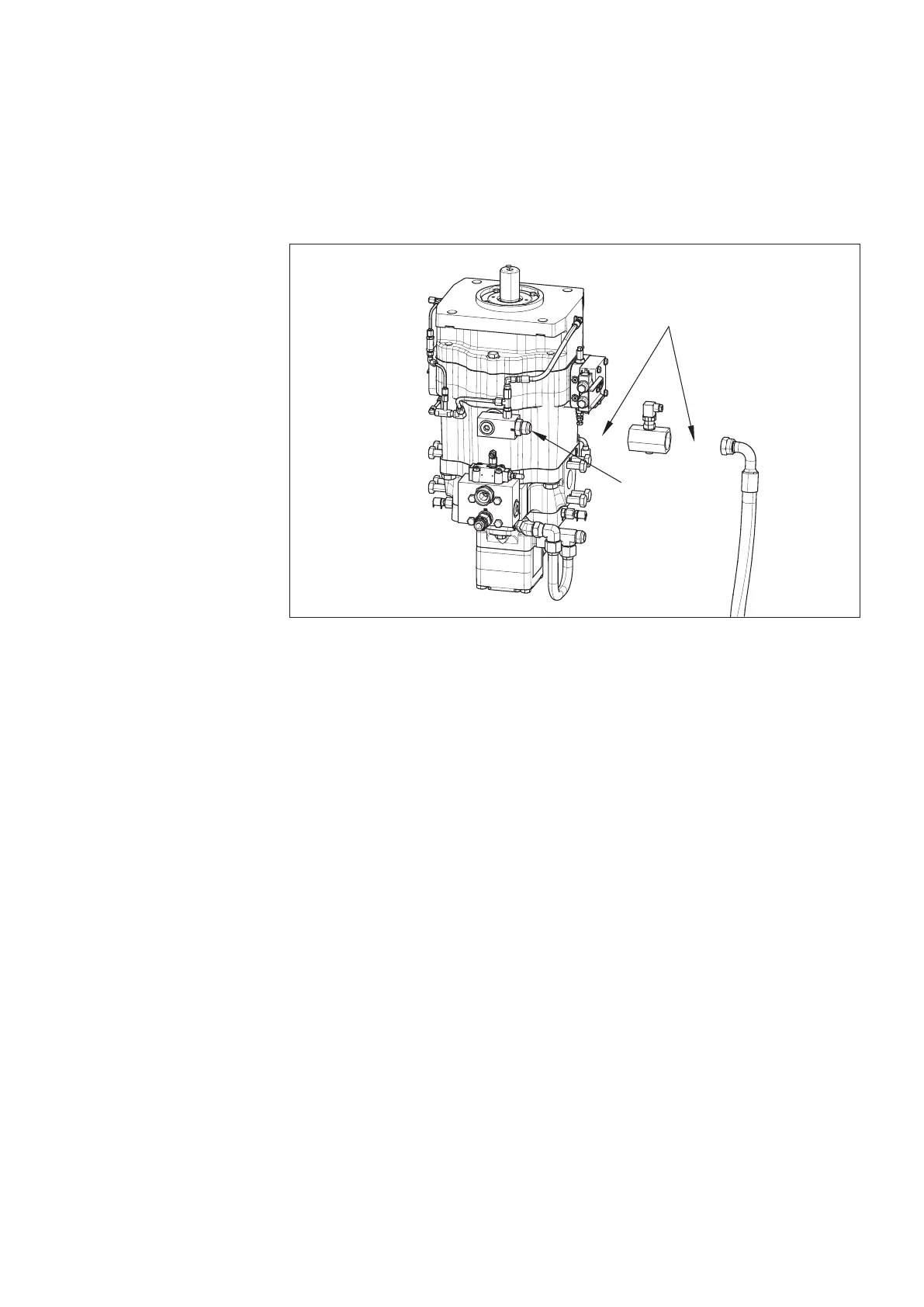

Fig. 52: Sensor mounting on HD pumps
Note!
Adapters for use here
are not included in delivery!
Drain connection
7.3.1.6 HD pumps
The sensor needs to be mounted in a SESP 50 or 52 adapter tube connected to the
drain line output of the pump, see Fig. 52. Observe that the connections between
adapter tube and pump/hose not is included in the delivery. The sensor needs to
be mounted as close as possible to the pump.
DD00078702
