RE 15409, Version 08.2022, Bosch Rexroth AB
Technical data | CMp 21/64
6.1.2 MMM

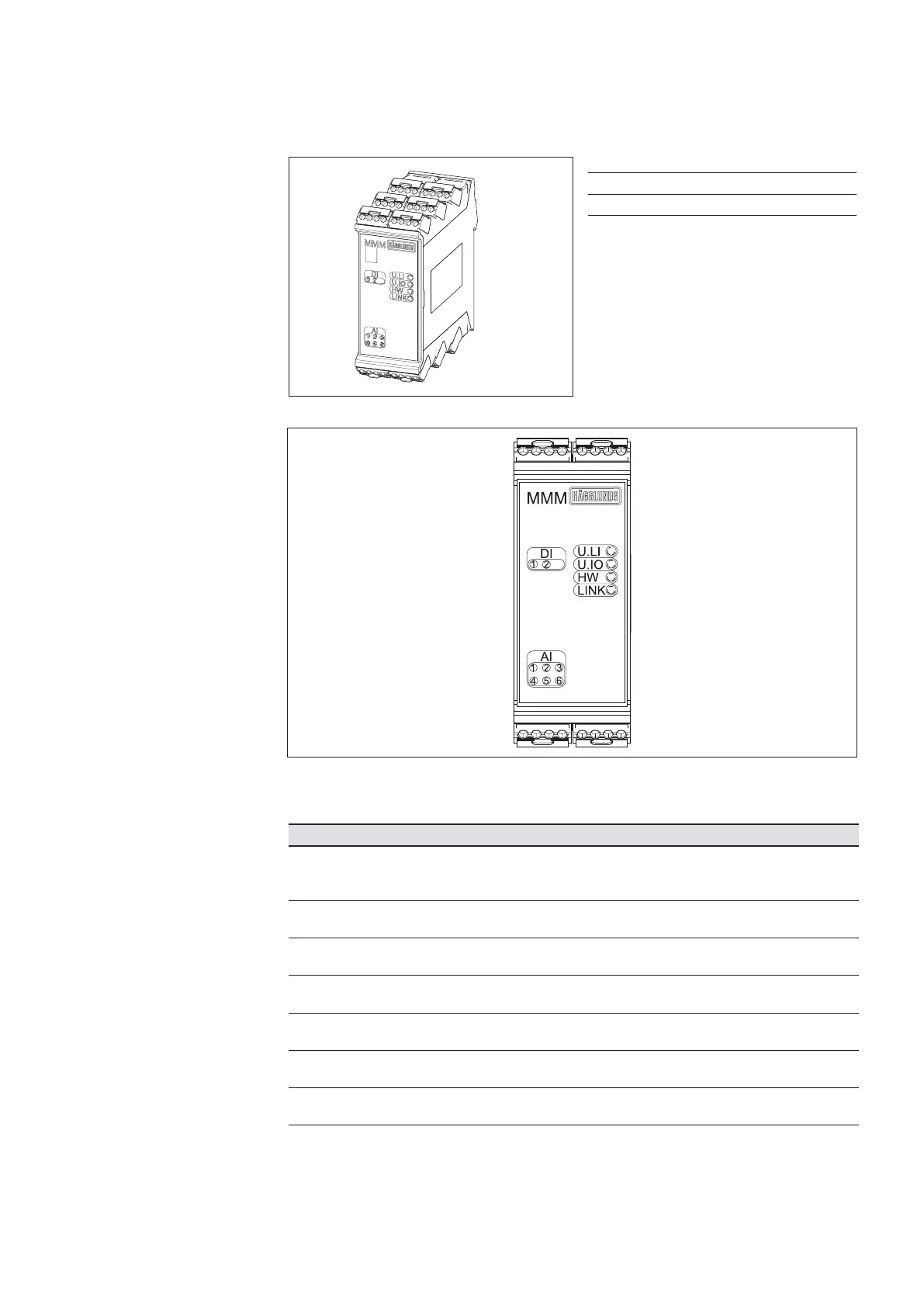

Fig. 9: MMM
Table 7: Electrical data MMM
Link power in 18-30 VDC
Link power out Max 4 A
Table8:Mechanical data MMM
Fig. 10: MMM front panel
Description Indication Information
MMM MMM number Flashing b
1-9
Flashing 1-9
Bootloader
MMM instance number
MMM instance number (testmode)
DI Digital input 1-2 Yellow
Off
Input high
Input low
AI Analog input 1-6 Red
Off
Current of out range
Normal
U.LI Link power Green
Off
Power OK
Power not OK
U.IO Input/output
power
Green
Off
Power OK
Power not OK
HW Hardware Red
Off
Hardware fault
Normal operation
LINK Link data Green ashing
Off
Communication active
No communication
For more detailed information see RE 15393
DD00078617
DD00078618
