Hakko Electronics FM-203 - 5. OPERATION; Controls and displays

①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑫
⑬
⑭
⑱
⑯
⑰
セムスねじ
M4×8（ 4 ）
外歯付
ワッシャ
呼4（2）
なべ ねじ
M3×1 2（ 4 ）
タッピン ねじ
呼3×8（ 4 ）
なべ ねじ
M4×5 5
外歯付
ワッシャ
呼4
セムスねじ
M3×6（ 6 ）
セムスねじ
M4×8（ 4 ）
バ インド ねじ
M3×6（ 8 ）
外歯付ワッシャ
呼3
21
11.部品リスト
注記：
取り付けねじは、仕様欄に記載されていない場合、予備部品や修理部品には含まれていません。別途ご注文ください。
●ハッコー FM-203 ステーション
図番 品番 部品名 仕様
① B2852 スイッチ
② B2384 インレット
③ B2387 電源コード ゴム 2 極接地型プラグ
④ B2855 トランス 100V
⑤ B2972 カード
⑥ B2761 ヒューズ、250V-3A 100 〜 120V
⑦ B2300 耐熱パッド
⑧ B3397 カバー
⑨ B3398 シャーシ ゴム足付き
⑩ B3399 フロントパネル A
⑪ B3400 フロントパネル B LED レンズ、D.S 付き
⑫ B3401 表示窓
⑬ B3402 操作ボタン 4 個入り
⑭ B3403 基板
⑮ B3404 放熱板
⑯ B3405 クリップ大
⑰ B3406 クリップ小
⑱ B3253 中継コード
62

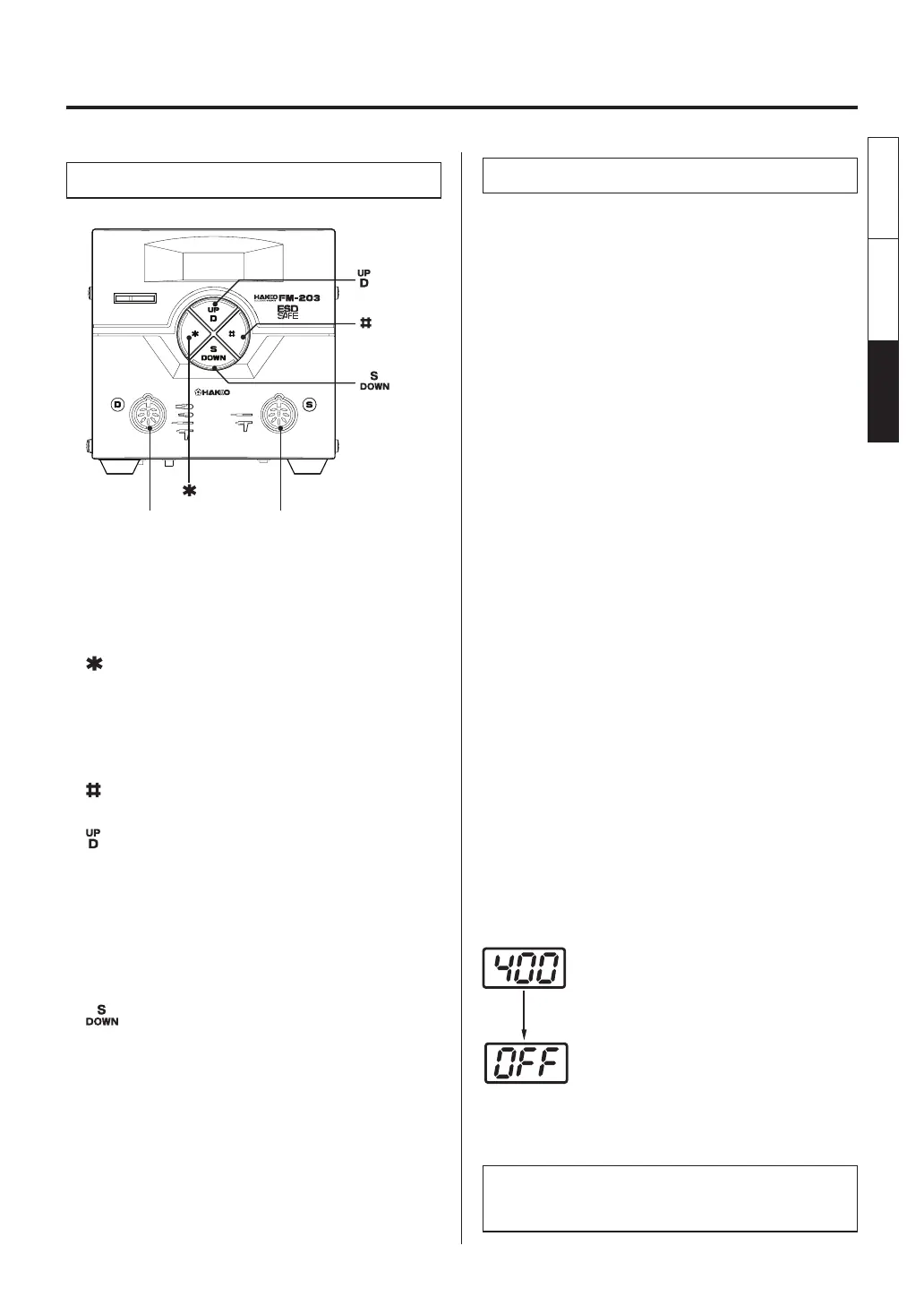

Controls and displays
Controls
button
button
button
button
Channel D
connector
Channel S
connector
The front panel of the HAKKO FM-203 has four
controls.
...... End of sequence signal (terminates a
phase of a data entry mode). When
pressed for less than one second,
displays settings already stored.
....... Initiates a data entry mode.
.......Changes the display to channel D.
●
Press and hold to turn ON or OFF
the temperature display for channel D
and the power to the iron tip.
●
Increases the displayed value when
a setting is changed.
... Changes the display to channel S.
●
Press and hold to turn on or off the
temperature display for channel S
and the power to the iron tip.
●
Decreases the displayed value when
a setting is changed.
5. OPERATION
Displays
The HAKKO FM-203 has a three-digit display
element.
Depending on the selected mode, it will display:
●
Sensor temperature (of the iron tip)
●
Data entry:
Selected quantity (See the data entry
procedures.)
●
Temperature scale:
ºC or ºF, depending on selection
●
Error detection (See ERROR MESSAGES.)
An audible buzzer is provided to alert the
operator:
●
When the station has reached the set
temperature, the buzzer will sound once.
(Default setting)
●
When the low temperature threshold has been
crossed, the buzzer will sound continuously.
This buzzer will shutoff when the sensed
temperature returns to the acceptable range.
●
When a foreign substance, an incompatible
tip, or the soldering end of the tip is inserted
into the HAKKO FM-2027, the display will
blink and the buzzer will sound continuously.
●
When the auto-power shutoff function is
activated and power to the heater is shut off ,
the buzzer sounds three times.
Holding down the button of the used channel
(D/UP or S/DOWN) turns off the power and
changes the display.
Holding down the button again turns on the
power.
NOTE:
Holding down the button of the unused channel changes
the display only.
