Maintenance and Service
5.4 Seat console
The drive, batteries, hydraulic system
and other components are located un-
der the seat console. The seat console
can be pivoted up for cleaning and
maintenance purposes.
5.4.1 Opening the seat console
If the cab safety roof option is installed,
the seat console is equipped with a
lock.
1. Park the vehicle on a level surface.
Switch off the vehicle with the key
switch and apply the parking brake.
2. Open the side panel (Fig. 21/1) using
a square wrench.
3. Unlock the lock (Fig. 21/2). Pivot the
seat console up.
After pivoting the seat console
back down it must be locked
again and the side door closed.

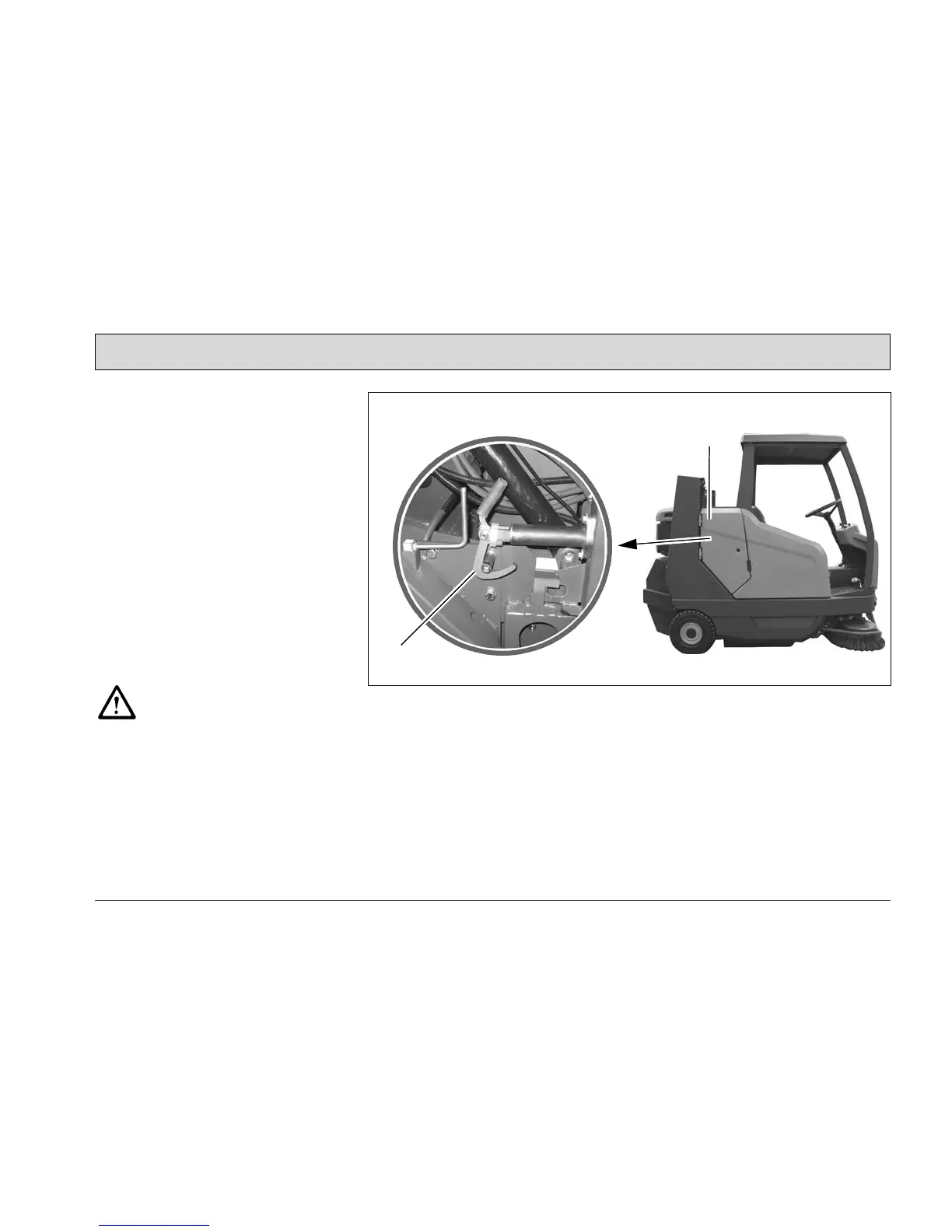

Fig.21
