HAKO 1500 E - Electronics; Fuses

64
Maintenance and Service
5.9 Electronics
5.9.1 Fuses
The fuse box (Fig. 29/1) is on the right-
hands of the foot area. The main fuse
and pre-fuse are located in the engine
compartment in front of the battery.
F1 Main fuse (200A)
F2 Pre-fuse (50A)
F3 Indicator (10A) (option)
F4 Spare
F5 RKL 12V (7,5A) (option)
F6 Parking/Rear light, right (5A) (op-
tion)
F7 Parking/Rear light, left (5A) (option)
F8 Driving lights (15A)
F9 DC/DC converter (20A)
F10 Modules (10A)
F11 RKL 36V (7.5A) (option)
F12 Horn (7.5A)
F13 Working lights (10A) (option)
F14 Windscreen wipers (10A) (option)
F15 Control relay 24V (5A)
F19 Hydraulic motor (100A)

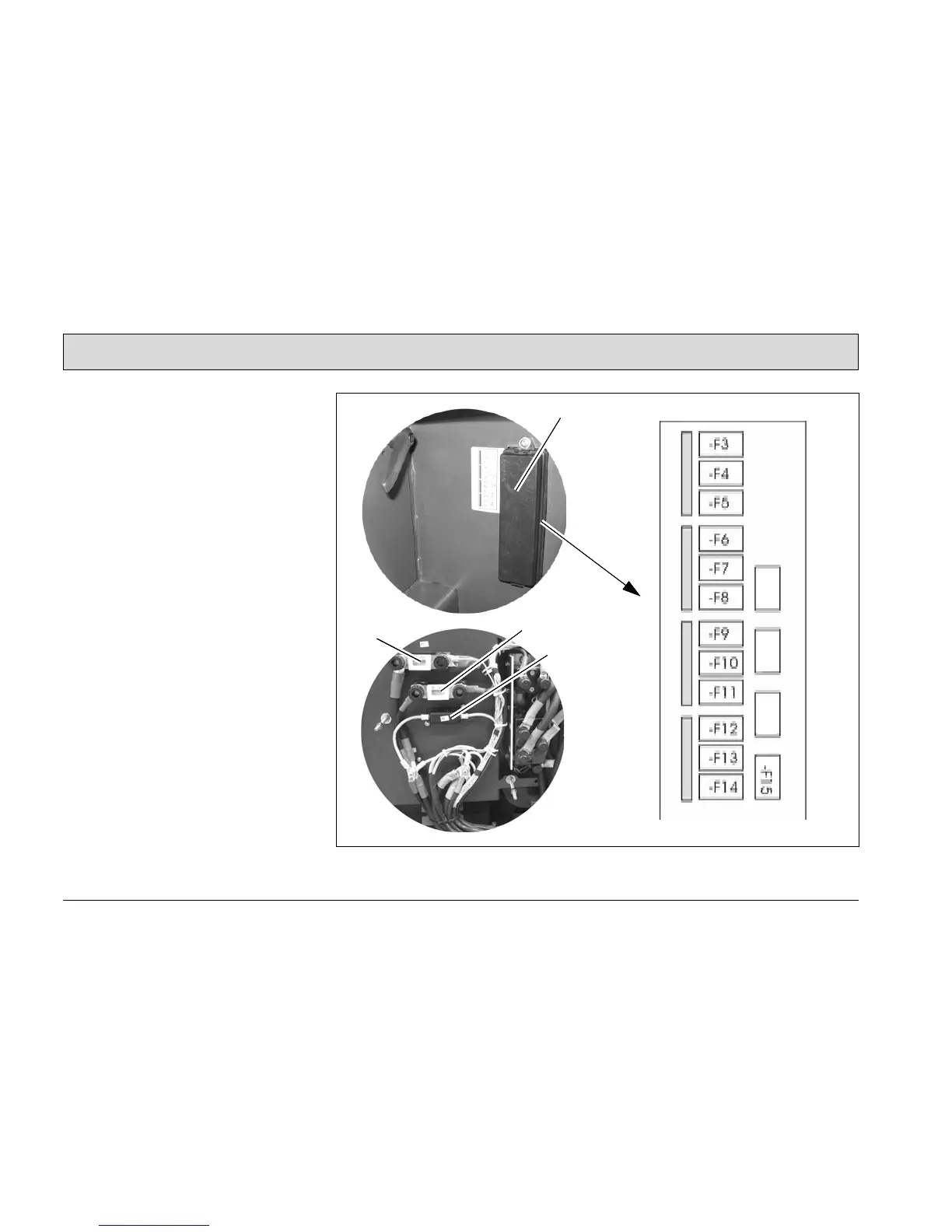

Fig.29
F2
F1
1
F19
