HAKO 1500 E - Rotary Brush

58
Maintenance and Service
5.7.4 Rotary brush
1 Rotary brush
2 Sealing strip, left
3 Sealing strip, front
4 Sealing strip, rear
5 Sealing strip, right
6 Rotary brush half
7 Screw connection (5 pieces)
8 Wear compensator
9 Scale

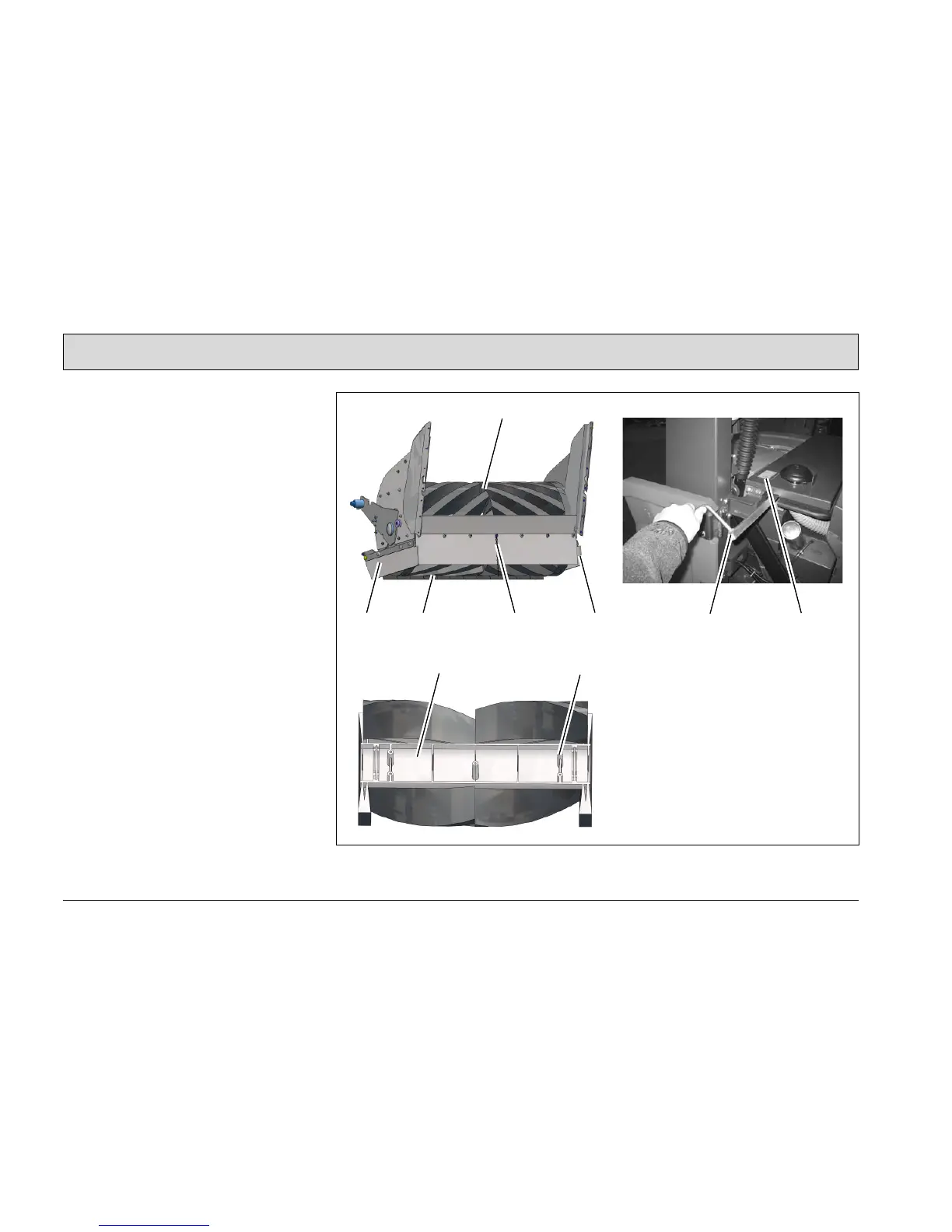

Fig.26
1
2 3 4 5
7
6
8
9
