HAKO 1500 E - Operating elements; Operating panel A

27
Operation
3.2 Operating elements
3.2.1 Operating panel A
1 Not used
2 Not used
3 Control lamp for parking brake
4 Control lamp for service indicator
5 Operating hour counter / Service
code
6 Charge status indicator
7 Not used
8 Button to raise the dirt hopper
9 Button to pivot the dirt hopper for
emptying
10 Button to pivot the dirt hopper back
11 Button to lower the dirt hopper
12 Button for the filter agitation system
with control lamp
13 Button for the suction turbine
14 Button for the rotary brush
15 Button for the rotary brush and side
brush

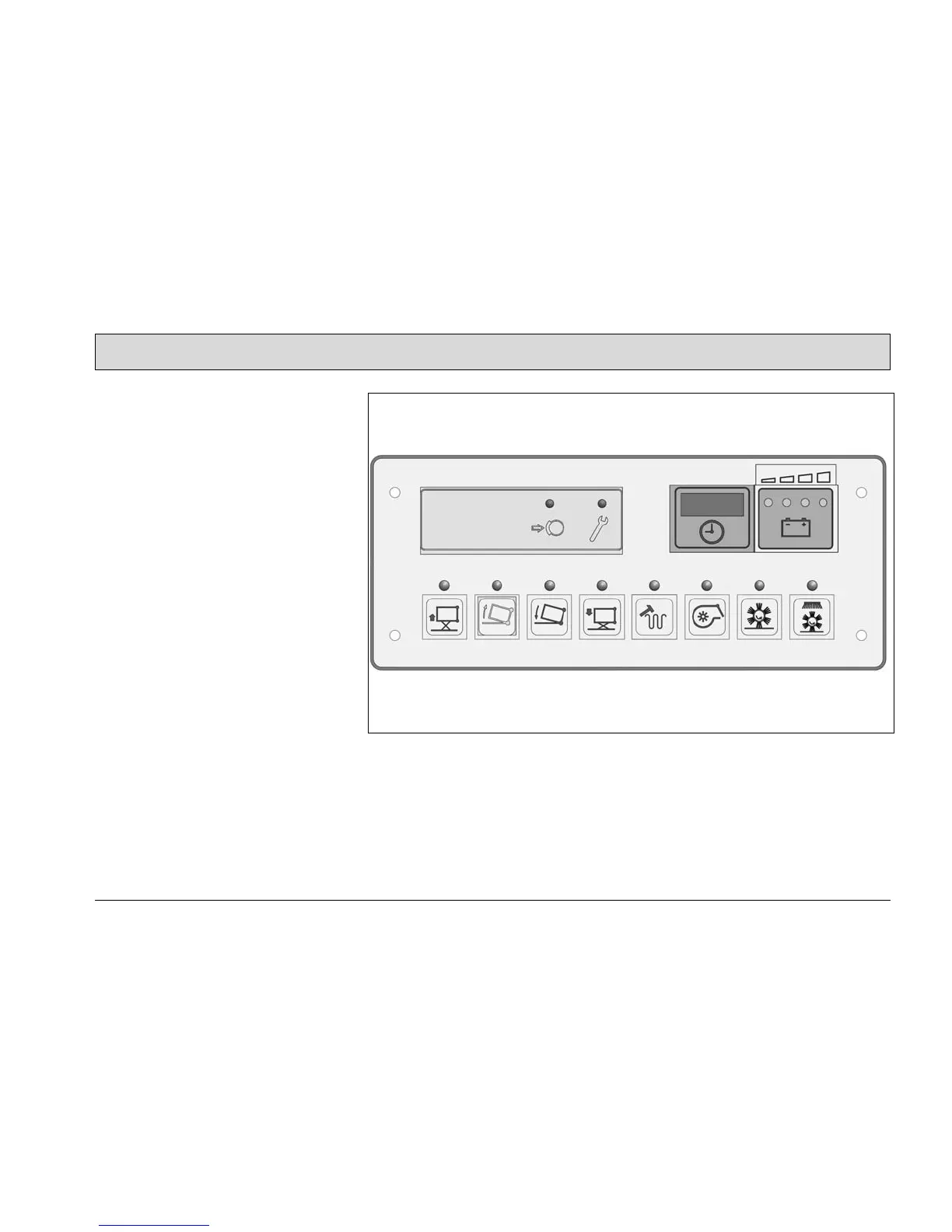

Fig.10
3 4 5 6
8 9 10 11 12 13 14 15
