Hamilton HTK - Coin Mechanism

Coin Mechanism
• Select
• Select
• Select

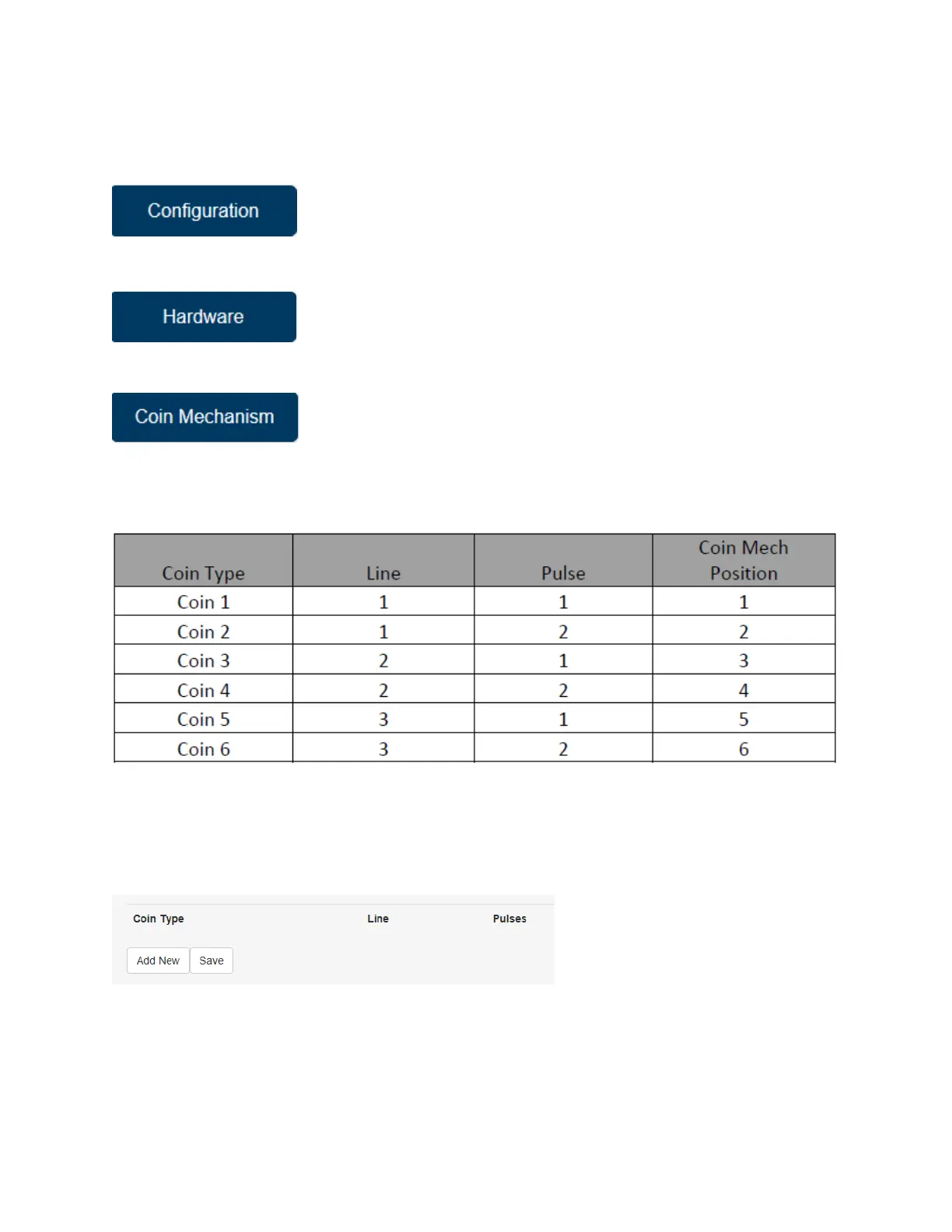

Follow the chart below to program:
Pay table reference
The HTK contains three separate lines for programming. Line (1) refers to positions 1 and 2 on the IDX
coin mech, line (2) refers to positions 3 & 4 on the IDX coin mech and line (3) refers to positions 5 & 6 on
the IDX coin mech. Each line recognizes (1) pulse or (2) pulses from the IDX.
Click “Add New”
