Bill Dispenser
• Select
• Select
• Select
• Select

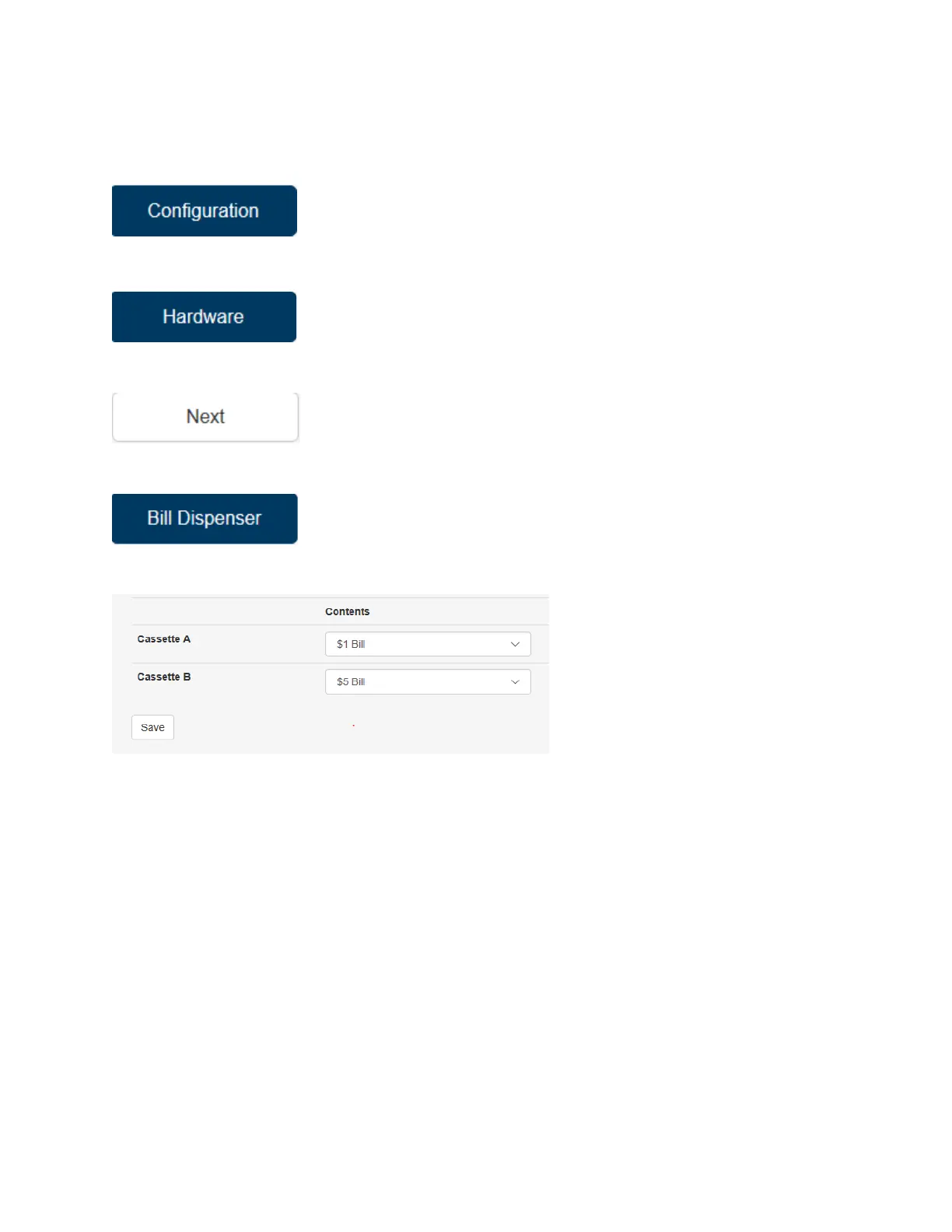

The screen should look like this:
Cassette A: Using the pull down, you can choose what will be dispensed from cassette A. choosing none,
will disable the cassette. Choices will differ between regions.
Cassette B: Using the pull down, you can choose what will be dispensed from cassette B. choosing none,
will disable the cassette. Choices will differ between regions.
*NOTE: If you wish to dispense a Tokenote, they must first be set up in order to see it as an option
here. See the Tokenote section of this manual.
Once you have completed these settings, click activate changes to save the settings. Then click the back
button to the previous page. Continue to click Back until you are at the page you need.
The bill box cassette itself will determine whether it is cassette “A” or “B” by where the magnets are
placed in the cassette. The magnets are located on the inside of the lid of the cassette.
