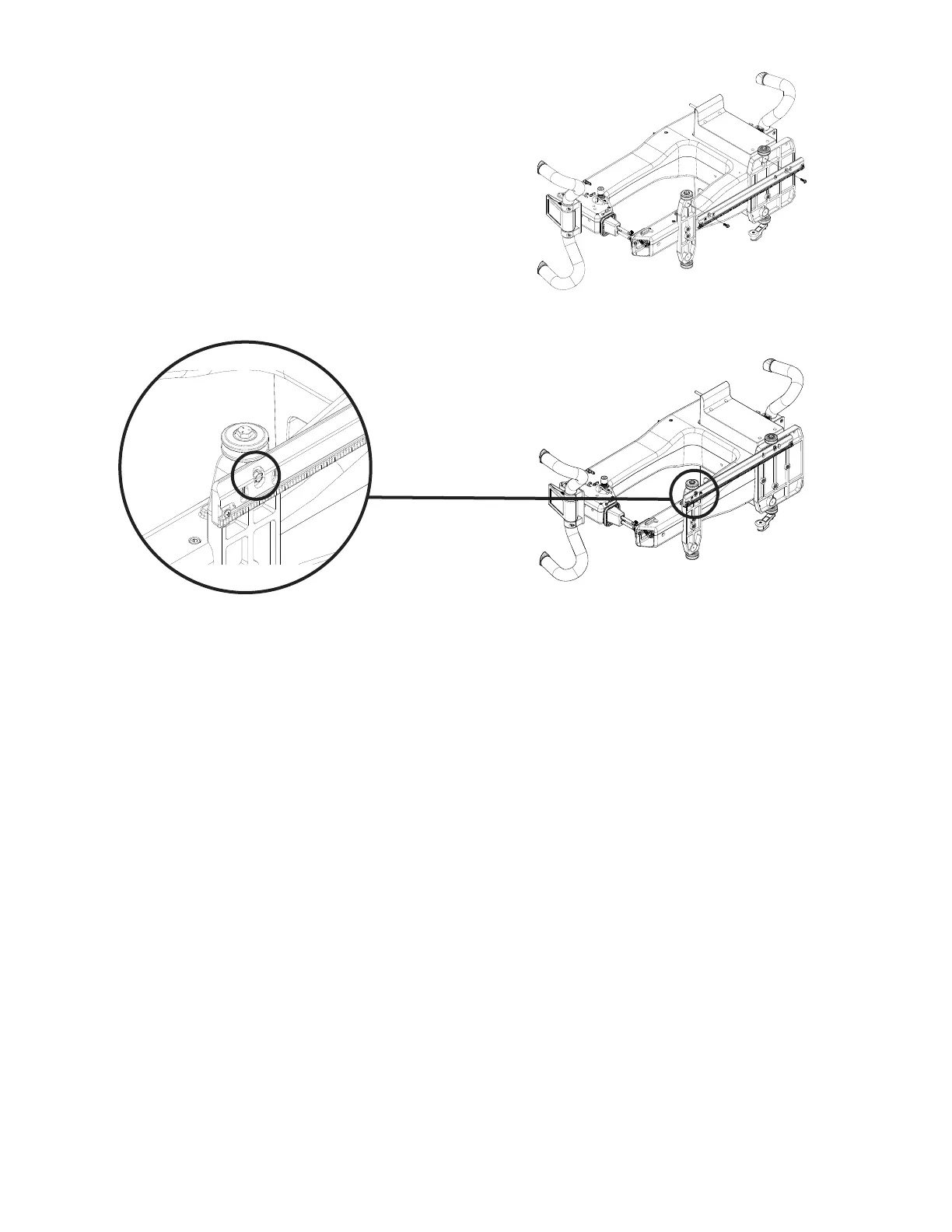

3. Aach the Y‑Rack to the boom of the front and
rear base plates with the two mounng screws.
Orient the blue Flexirack toward the middle of
the machine; the bolt holes should be toward
the outside. Use a at screwdriver or 5/16‑inch
nut driver to ghten the two screws.
 NOTE: The two larger holes in the Y‑rack are
used to fasten it to the machine.
U CAUTION: Be careful not to overghten
the screws as the base plate holes will strip
easily.
Frame Assembly
If you have not already assembled the frame you will need to do so now. Use the assembly instrucons
provided with the frame to assemble the frame.
Table Top Kit Assembly (HQ Lo Frame Only)
If you don’t already have a table top on your frame, you will also need to install the table top now. It will
provide a surface for mounng the X‑rack.
Use the Table Top Kit (see Parts List, item Z) assembly instrucons to install the table top. The instrucons
come with the Table Top Kit but are also included on page 17.
4‑Wheel Track System (HQ Lile Foot Frame Only)
If you are using the Lile Foot Frame, you will need to change the tracks from the 8‑wheel system to the
4‑wheel system.
Use the 4‑wheel Track System (see Parts List, item X) assembly instrucons to track system. The instrucons
come with the 4‑Wheel Track system but are also included on page 21.
