Install the X‑Rack on the HQ Lile Foot Frame
Locate the blue 10‑foot Flexirack (see Parts List,
item B) and the Pro‑Stcher Lite tray assembly (see
Parts List, item E) mounted in the carriage (not
shown in the parts list).
 NOTE: Unroll and straighten the blue
Flexirack, allowing it to relax so it will be
easier to lay it onto the table top.

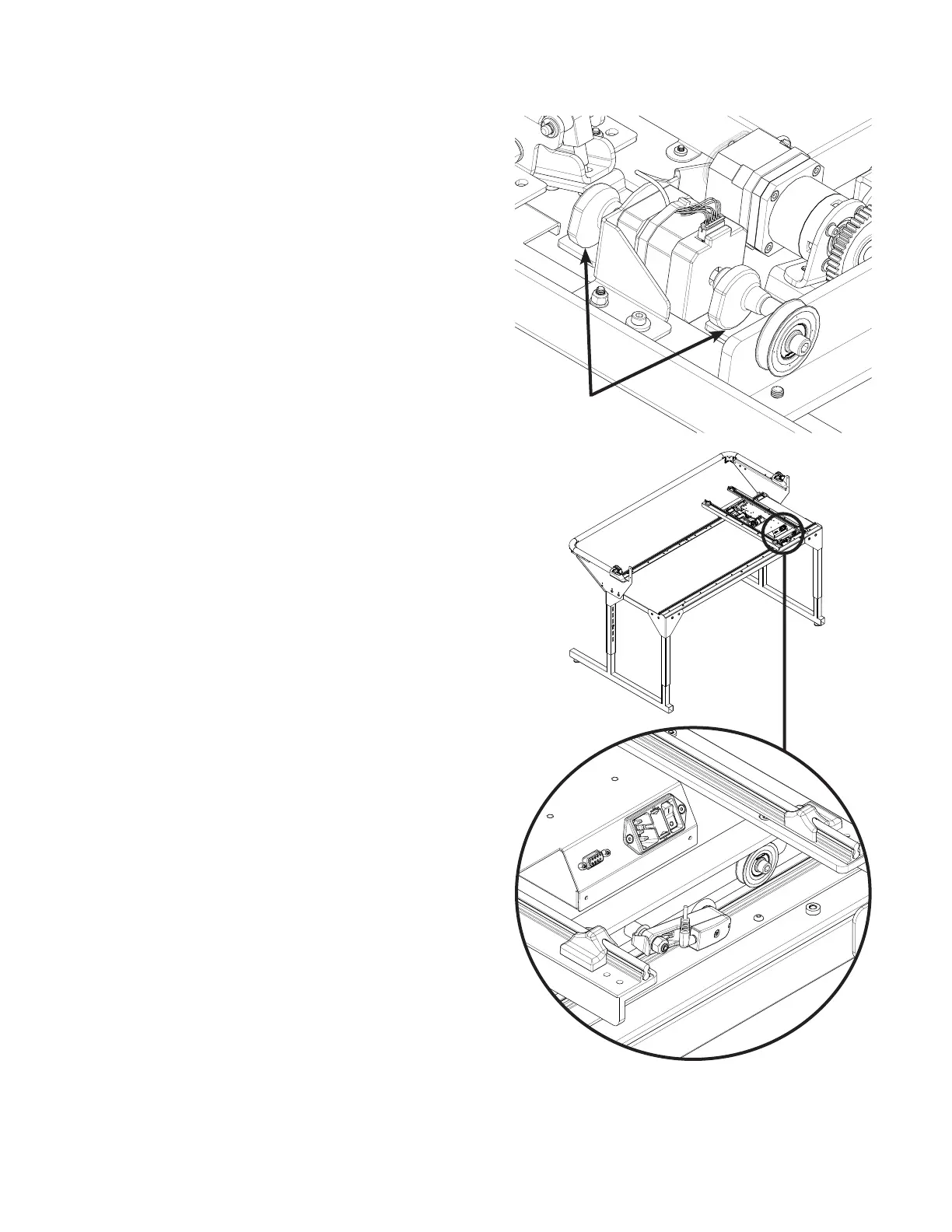

 IMPORTANT: Looking at the boom side
of the tray/carriage assembly, ensure
the black gears are in the engaged
posion. The black gears are engaged
when the round part of the eccentrics
are on the X and Y levers. The black gears
are disengaged when the at part is on the
levers. Rotate the black eccentrics by hand
as needed to engage the black gears.
1. Place the carriage on the frame tracks with the
carriage encoder and power cord receptacle at
the rear of the frame.
engaged round on levers
back
