4 - System setup
114

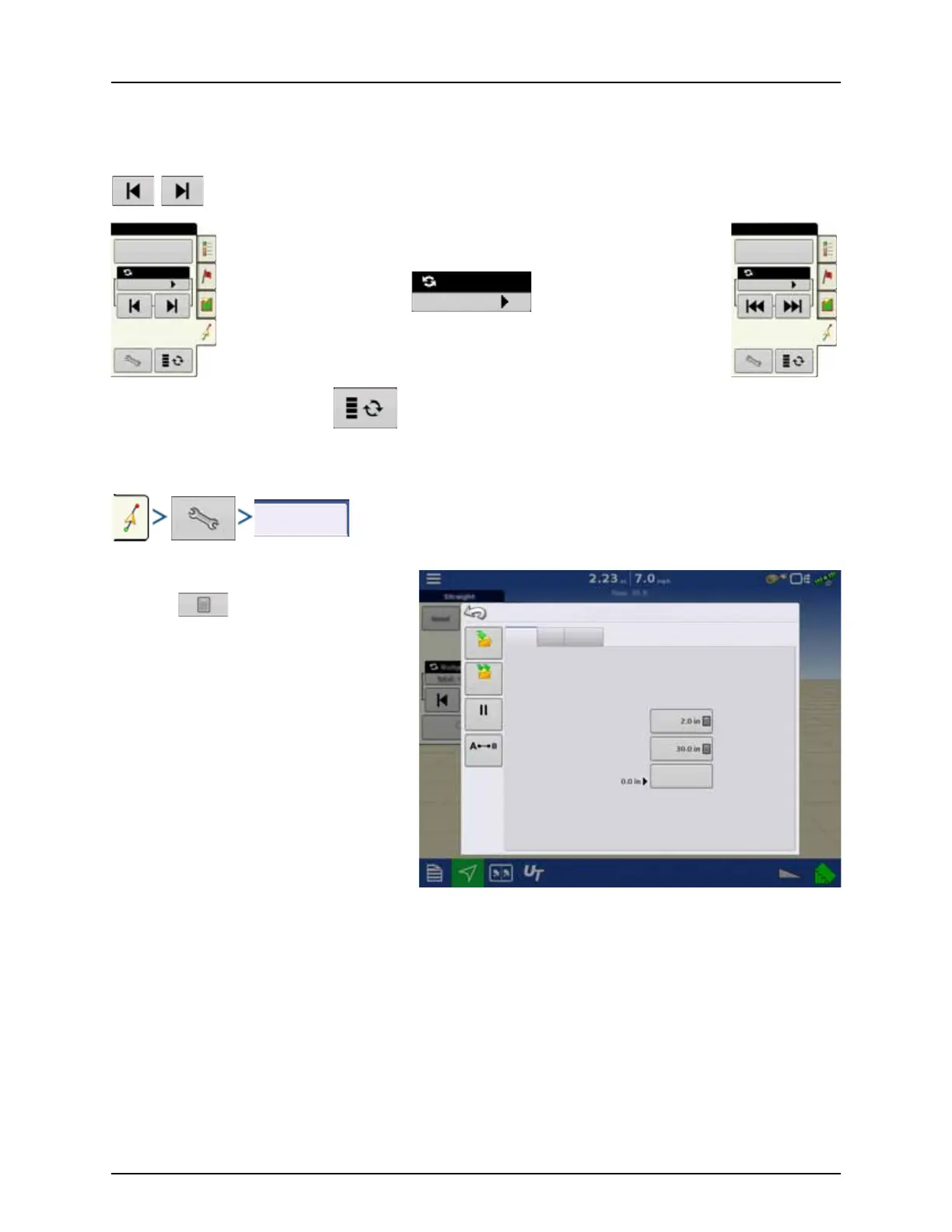

Nudge
÷
NOTE! Only Straight patterns offer two Nudge settings. All other patterns have a single nudge setting.
Nudge allows you to adjust the swaths by a specified distance for the direction of travel.
Use Mapping Toolbox toggle button to switch the menu between Tramline and Nudge on the Mapping
Toolbox, if Tramlines are enabled.
To make adjustments to Nudge settings:
When at the Nudge tab:
• Press to enter a distance for
increment that the swaths will move with
each successive press of the left or right
arrows buttons on the Guidance Tab.
• To clear out the adjustment and go to the
original position, press Clear Nudge.
Screen shows Small and Large increment settings
for Straight path. Other Patterns will only show the
small increment setting.
• Small Nudge (single arrow) shown on left.
• Large Nudge setting (double arrow) shown on right (Straight Patterns Only).
• Use Nudge toggle button to switch between Small and
Large Nudge setting.
Reset
Nudge: 15 in
Total: 0 in
Straight
Reset
Nudge: 30 in
Total: 0 in
Straight
Nudge: 30 in
Total: 0 in
Nudge
Nudge
Shift
Lightbar
Pause
Small Increment:
Clear Nudge
Guidance Options
Remark A
Large Increment:
Total Nudge:
Save
Save
Group
