Page 20
CDi DriveCore Series Operation Manual
Conguring the Amp
Configuring Speaker Tunings
Speaker tunings can be selected when navigating the Guided Setup or at the end of each
channel from the Speaker Tunings/DSP screen (see Figure 21).
Speaker tunings apply DSP settings specific to a particular speaker, making it easy to
optimize a speaker's performance.
To select a speaker tuning for a channel:
1� From the Home screen, press the MENU button.
2� Select the "Configure Amplifier" option from the menu using the ENCODER.
3� Select the "Speaker Tunings/DSP" option from the menu.
4� Scroll to the end of the channel for which you are selecting a speaker tuning—a box
will appear that reads "No Tuning".
5� Press the ENCODER. A list of available speaker tunings will appear on the screen.
6� Use the ENCODER to navigate the list then press the ENCODER to select the matching speaker series. Additional prompts will appear to allow
selection of the specific speaker model and additional options depending on the tuning selected.
7� A confirmation prompt will appear that provides additional information on the tuning. Use the ENCODER to apply or cancel the selection.
8� Repeat for any additional channels.
9� When done, select "Done" at the bottom of the screen.
10� The screenshot below shows an example of how the Home screen will look after speaker tunings have been configured.
See "Conguring Speaker Tunings in Audio Architect" on page 41 for information about configuring speaker tunings in Audio Architect.

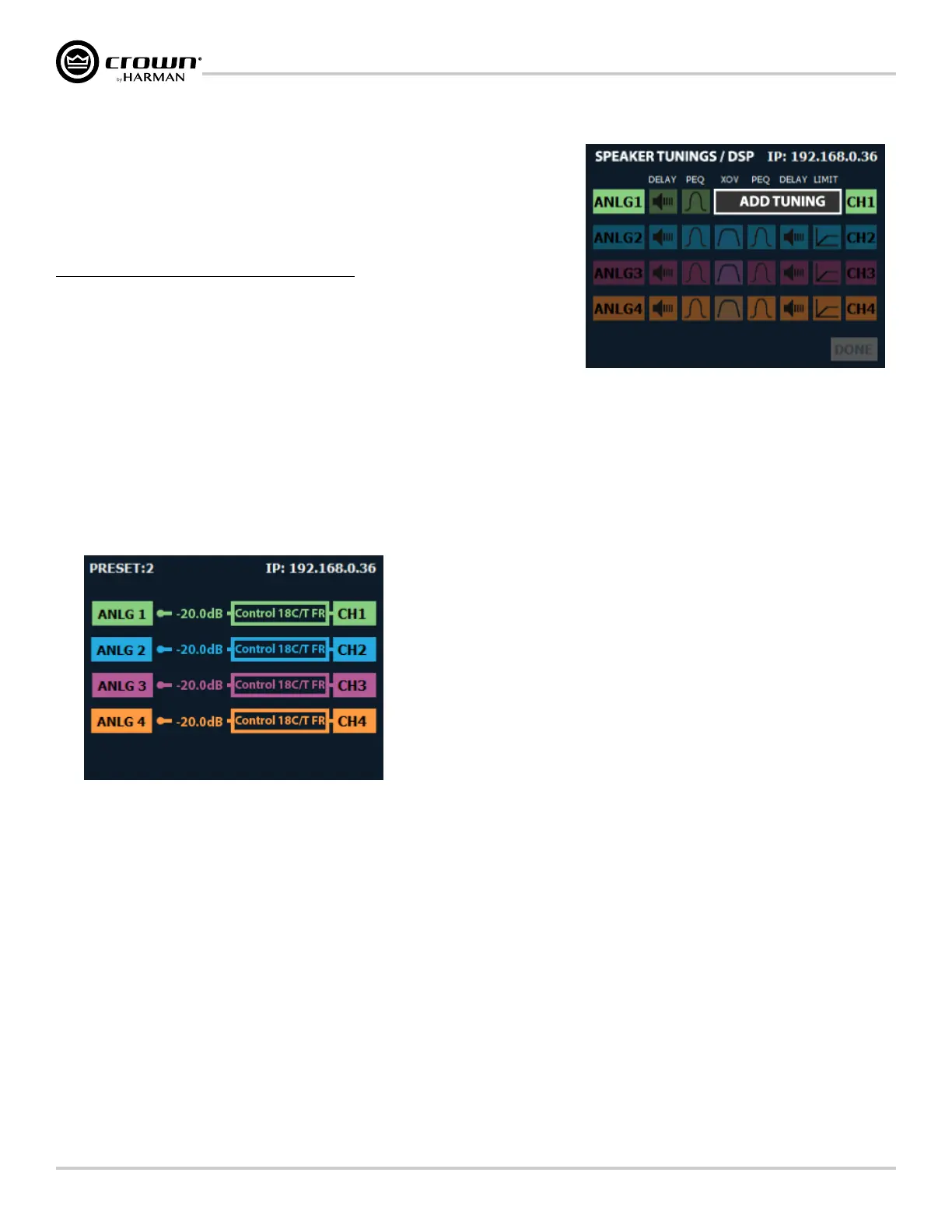

Figure 21: Selecting a speaker tuning
