Device Presets
Device Presets
Device presets allow configuration, DSP, channel assignment, gains, as well as other settings to be stored for later recall. A device preset can be used to
configure the amp for a specific application and speaker model. For example, you might use one device preset that optimizes the amp’s DSP for a JBL bi-
amplified speaker setting. Or, you might use a device preset that sets up the DSP for a stereo pair of loudspeakers of your choice. Subtle changes can also
be made between device presets, such as a change of input channel assignments. Device presets can be stored within the amplifier or backed up to a PC
using Audio Architect.
Preset 1 is the factory default device preset and cannot be overwritten. It sets up the amplifier for pass-thru operation with no DSP features enabled. Presets
2-20 are user device presets and can be overwritten.
The following bullets outline which settings are stored to device presets and which are not:
Settings Stored to Device Presets
• DSP Settings
• Signal Generator Settings
• Levels
• Mutes
• Internal Amp Wiring (Y'ed inputs, dual-mono/bridge mode)
• Input Source Assignments (analog and BLU link)
• Amp Gain Mode
• Output Mode (Low Z, High Z)
• BLU link Output Assignments
• GPIO Manual Aux Output Setting (available in Audio Architect)
Settings NOT Stored to Device Presets
• Front Panel Lighting/Display Options
• Front Panel Security
• Network Settings
• BLU link Sample Rate
• BLU link Mastership Priority
Saving Device Presets
To save the current settings as a device preset from the front panel:
1� From the Home screen, press the MENU button.
2� Select the "Configure Amplifier" option from the menu using the ENCODER.
3� Select the "Save Preset" option.
4� Select "YES".
5� Select the Preset ID to which you wish to save the preset.
6� An on-screen keyboard will appear, allowing you to name the preset. Select "Done"
when done.
7� Press the ENCODER to save the preset.
NOTE: Any unsaved settings will be retained in the amplifier after a power cycle. However,
settings should be saved before loading another device preset if you wish to recall them at a
later time, otherwise settings will be lost.
For information on saving device presets in Audio Architect, see "Main CDi DriveCore Control Panel" on page 34.

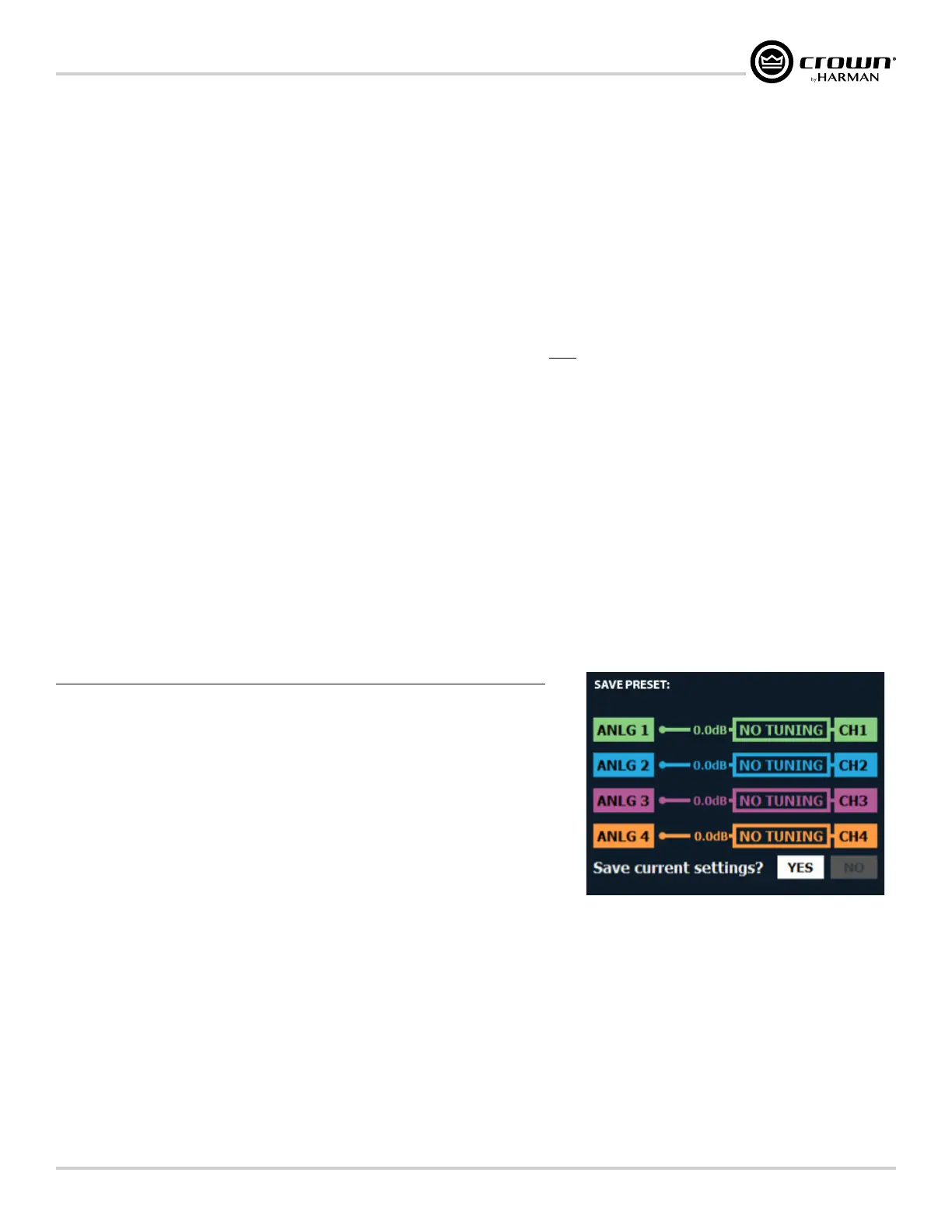

Figure 76: Saving a device preset
