Configuring Output Fader Linking
The Output Fader Linking screen (see Figure 22) allows the amplifier's output channel
levels and mutes to be linked for ganged operation.
To edit the Output Fader Linking settings:
1� From the Home screen, press the MENU button.
2� Select the "System Settings" option from the menu using the ENCODER.
3� Select the "Output Fader Linking" option from the menu, then press the ENCODER.
4� Turn the ENCODER to select the desired option, then press the ENCODER to toggle
whether the option is enabled (checked) or disabled (unchecked).
5� When done, use the ENCODER to select "Done" at the bottom of the screen.
NOTE: The output level faders can also be linked using Audio Architect. See"Main CDi
DriveCore Control Panel" on page 34
for more information.
Available options:
• Link Ch1 and Ch2
Links channel 1 and channel 2 output level faders for ganged operation.
• Link Ch2 and Ch3
Links channel 2 and channel 3 output level faders for ganged operation. This option is only available in 4-channel amp models.
• Link Ch3 and Ch4
Links channel 3 and channel 4 output level faders for ganged operation. This option is only available in 4-channel amp models.
TIP: Checking multiple checkboxes allows adjacent channels to be linked. For example, checking the "Link Ch1 and Ch2" checkbox and the "Link Ch2
and Ch3" checkbox will link channels 1, 2, and 3 together. Checking all checkboxes will link all channels together.

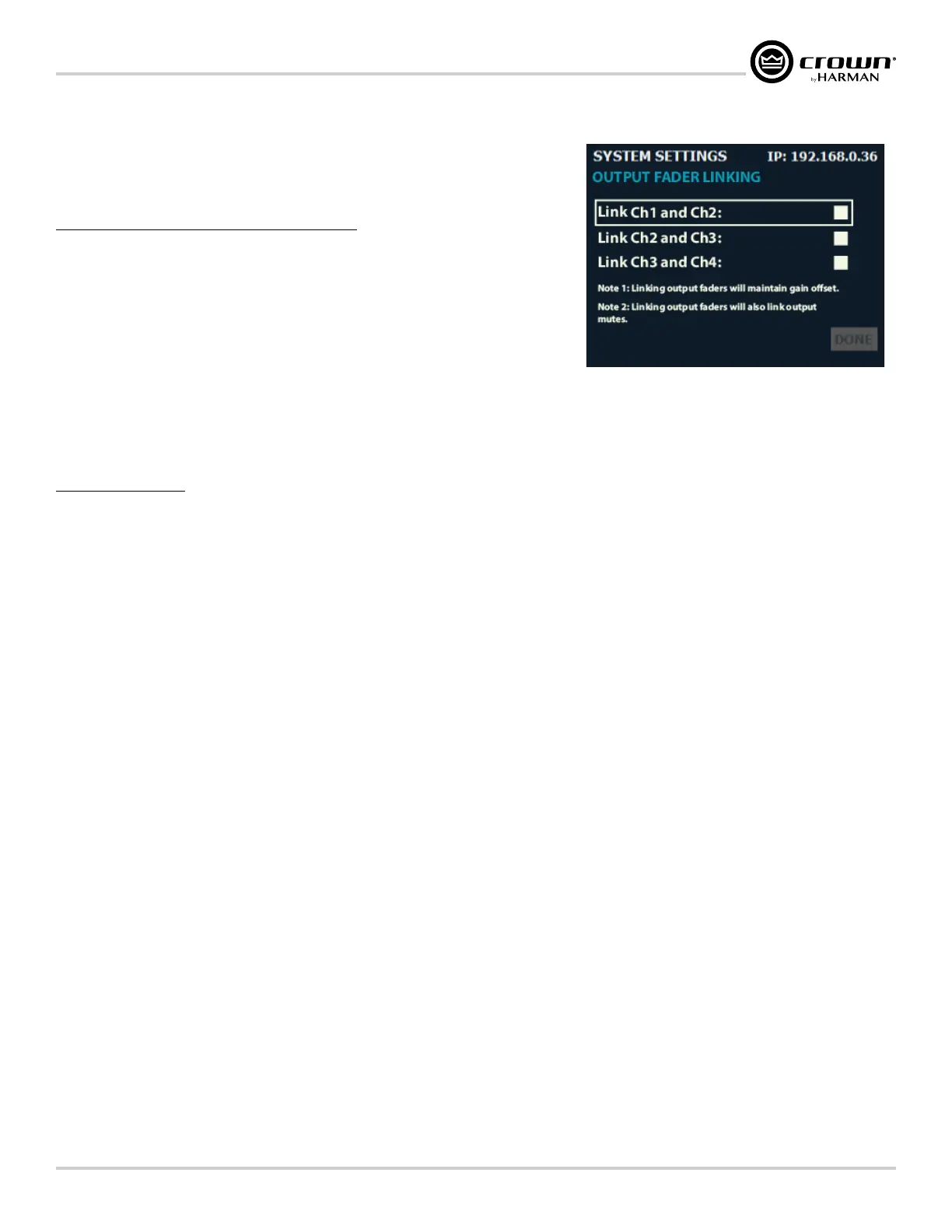

Figure 22: Output Fader Linking screen
