CDi DriveCore Series Operation Manual
Using BLU link
OUTPUT
BLU linkIN OUT
BLU linkIN OUT
BLU linkIN OUT
OUTPUT
BLU linkIN OUT
BLU linkIN OUT
BLU linkIN OUT
OUTPUT
BLU linkIN OUT
BLU linkIN OUT
BLU linkIN OUT

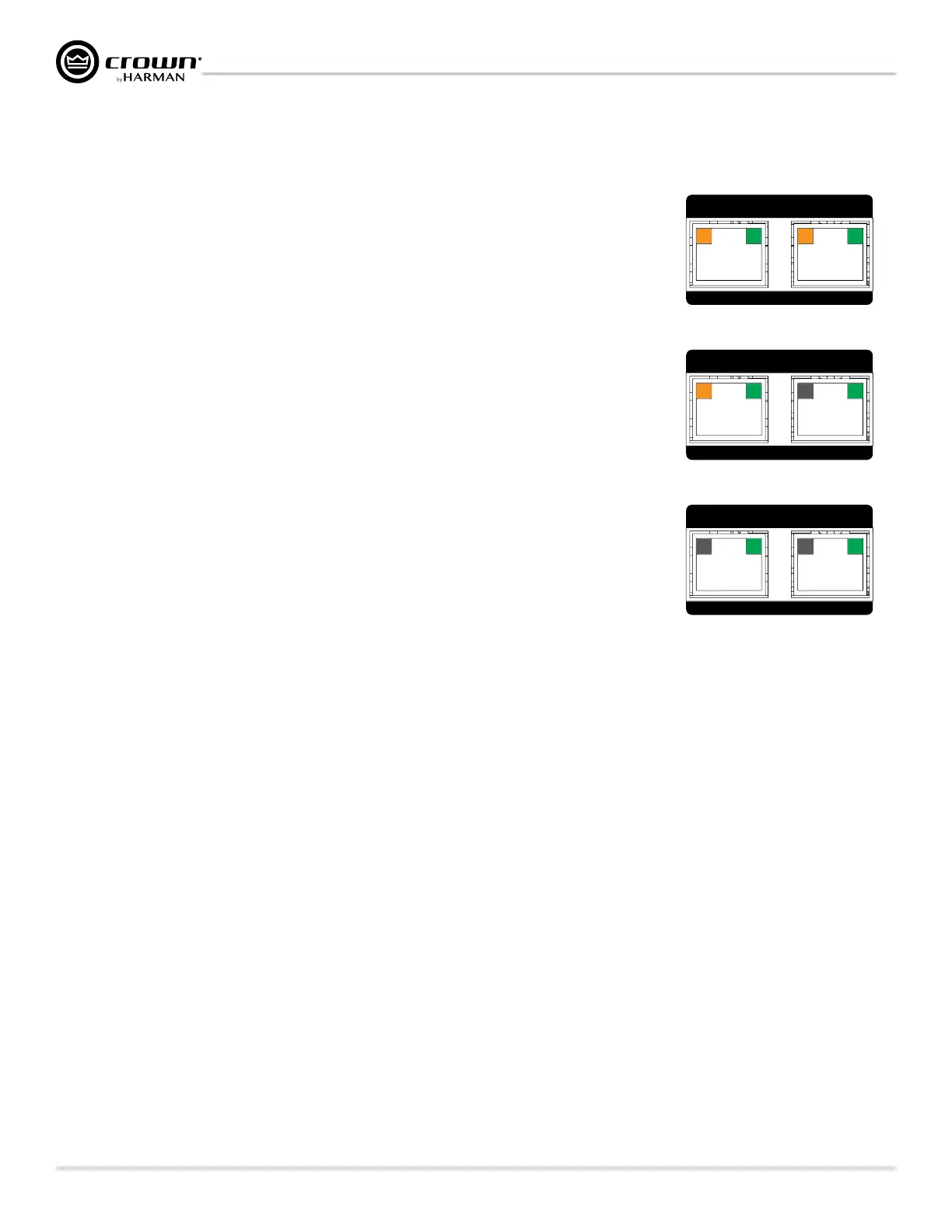

BLU link Port LED Indicators
Each BLU link port has LEDs that indicate the following:
Both Yellow LEDs On
This indicates the device is the BLU link master (meaning it's providing the clock for the entire BLU link
system).
The green LEDs light to indicate the port has established a link with the BLU link bus. If there are no cables
connected, the green LEDs will not light.
One Yellow LED On
This indicates the device is synced
to the BLU link clock received from the connected device.
The green LEDs light to indicate the port has established a link with the BLU link bus.
No Yellow LEDs On
This indicates the device is not receiving BLU link clock and will not pass audio. This either indicates the IN
and OUT ports are swapped (an OUT port is connected to an OUT port and an IN port is connected to an IN
port), or there is a mismatch between the BLU link sample rates of the amplifier and the connected device(s).
See "Conguring BLU link Settings" on page 22 for information on configuring the amplifier's
BLU link sample rate.
The green LEDs light to indicate the port has established a link with the BLU link bus.
WARNING: Only connect to networks that remain inside the building.
