Page 38

CDi DriveCore Series Operation Manual

Using HiQnet Audio Architect

Conﬁguring BLU link Clock

The Advanced Settings panel can be accessed by clicking the Advanced Settings button from either

the Input Conﬁguration panel (see Figure 40) or from the Output Conﬁguration panel (see Figure 43).

From the Advanced Settings panel, BLU link sample rate and mastership clock priority can be set. This

panel also displays clock sync status and BLU link input/output connection status. Input/output errors

and corrected errors are also displayed and can be reset from this panel. For more information on these

parameters, see "Conguring BLU link Settings" on page 22 and "BLU link Status" on

page 62

Conﬁguring BLU link Outputs

Clicking the Output Conﬁguration button from the Input Selector panel (see Figure 38) opens the BLU

link Output Conﬁguration panel (see Figure 43). From this panel, audio source signals can be routed

("on-ramped") back onto the BLU link bus as follows:

• Pre-processed audio from the inputs can be routed to the BLU link bus.

NOTE: The audio from the analog inputs will still pass through the ampliﬁer input gain stage. This

means the signals will be affected by the Gain Mode setting and the Input Level faders located in the

Input Conﬁguration panel (

Figure 40) before being sent out to the BLU link bus.

• Amp output channels can be routed to the BLU link bus.

NOTE: The output audio is bussed from a point at the end of the

amp's signal processing chain and includes the Transducer Thermal

Limiter. This is effectively analogous to taking the audio from the

physical output of the ampliﬁer, which feeds the loudspeaker, and

routing it onto the BLU link bus.

To route ampliﬁer audio onto the BLU link bus, select the audio source for

each output channel using the Audio Source dropdown menus, then select

which BLU link channel to route each signal to using the BLU link Channel

dropdown menus.

NOTE: Audio Architect also provides the traditional BLU link Output Channel Assignment window (

Figure 44) for routing BLU link audio onto the BLU

link bus. Either method can be used to assign BLU link output channels.

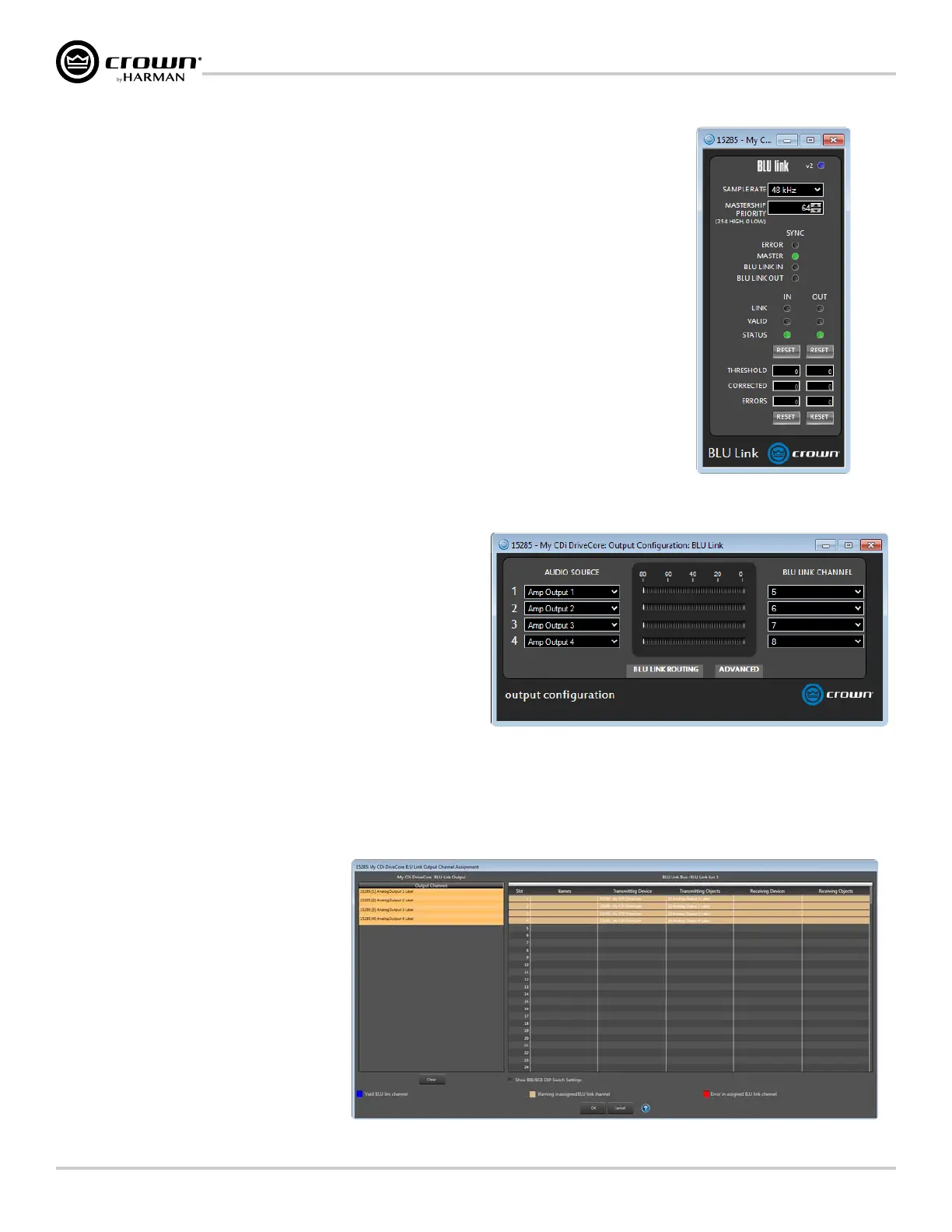

Figure 42: Advanced Settings panel

Figure 43: BLU link Output Conﬁguration panel

Figure 44: BLU Link Output Channel Assignment window
