Chapter 1 Electra 9200 Overview Encoder Description
© 2015 Harmonic Inc. All rights reserved. 4 Electra 9200, Rev O
NMX™ Digital Service Manager manages encoders that form part of a delivery network and
supports full configuration of the Electra 9200 platform, ports, services, and PSI, as well as
alarm management. The NMX client runs locally and/or from remote PCs. For more
information, see Operating with NMX Digital Service Manager.
Front and Back Panels
The following illustrations show the front and back panels of an encoder without any optional
modules.

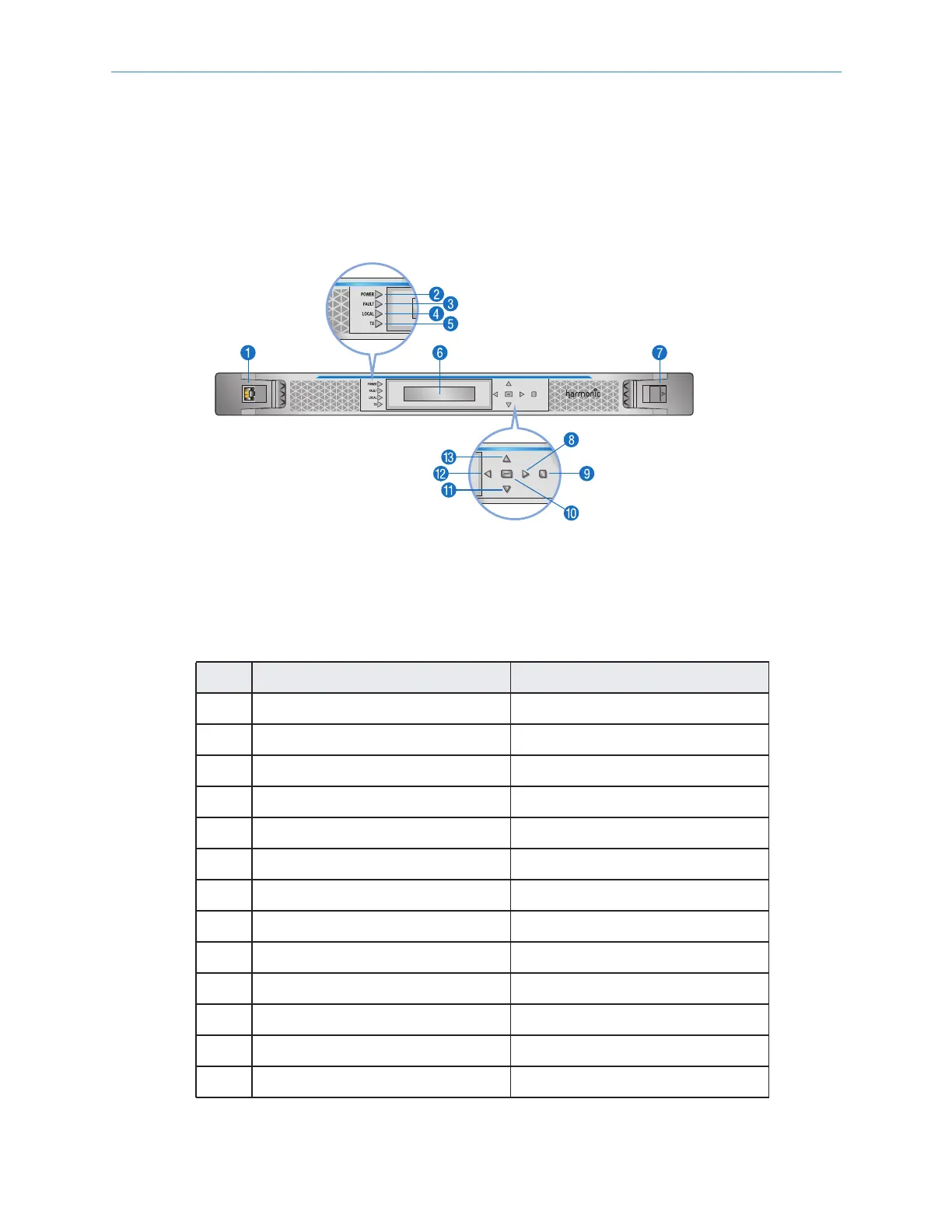

Figure 1–1: Front Panel
Table 1–1: Front Control Panel and Bezel
Item Feature Function
1 Ethernet service port Ethernet service connection
2 LED—Power Power indicator
3 LED—Fault Fault indicator
4 LED—Focal Local Control indicator
5 LED—TX Transmitting Indicator
6 LCD panel Status indicator
7 Latch Front panel latch
8 Right key Menu right
9 ESC key Menu escape
10 ENTER key Menu Select
11 Down key Menu down
12 Left key Menu left
13 Up key Menu up
