Chapter 1 Electra 9200 Overview Optional Modules
© 2015 Harmonic Inc. All rights reserved. 5 Electra 9200, Rev O

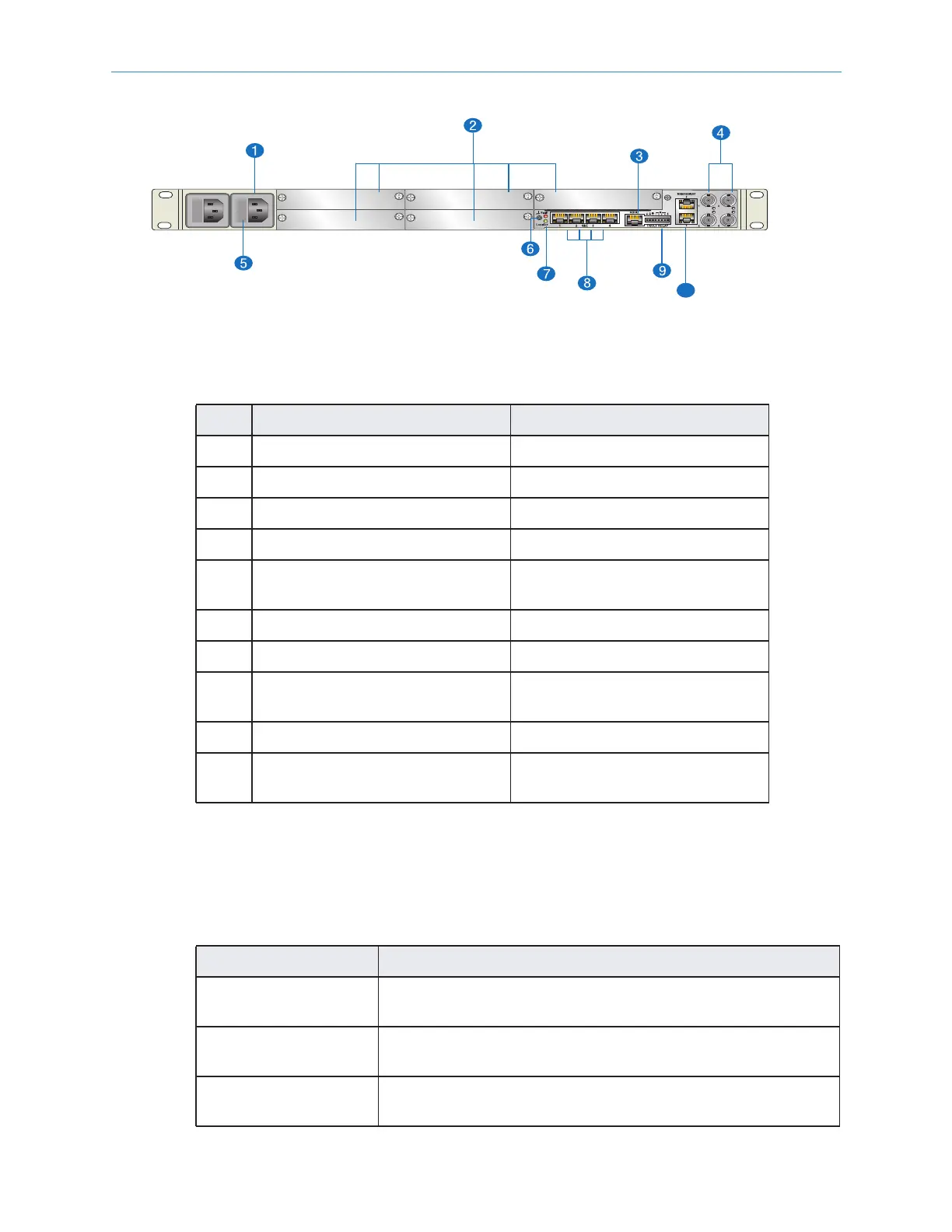

Figure 1–2: Back Panel
Table 1–2: Back Panel
Item Feature Function
1 AC power Power
2 Optional slots I/O module slots
3 Serial port Serial data input
4 Optional SDI ports SD and HD digital video input
5 Fuse (available only on Electra
9200 single power supply model)
Fuse protection
6 Ground Ground/Bond Connection
7 LEDs Fault and loc ator LEDs
8 Gigibit Ethernet ports—signal Ports 1 and 2: Input
Ports 3 and 4: Output
9 Fault relay port Contact closure fault indication
10 Gigibit Etherner ports—
management
Network Management
Optional Modules
The Electra 9200 encoder can accept several optional Input/Output modules, as described in
Table 1–3.
Table 1–3: Optional Modules for the Electra 9200
Optional Module Description
IOM-RAC2 (IOM-RAC2
Module
Audio module that can accept MPEG-2 TS and SDI inputs
AHC-RAC (AHC-RAC
Module)
Audio module that can accept AES3/S/PDIF inputs
AHC-561 (AHC-561
Module)
Audio module that can accept AES3/S/PDIF inputs
Slot 1 Slot 2
Slot 3 Slot 4
Slot 5
10
