Chapter 9
ATSC RF Input Module
The RF Input Module is a four-channel ATSC 8VSB receiver. It receives four independent
ATSC 8VSB signals on the inputs and outputs four MPEG-2 Transport Streams over the
chassis internal bus to one or more FLEX decoding modules. The RF Input module does not
support analog demodulation.
The RF Input Module can be managed by NM X.
NOTE: The four inputs are enabled by optional firmware licenses.
RF Module Specifications
Table 9–1 provides the specifications for the RF module.
Environmental and Physical
Compliant with ROHS Directive 2002/95/EC. Refer to the encoder environmental
specifications for additional information.
Figure 9–1 displays the module (rear panel).

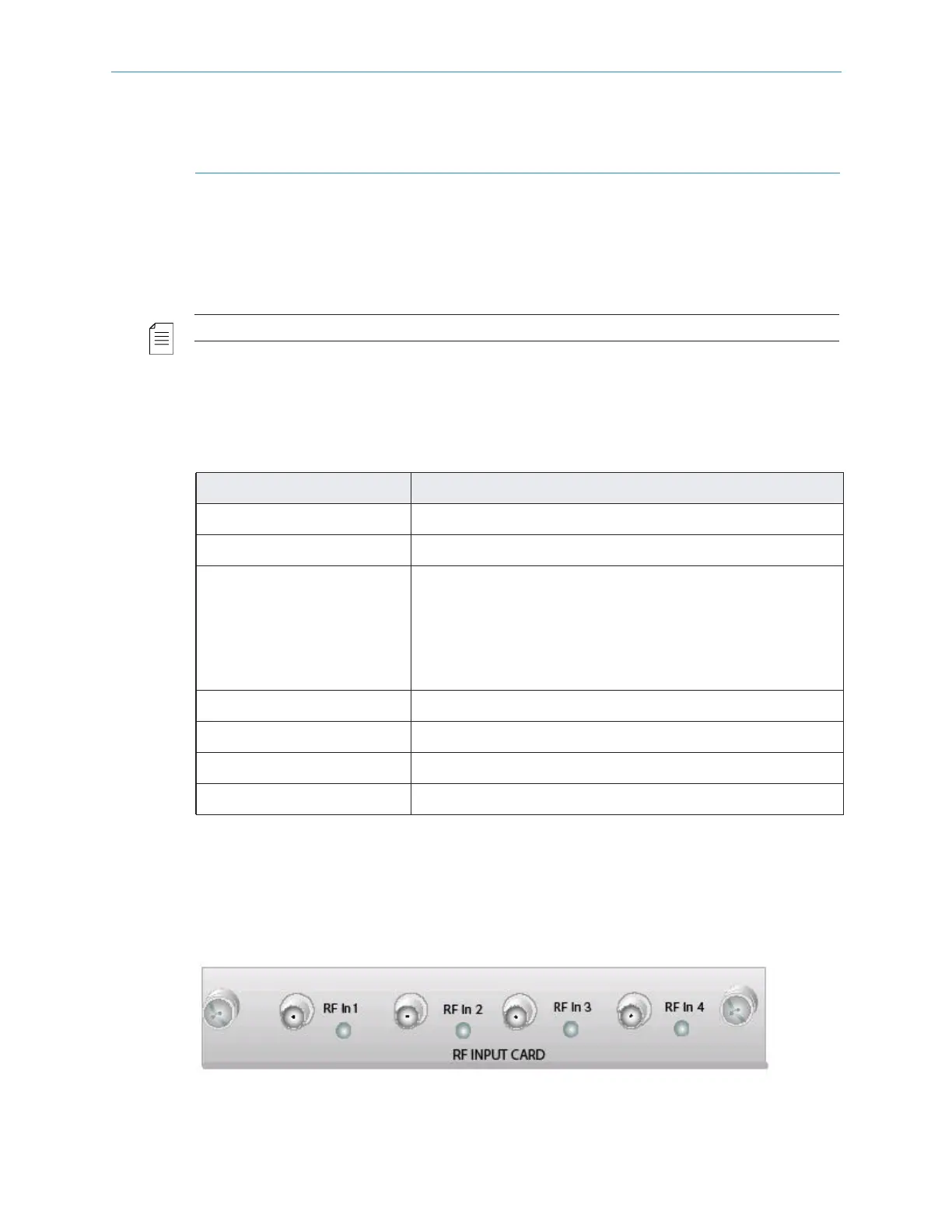

Figure 9–1: RF Input Module
Table 9–1: RF Module Specifications
Feature Support
Connectors 4x Type F, 75 per IEC 60169-24
Modulation 8–VSB (ATSC compliant)
Tuning Range VHF/UHF (Channels 2–59)
Note: The tuning range is limited to Channels 2 to 59 by
software (and SCTE 02-2006), per the FCC/Industry
Canada decisions to release channels 60 to 69 for public
safety use.
Sensitivity –83dBm/6 MHz
Dynamic Range > 80dB
MPEG Format 188 Bytes per TS packet
MPEG-2 TS MPTS and SPTS
